Toyota CAMRY 仪表板和手套箱 — Figure 5501

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 1 images and 30 PNC and OE references.

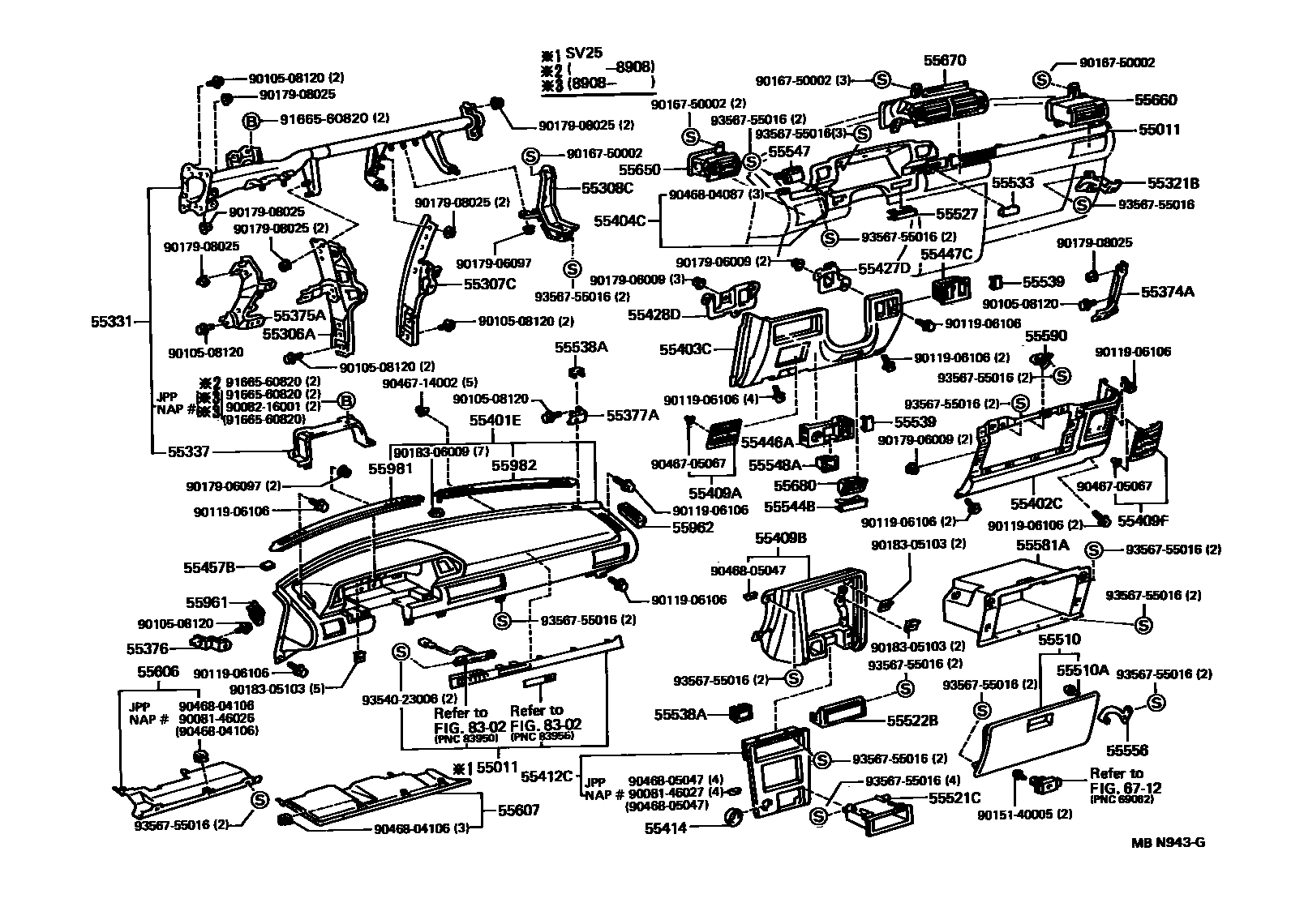

Toyota CAMRY 仪表板和手套箱 EPC diagram — MBN943G
仪表板和手套箱 — MBN943G (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
55011Dashboard safety pad trim sub-assembly55011-03010
55306AInstrument panel No. 1 bracket sub-assembly55306-03010
55307CInstrument panel No. 2 bracket sub-assembly55307-03010
55308CCenter instrument panel bracket sub-assembly55308-32011
55321BInstrument panel bracket No. 155321-32020
55331Dashboard reinforcement55330-03010 · 55330-32051
55337Dashboard sub-reinforcement55337-03010 · 55337-32020
55374AInstrument panel lower right mounting bracket55374-32020
55375AInstrument panel lower left mounting bracket55375-32030
55376Instrument panel mounting bracket No. 155376-32030
55377AInstrument panel mounting bracket No. 255377-32030
55412CCenter instrument cluster No. 1 decorative panel55412-03010
55414Cigarette lighter hole frame55477-03010 · 55477-32030
55427DInstrument panel No. 1 decorative panel lower fixing part55427-32010
55428DInstrument panel No. 2 decorative panel lower fixing piece55428-32010
55446ANo. 1 switch hole seat55446-03010
55447CNo. 2 switch hole seat55447-03010
55457BDashboard safety pad spacer55457-03010
55510ACushion (for glovebox lid)90080-54001
55521Cstereo system hole cover55521-03010
55522BRadio tuner opening cover55522-03010
55533automatic clock hole cover55533-03010 · 55533-32010
55538ACooler switch hole cover55538-16020
55539Spare switch hole cover55539-03010
55548ADashboard hole cover55548-03010
55556Glove box cover stopper arm55556-20030
55581AGlove box55581-03010
55590Glove box cover lock plate assembly55590-32010
55606Instrument panel No. 1 bottom cover sub-assembly55606-03010
55607Instrument panel No. 2 bottom cover sub-assembly55607-03010
