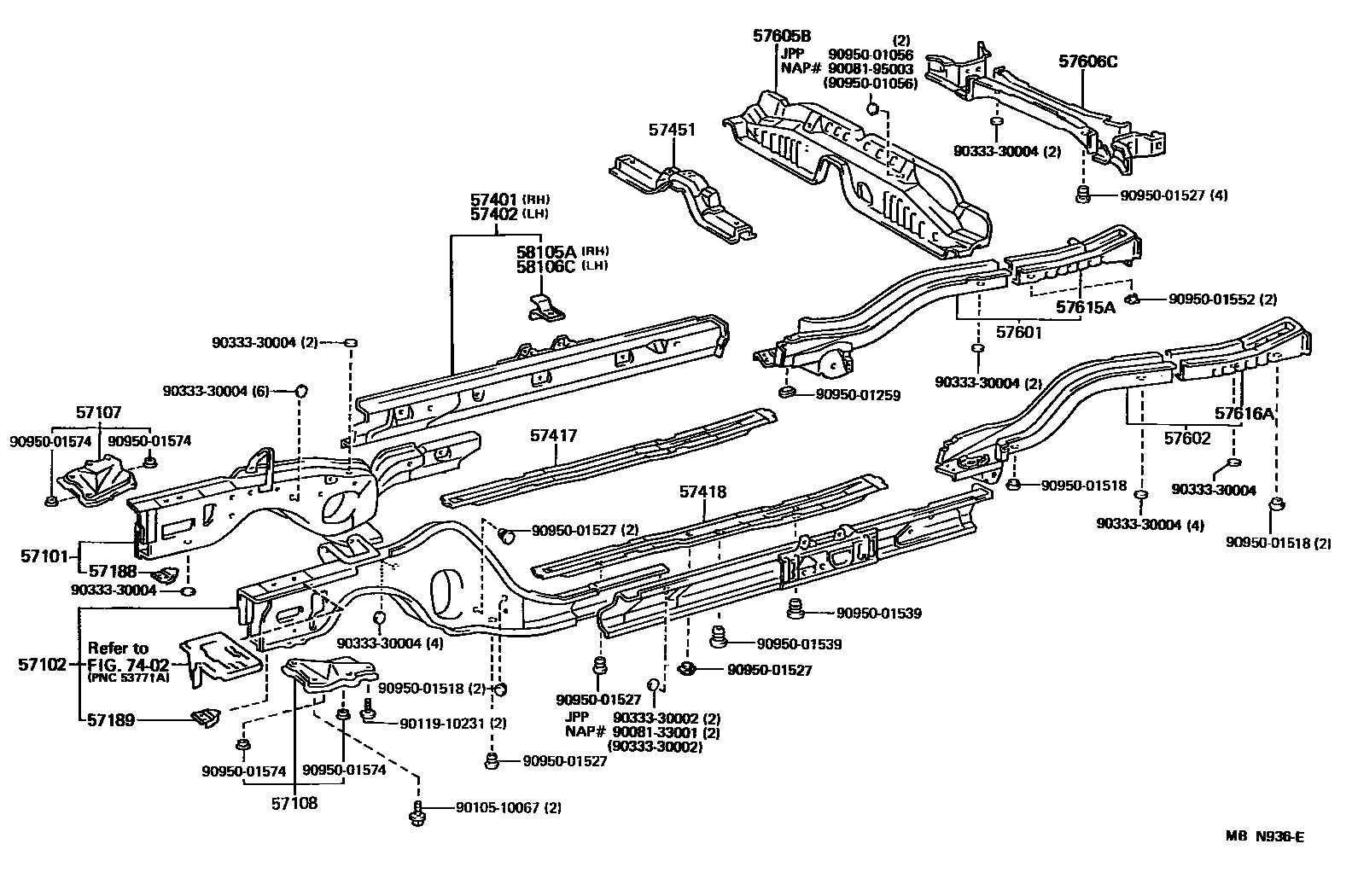

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-03010 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-03010 |
| 57107 | Right support rod bracket sub-assembly | 57107-32020 |
| 57108 | Left support rod bracket sub-assembly | 57108-32020 |
| 57188 | Right front longitudinal beam extension reinforcement | 57188-32030 |
| 57189 | Left front longitudinal beam extension reinforcement | 57189-32030 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-03010 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-03010 |
| 57417 | Front floor lower right reinforcement | 57417-32030 · 57417-32031 |
| 57418 | Front floor lower left reinforcement | 57417-32030 · 57417-32031 |
| 57451 | front floor cross member | 57408-03010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-03010 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-03010 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-03010 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-03010 |
| 57615A | Rear floor right rear longitudinal member | 57615-32906 |
| 57616A | Rear floor left rear longitudinal member | 57616-32912 |
| 58105A | Front right seat outer mounting bracket sub-assembly | 58105-32020 |
| 58106C | Front left seat outer mounting bracket sub-assembly | 58106-32020 |
