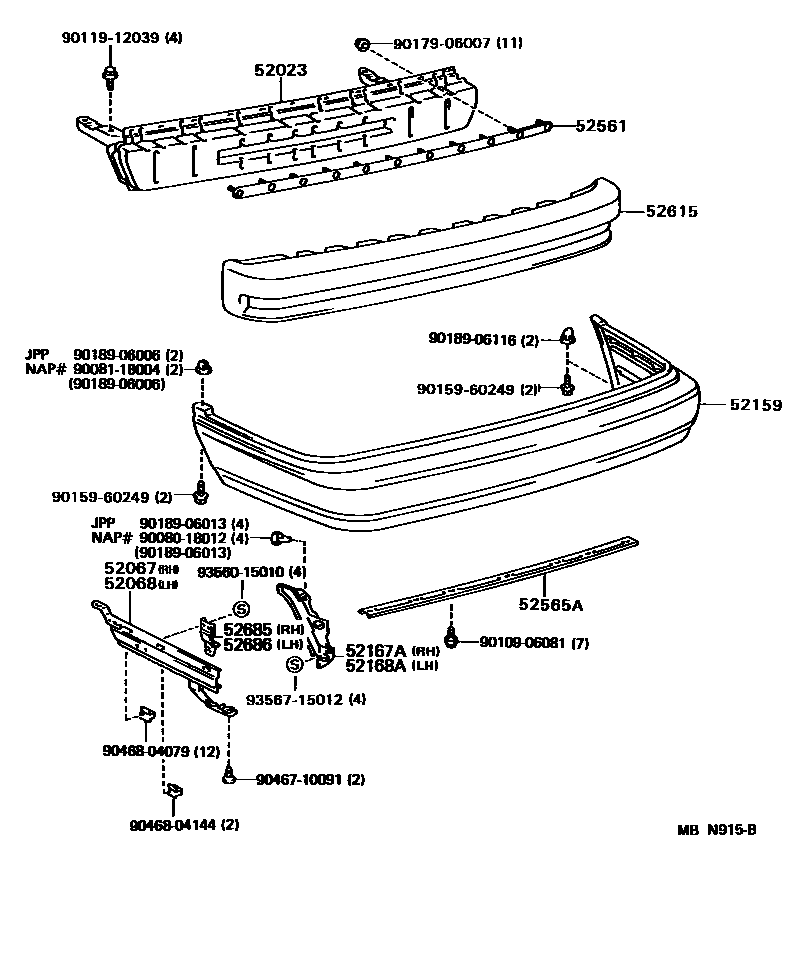

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-03010 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-32010 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-32010 |
| 52159 | rear bumper cover | 52159-03900 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-03010 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-03010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-03010 · 52561-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-03010 |
| 52615 | Rear bumper energy absorber | 52615-03010 |
| 52685 | Rear bumper No. 3 right side bracket | 52685-03010 |
| 52686 | Rear bumper No. 3 left bracket | 52685-03010 |
