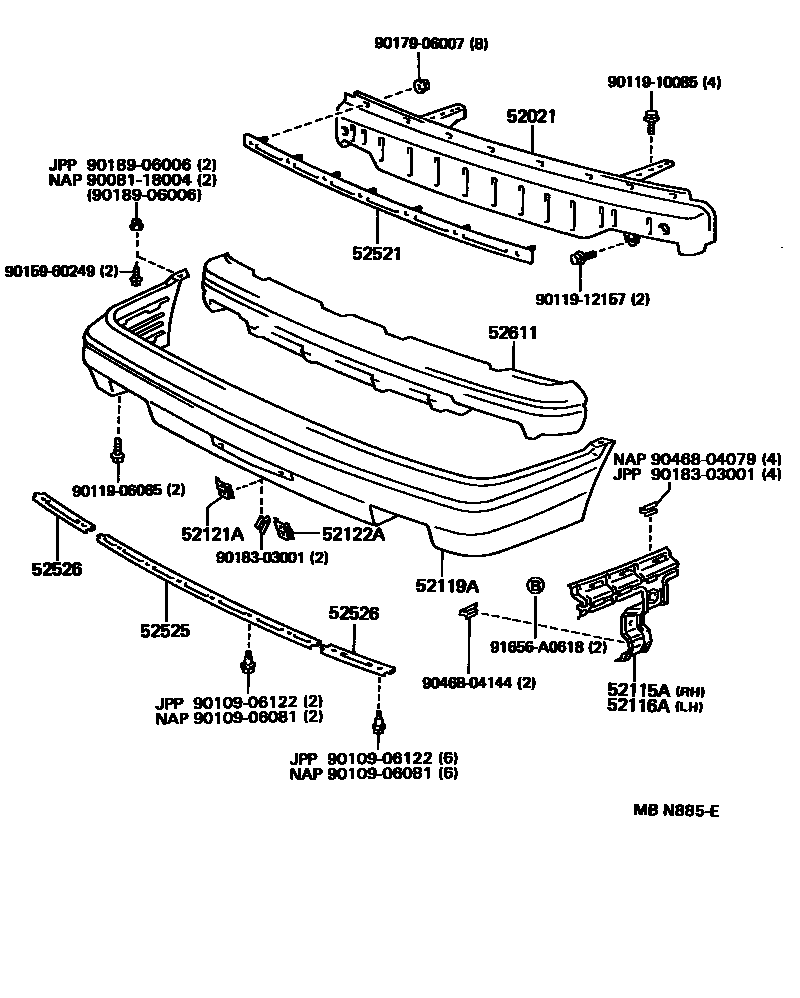

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-03010 |
| 52115A | Front bumper right side bracket | 52061-32030 · 52115-32060 |
| 52116A | Front bumper left bracket | 52062-32030 · 52116-32060 |
| 52119A | front bumper cover | 52119-03900 |
| 52121A | Front license plate right mounting bracket | 52121-32040 |
| 52122A | Front license plate left mounting bracket | 52122-32010 |
| 52521 | Front bumper upper center fixing bracket | 52521-03010 |
| 52525 | Front bumper lower center fixing bracket | 52525-03010 · 52525-32020 |
| 52526 | Front bumper lower side fixing bracket | 52526-03010 · 52526-32040 |
| 52611 | front bumper energy absorber | 52611-03010 |
