Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

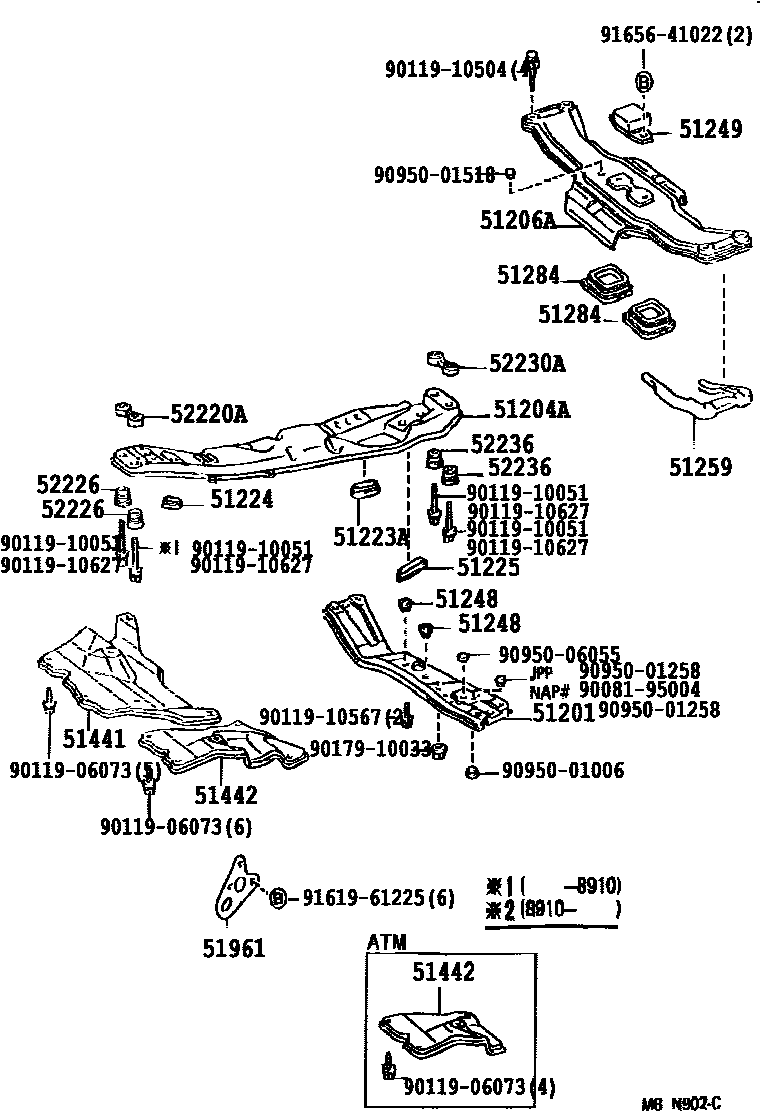

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-32020 |
| 51204A | Engine center mount beam sub-assembly | 51204-32021 · 51204-32022 · 51204-32024 |
| 51206A | Rear suspension cross member sub-assembly | 51206-32010 |
| 51223A | Engine mounting hole cover | 51223-32020 |
| 51224 | Engine mount hole cover No. 2 | 51224-32010 |
| 51225 | Engine mount hole cover No. 3 | 51225-32010 |
| 51248 | Frame cross member spacer | 51248-32010 |
| 51249 | Rear suspension cross member shock absorber | 51249-32010 |
| 51259 | Rear suspension cross member edge protector | 51259-32010 |
| 51284 | Rear suspension cross member hole cover | 51284-03010 |
| 51441 | No. 1 engine bottom cover | 51441-03010 |
| 51442 | No. 2 engine bottom cover | 51442-03010 · 51442-03020 |
| 51961 | No. 1 hook | 51963-32010 |
| 52220A | Fixed buffer pad assembly on front center beam | 52220-03010 · 52220-32050 |
| 52226 | Fixed cushion pad under front center beam | 52226-03010 · 52226-32030 |
| 52230A | Fixed buffer pad assembly on rear center beam | 52230-03010 · 52230-32040 |
| 52236 | Fixed cushion pad under rear center beam | 52236-03010 · 52236-32030 |
