Toyota CAMRY 后鼓式制动器分泵和底板 — Figure 4706

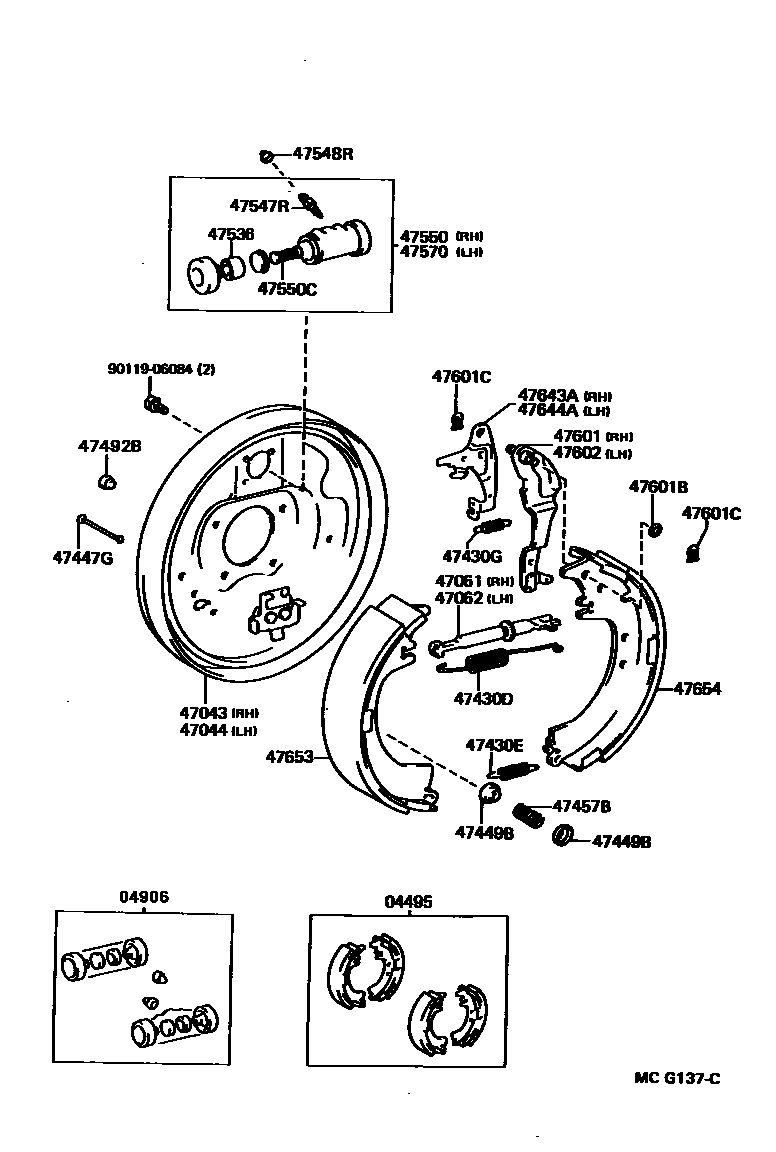

Toyota CAMRY EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-32020 · 04495-32021 · 04495-32050 |
| 04906 | Rear wheel pump cup assembly | 04906-12030 |
| 47043 | Right rear brake base plate sub-assembly | 47043-03010 · 47043-32020 |
| 47044 | Left rear brake base plate sub-assembly | 47044-03010 · 47044-32020 |
| 47061 | Right parking brake shoe push rod assembly | 47061-03010 · 47061-32020 |
| 47062 | Left parking brake shoe push rod assembly | 47062-03010 · 47062-32020 |
| 47430D | Tension spring (for rear brake shoe return) | 90080-50036 · 90080-50037 · 90506-29008 · 90506-29009 |
| 47430E | Tension spring (for rear brake shoe return) | 90080-50035 · 90506-23346 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90080-50034 · 90506-12011 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-03010 · 47447-20030 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-03010 · 47449-30020 |
| 47457B | Compression spring (for rear brake shoe limit spring pin) | 90080-50030 · 90501-18017 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-03010 |
| 47536 | Wheel brake cylinder piston (for rear wheel brake) | 47051-03010 · 47051-22031 |
| 47547R | Bleed plug (for rear drum brake) | 47547-03020 · 47547-22020 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-03010 · 47550-32020 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-03010 · 47509-12010 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-03010 · 47570-32020 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-03010 · 47601-32020 |
| 47601B | Rear parking brake shoe lever gasket | 90080-56006 · 90080-56007 · 90080-56008 · 90080-56009 · 90080-56010 · 90080-56011 · 90564-08150 · 90564-08151 · 90564-08152 · 90564-08172 · 90564-08173 · 90564-08174 |
| 47601C | C-shaped washer (for rear brake) | 90080-20012 · 90213-06013 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-03010 · 47602-32020 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-03010 · 47643-32020 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-03010 · 47644-32020 |
| 47653 | Rear brake shoe friction lining (for front or upper side) | 47651-32030 |
| 47654 | Rear brake shoe friction lining (for rear or lower side) | 47651-32030 |
