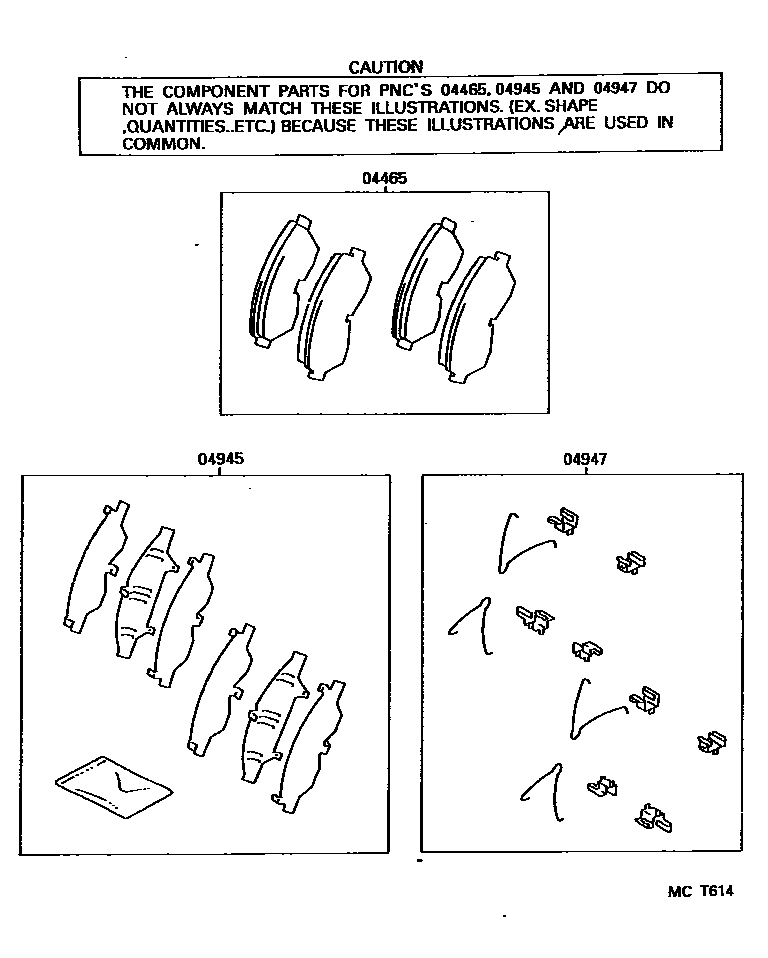

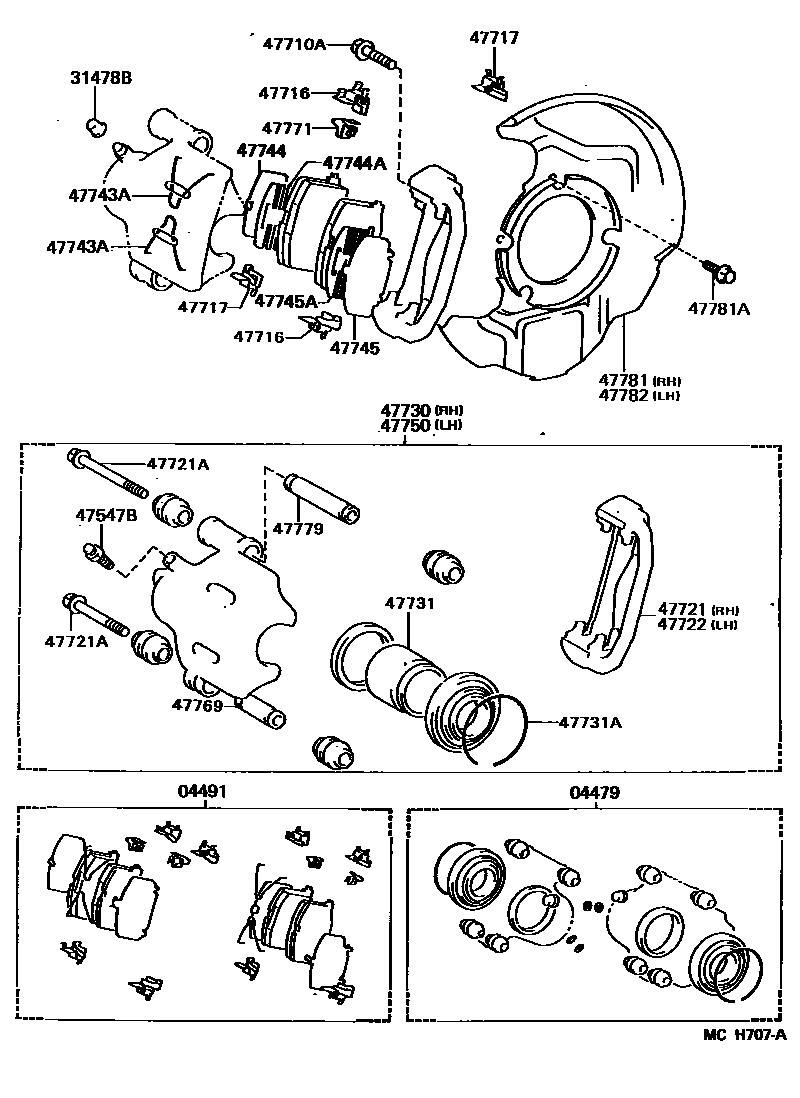

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-32170 |
| 04479 | Front disc brake cylinder assembly | 04479-32030 |
| 04491 | Front disc brake pad assembly | 04491-32280 · 04491-32281 · 04491-32390 |
| 04945 | Front silencer gasket assembly | 04945-32160 · 04945-32180 |
| 04947 | Front disc brake mounting kit | 04947-32140 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-03010 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12131 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-03010 · 47716-32040 · 47716-32041 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-03010 · 47717-32040 · 47717-32041 |
| 47721 | Right front disc brake cylinder retainer | 47721-03010 · 47721-20140 · 47721-32090 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90080-11032 · 90080-11033 · 90119-10014 · 90119-10249 |
| 47722 | Left front disc brake cylinder retainer | 47721-03010 · 47721-20140 · 47721-32090 |
| 47730 | Right front disc brake cylinder assembly | 47730-03010 · 47730-20240 · 47730-32100 |
| 47731 | Front disc brake piston | 47731-03010 · 47731-32040 |
| 47731A | retaining ring (for front disc brake piston) | 90080-52009 · 90522-66001 |
| 47743A | Silencer spring (for front disc brake) | 47743-03010 · 47743-32030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-03010 · 47744-32041 · 47745-32020 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-32021 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47744-03010 · 47744-32041 · 47745-32021 |
| 47745A | No. 4 silencer gasket (for front disc brake) | 47742-32022 |
| 47750 | Left disc brake cylinder assembly | 47750-03010 · 47750-20230 · 47750-32100 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-03010 · 47769-40010 |
| 47771 | No. 1 pad wear indicator plate | 47771-03010 · 47771-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-03010 · 47779-40010 |
| 47781 | Right front disc brake dust cover | 47703-32011 · 47703-32021 · 47703-32040 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47704-32011 · 47704-32021 · 47704-32040 |
