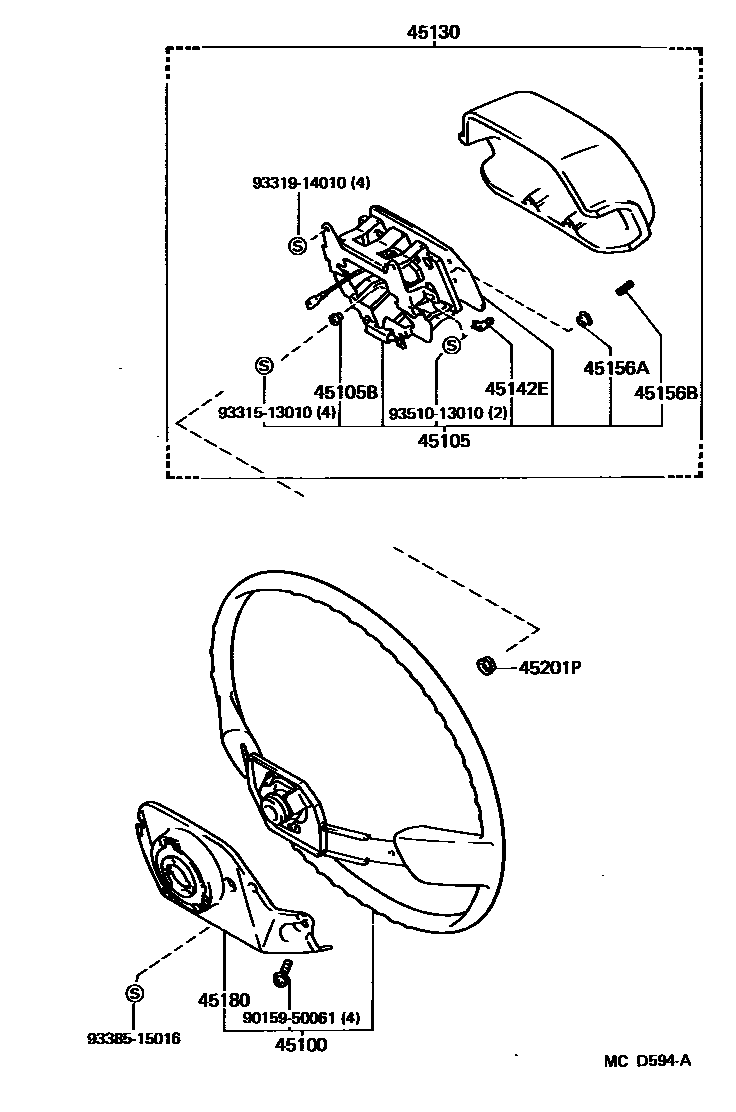

Toyota CAMRY Steering Wheel — Figure 4504
Toyota CAMRY EPC diagram 4504, Steering Wheel, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-32050 |
| 45105B | Spacer (for horn button contact piece) | 90561-02001 |
| 45142E | Speaker contacts | 45142-20060 |
| 45156A | Speaker contact spring holder | 45156-16010 |
| 45156B | Spring (for horn contact spring holder) | 90501-06032 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
