Toyota CAMRY Front Drive Shaft — Figure 4302

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 4 images and 33 PNC and OE references.

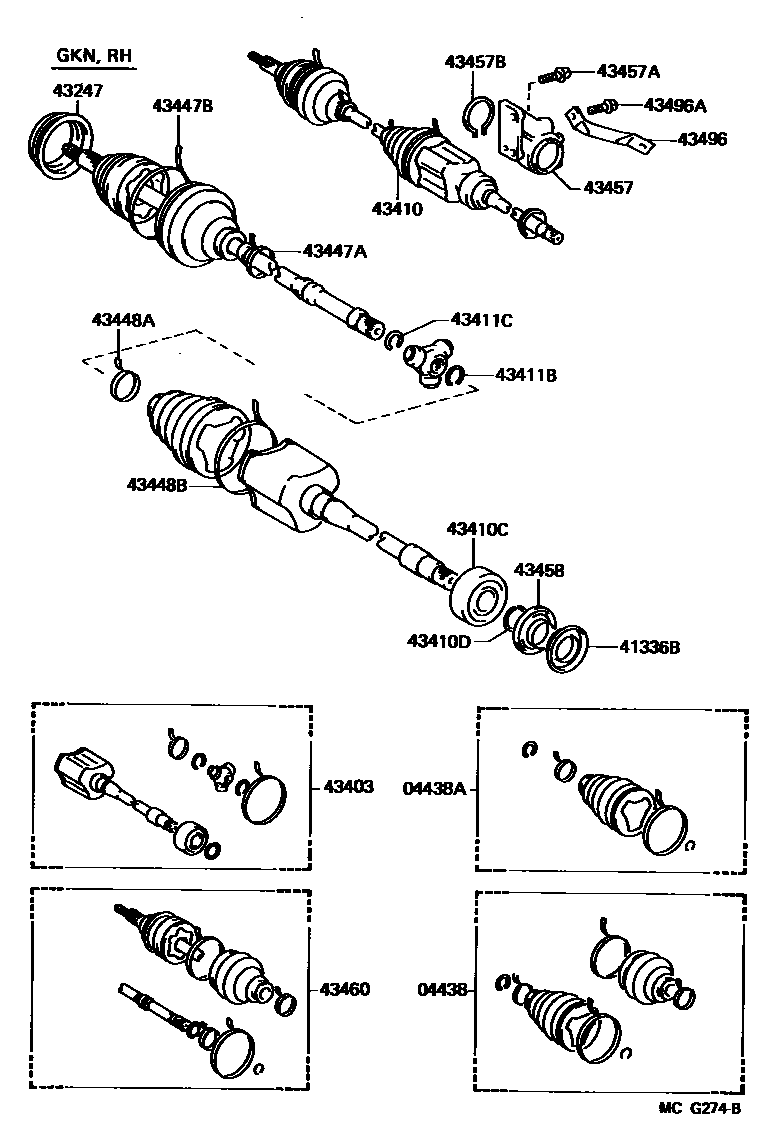

Toyota CAMRY Front Drive Shaft EPC diagram — MCG274B
Front Drive Shaft — MCG274B (198807 – 999999)

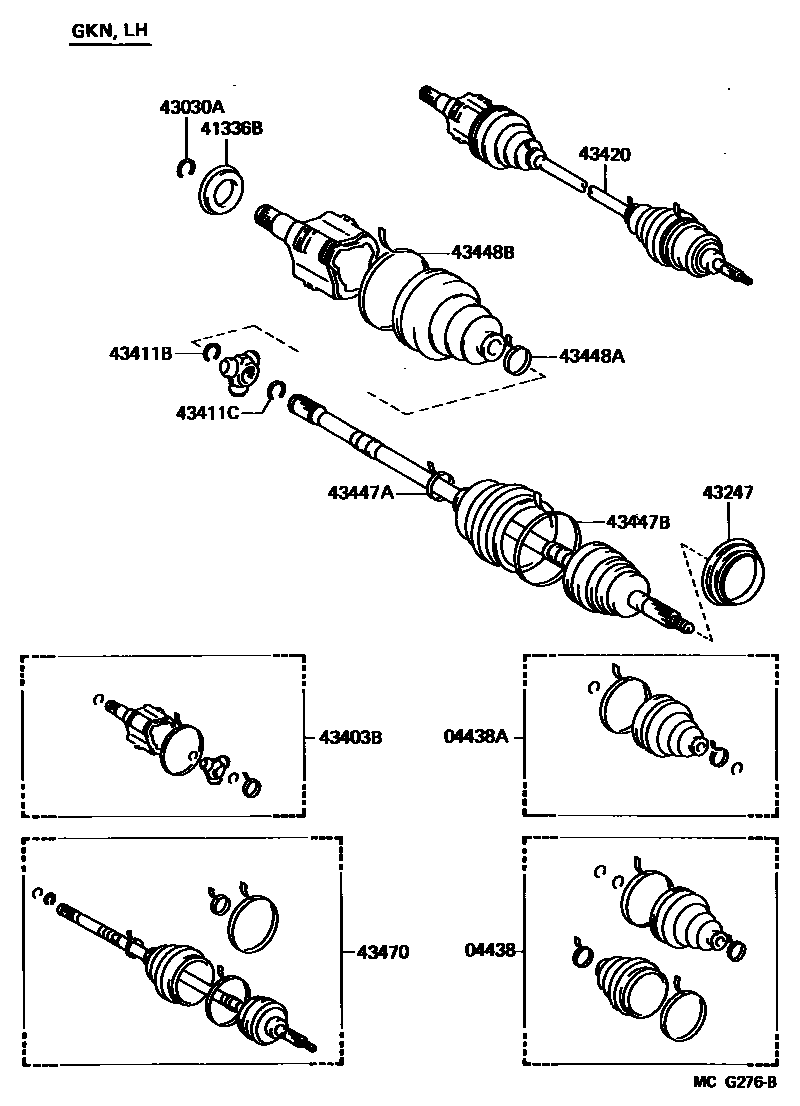

Toyota CAMRY Front Drive Shaft EPC diagram — MCG276B
Front Drive Shaft — MCG276B (198807 – 999999)

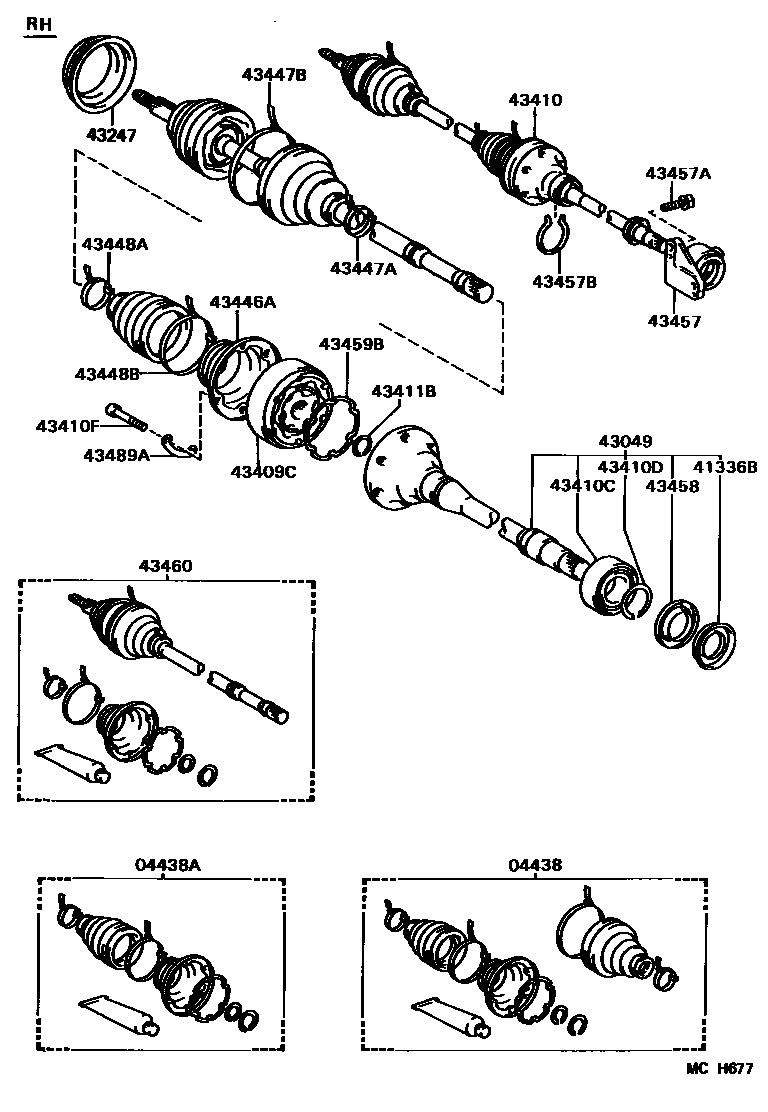

Toyota CAMRY Front Drive Shaft EPC diagram — MCH677
Front Drive Shaft — MCH677 (198808 – 999999)

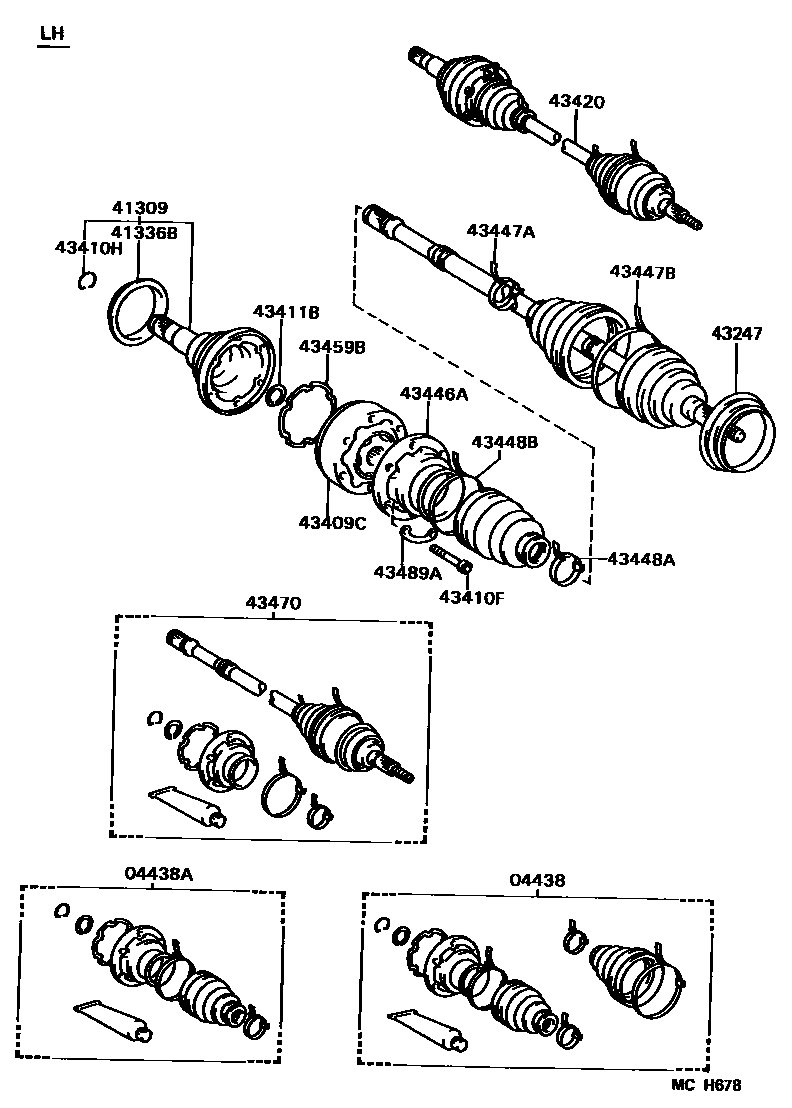

Toyota CAMRY Front Drive Shaft EPC diagram — MCH678
Front Drive Shaft — MCH678 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438Front drive shaft dust boot assembly04438-03020 · 04438-03040
04438AFront drive shaft inner universal joint dust boot assembly04438-03010 · 04438-03030
41309Left differential side gear shaft sub-assembly41309-03010
41336BDust cover (for front drive shaft)41336-03010 · 41336-03020 · 41336-03030 · 41336-03040
43030AHole snap ring (for front drive shaft inboard universal joint)90081-52005
43049Front drive flange shaft sub-assembly43049-03010
43247No. 2 front wheel bearing dust cover43247-03010
43403Right front axle inner universal joint assembly43030-09010
43403BLeft front axle inner universal joint assembly43040-09010
43409CFront drive shaft cross-slot universal joint sub-assembly43409-03010
43410Right front driveshaft assembly43410-03010 · 43410-03011 · 43410-03030 · 43410-03031 · 43410-32091
43410CBearings (for front driveshaft)90369-36001 · 90369-41001
43410DShaft snap ring (for front drive shaft)90080-52013 · 90081-52006
43410FSerrated threaded bolt (for front drive shaft)90080-11034
43410HHole snap ring (for front driveshaft)90080-52017
43411BInner shaft snap ring (for front axle inner shaft)90080-52012 · 90081-52004
43411COuter shaft snap ring (for front axle inner shaft)90081-52003
43420Left front drive shaft assembly43420-03010 · 43420-03011 · 43420-03030 · 43420-03031 · 43420-32071
43446AFront axle inner universal joint cover43446-03020
43447AClamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle)90080-46084 · 90081-46024
43447BClamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle)90080-46086 · 90081-46022
43448AClamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle)90080-46084 · 90081-46024
43448BNo. 2 clip (used to fix the universal joint dust cover on the inside of the front axle)90080-46086 · 90081-46023
43457drive shaft bearing bracket43457-20022 · 43457-32040 · 43457-32050
43457ABolts (for securing the No. 1 drive shaft bearing bracket)90105-10202 · 90119-10461
43457BHole snap ring (for drive shaft bearing bracket)90521-75002 · 90521-78002
43458Front drive shaft dust cover43458-03010 · 43458-03020
43459BFront driveshaft cross-recessed universal joint gasket43459-03020
43460Right front outer drive universal joint shaft assembly43470-09030 · 43470-09031 · 43470-09040
43470Left front outer drive universal joint shaft assembly43470-09030 · 43470-09031 · 43470-09040
43489ACross recessed universal joint washer43489-03010
43496No. 1 front drive shaft bearing bracket stay43496-32010
43496ABolt (for driveshaft bearing bracket stay)90105-10202
