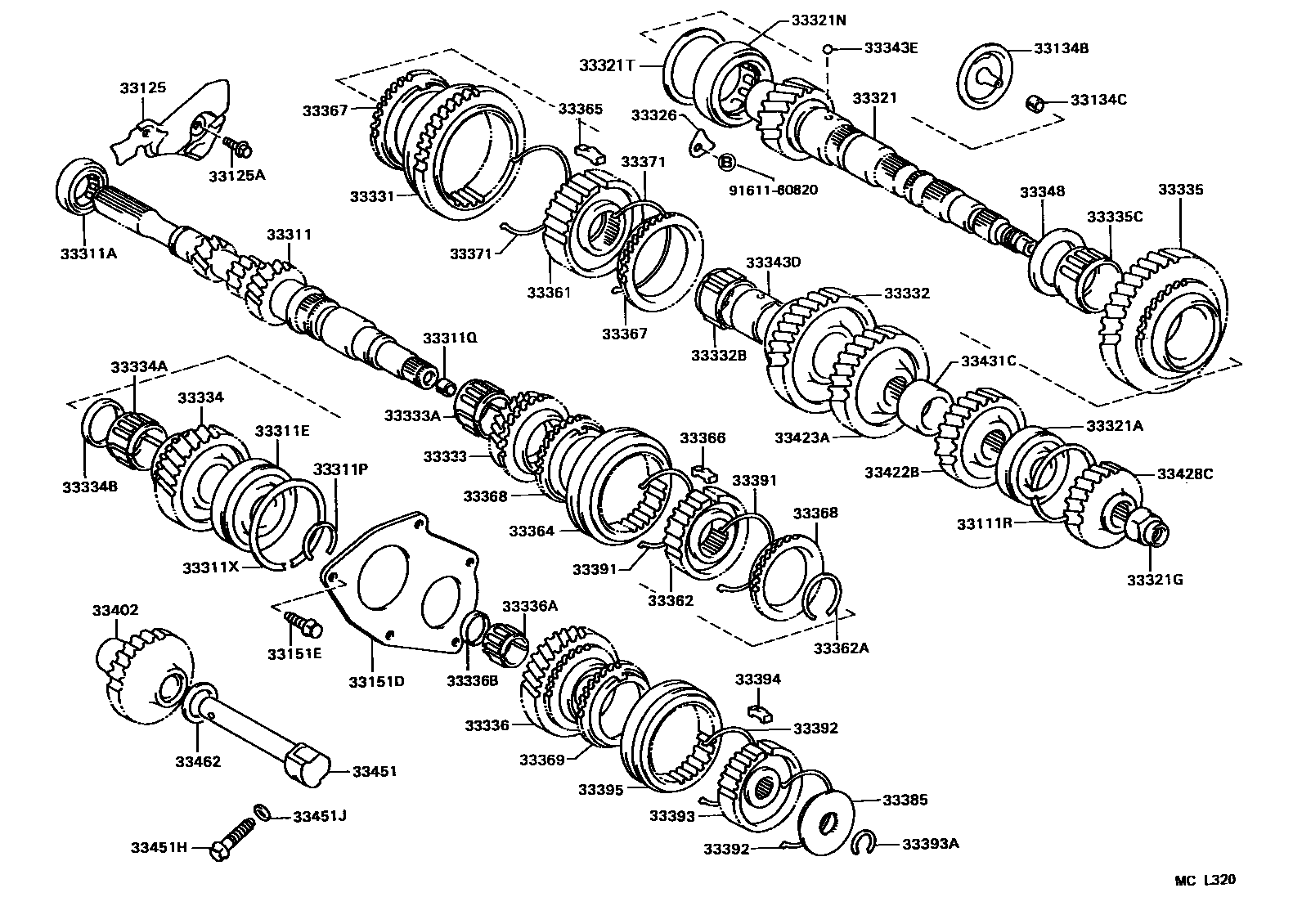

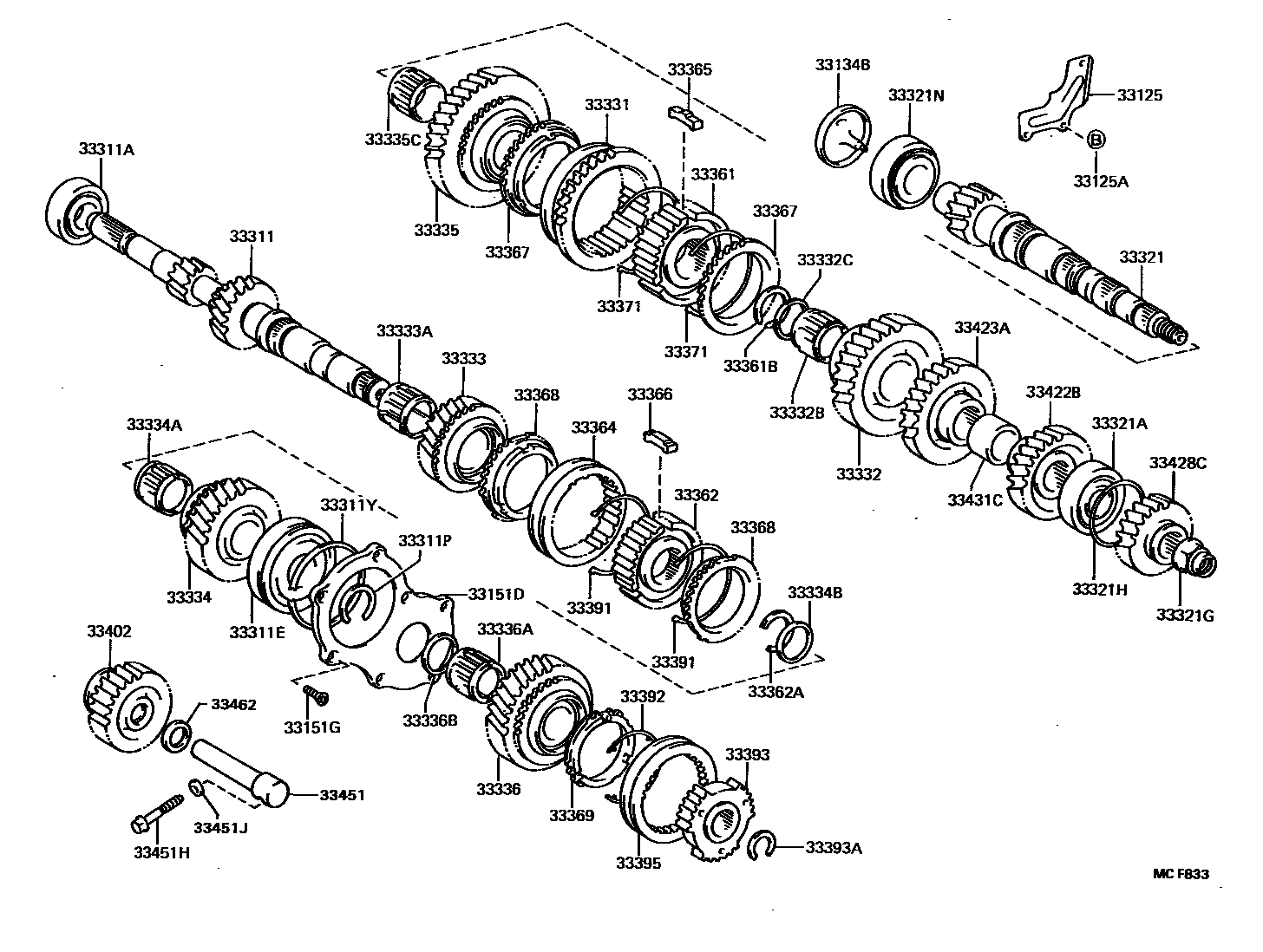

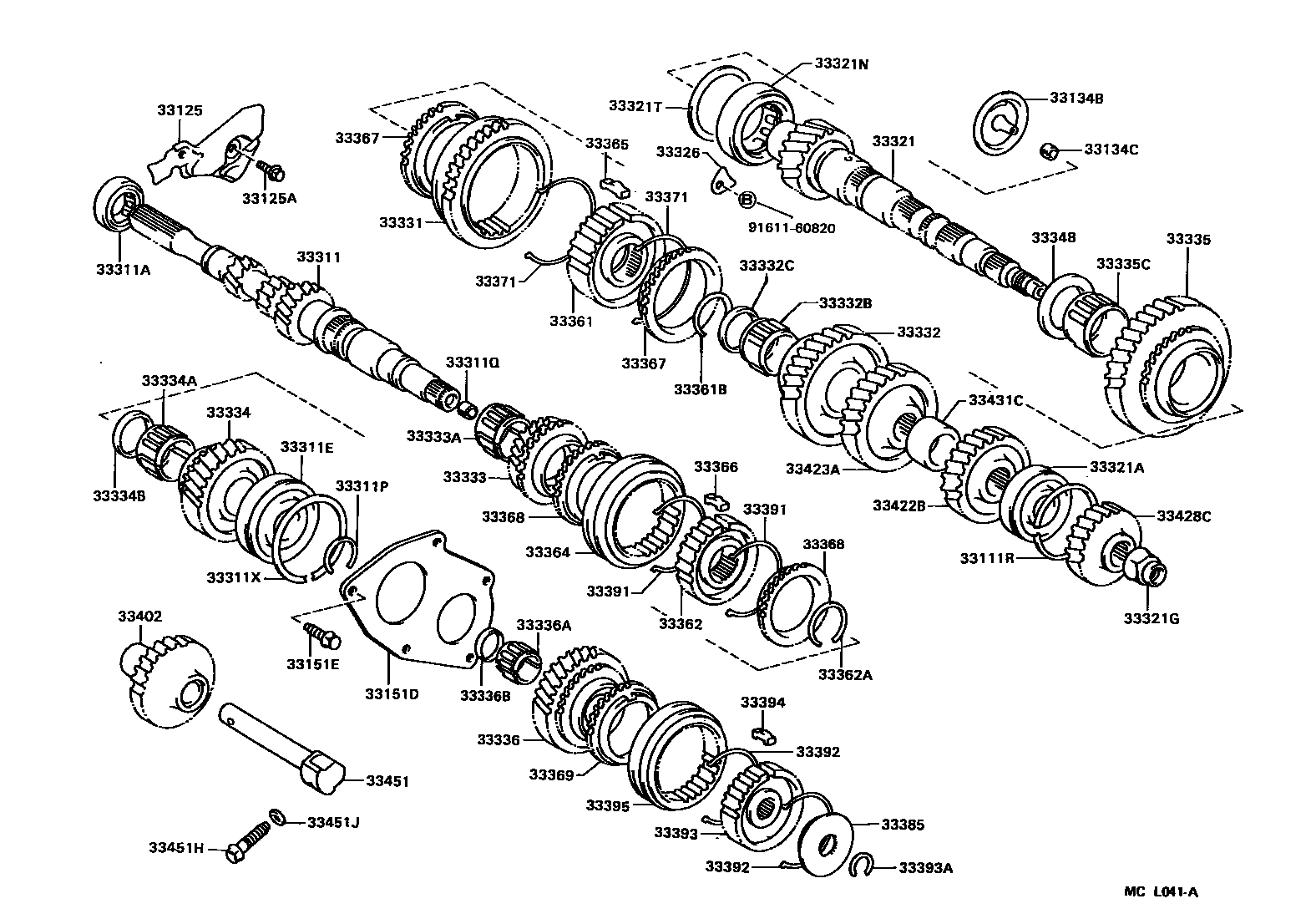

Toyota CAMRY 变速器齿轮(MTM) — Figure 3305
Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111R | Hole snap ring (for output shaft rear bearing) | 90521-66004 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-20010 · 33125-32010 · 33125-32011 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60616 |
| 33134B | Output shaft cover (MTM) | 33134-20010 · 33134-32011 · 33134-32020 |
| 33134C | Slotted spring pin (for output shaft) | 90254-10001 |
| 33151D | Rear bearing retainer (MTM) | 33151-20030 · 33151-20031 · 33151-32011 · 33151-32012 |
| 33151E | Bolt (for rear bearing retainer) | 90105-08045 · 90105-08237 |
| 33151G | Screw (for rear bearing retainer) | 90149-80015 · 90149-80029 |
| 33311 | input shaft | 33311-12080 · 33311-32021 · 33311-32040 |
| 33311A | Bearing (for front input shaft) | 90365-30017 · 90365-30023 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-29004 · 90363-29006 · 90363-33007 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-27018 · 90520-27019 · 90520-27020 · 90520-27021 · 90520-27022 · 90520-30008 · 90520-30009 · 90520-30010 · 90520-30011 · 90520-30012 · 90520-30013 · 90520-30021 · 90520-30022 |
| 33311Q | Slotted spring pin (for input shaft) | 90254-10002 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90521-76001 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-76003 |
| 33321 | output shaft | 33321-12090 · 33321-20090 · 33321-20120 · 33321-32050 · 33321-32051 |
| 33321A | Bearings (for rear output shaft) | 90363-25037 · 90363-25056 · 90366-28007 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18003 · 90179-20012 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-60001 · 90564-60002 · 90564-60003 · 90564-60004 · 90564-60005 · 90564-60006 · 90564-60007 · 90564-60008 · 90564-60009 · 90564-60010 · 90564-60011 · 90564-60012 · 90564-60013 · 90564-60014 · 90564-60015 · 90564-60016 · 90564-60017 · 90564-60018 · 90564-60019 · 90564-60020 · 90564-60021 · 90564-60022 · 90564-60023 · 90564-60024 · 90564-60025 |
| 33321N | Bearing (for front output shaft) | 90365-32012 · 90365-32013 · 90366-32002 |
| 33321T | Spacer (for output shaft) | 90560-48002 |
| 33326 | Bearing locking plate | 33326-32010 · 33326-32020 |
| 33331 | reverse gear | 33331-20040 · 33331-32010 · 33331-32020 · 33331-32022 |
| 33332 | Second gear | 33033-20060 · 33033-32020 · 33033-32040 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32011 · 90364-39006 · 90364-39013 |
| 33332C | Spacer (for second gear bearing) | 90560-32006 · 90560-39003 |
| 33333 | Third gear | 33034-20040 · 33034-20041 · 33034-32020 · 33034-32040 |
| 33333A | Needle roller bearing (for third gear) | 90364-33001 · 90364-36007 |
| 33334 | fourth gear | 33035-20030 · 33035-20031 · 33035-32010 · 33035-32040 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-32013 · 90364-36010 |
| 33334B | Spacer (for fourth gear bearing) | 90560-32007 · 90560-36002 |
| 33335 | first gear | 33032-17010 · 33032-32010 · 33032-32020 |
| 33335C | Needle roller bearing (for first gear) | 90364-38004 · 90364-39008 |
| 33336 | fifth gear | 33036-32010 · 33036-32021 · 33036-32030 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-27005 · 90364-33004 |
| 33336B | Spacer (for fifth gear bearing) | 90560-27004 · 90560-33004 |
| 33343D | Second gear bushing | 33343-32010 · 33343-32011 |
| 33343E | Steel ball (for second gear bushing) | 90360-05012 |
| 33348 | First gear thrust washer | 33348-32010 |
| 33361 | No. 1 transmission clutch hub | 33361-20040 · 33361-32011 · 33361-32020 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29012 · 90520-29013 · 90520-29014 · 90520-29015 · 90520-29016 · 90520-29017 · 90520-37004 · 90520-37005 · 90520-37006 · 90520-37007 · 90520-37008 · 90520-37009 · 90520-37010 |
| 33362 | No. 2 transmission clutch hub | 33362-20020 · 33362-20021 · 33362-32010 · 33362-32020 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 · 90520-34003 · 90520-34004 · 90520-34005 · 90520-34006 · 90520-34007 · 90520-34008 · 90520-34009 |
| 33364 | No. 2 transmission hub sleeve | 33364-20024 · 33364-32011 · 33364-32012 |
| 33365 | No. 1 synchromesh shift key | 33365-20050 · 33365-32010 · 33365-32020 |
| 33366 | No. 2 synchromesh shift key | 33366-20021 · 33366-32010 · 33366-32020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-20040 · 33367-20050 · 33367-32020 · 33368-32010 |
| 33368 | Synchronizer lock ring No. 2 | 33367-32010 · 33368-20030 · 33368-32020 |
| 33369 | No. 3 synchronizer lock ring | 33367-32010 · 33369-20010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-20010 · 33371-20020 · 33371-32020 |
| 33385 | shift key block | 33385-32010 |
| 33391 | No. 2 synchromesh shift key spring | 33371-32011 · 33391-20010 · 33391-32010 |
| 33392 | No. 3 synchromesh shift key spring | 33371-32011 · 33392-20010 |
| 33393 | No. 3 transmission clutch hub | 33393-20020 · 33393-32010 · 33393-32020 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-20022 · 90520-20023 · 90520-20024 · 90520-20025 · 90520-20026 · 90520-20027 · 90520-20028 · 90520-20029 · 90520-20030 · 90520-20031 · 90520-20032 · 90520-20033 · 90520-20034 · 90520-20035 · 90520-20036 · 90520-20051 · 90520-20052 · 90520-20053 · 90520-20054 · 90520-20055 · 90520-20056 · 90520-20057 · 90520-20058 · 90520-20059 · 90520-20060 · 90520-20061 · 90520-20062 · 90520-27037 · 90520-27038 · 90520-27039 · 90520-27040 · 90520-27041 · 90520-27042 · 90520-27043 · 90520-27044 · 90520-27045 |
| 33394 | No. 3 synchromesh shift key | 33366-32010 |
| 33395 | No. 3 transmission hub sleeve | 33395-12020 · 33395-20020 · 33395-32010 · 33395-32011 |
| 33402 | Reverse idler gear sub-assembly | 33402-20040 · 33402-32010 · 33402-32020 |
| 33422B | Fourth gear driven gear | 33422-20030 · 33422-32011 · 33422-32040 |
| 33423A | Third gear driven gear | 33423-20020 · 33423-32020 · 33423-32040 |
| 33428C | fifth speed driven gear | 33428-32010 · 33428-32030 · 33428-32040 |
| 33431C | Output gear spacer | 33431-20080 · 33431-32010 · 33431-32020 |
| 33451 | Reverse gear idler shaft | 33451-20040 · 33451-32010 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08041 · 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08006 · 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-20050 · 33462-32010 |
