Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 2 images and 12 PNC and OE references.

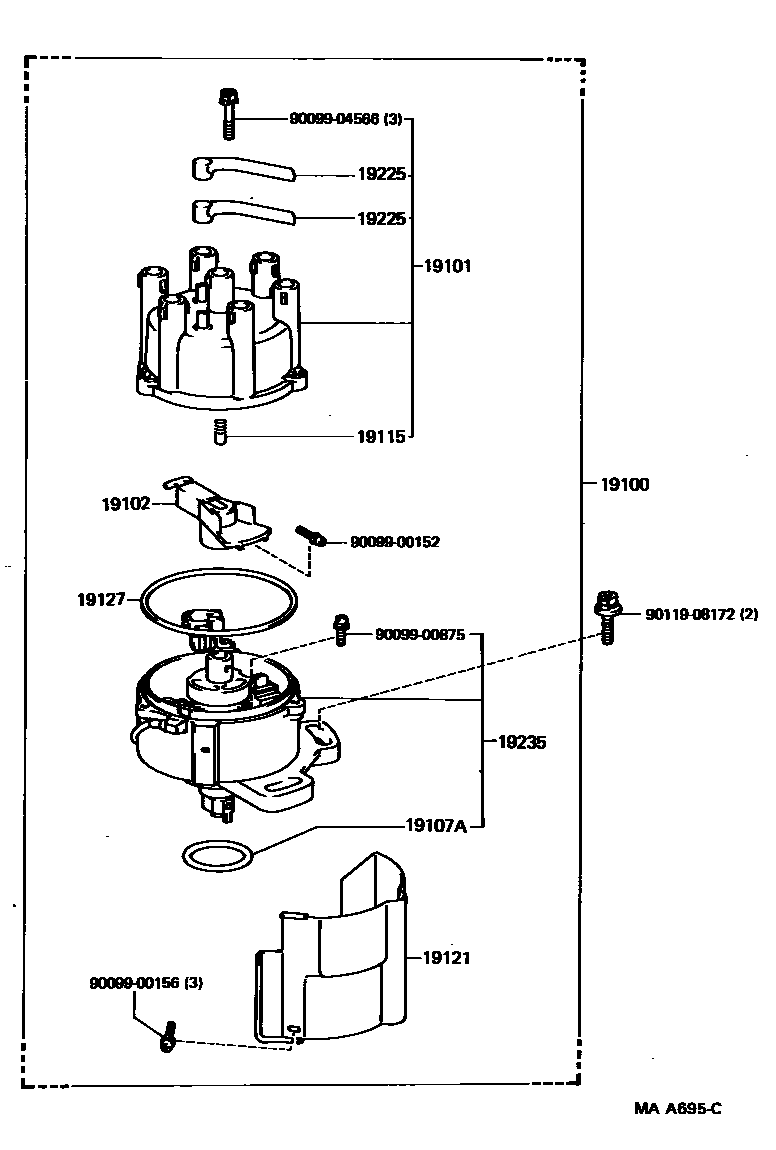

Toyota CAMRY 分电器 EPC diagram — MAA695C
分电器 — MAA695C (198808 – 999999)

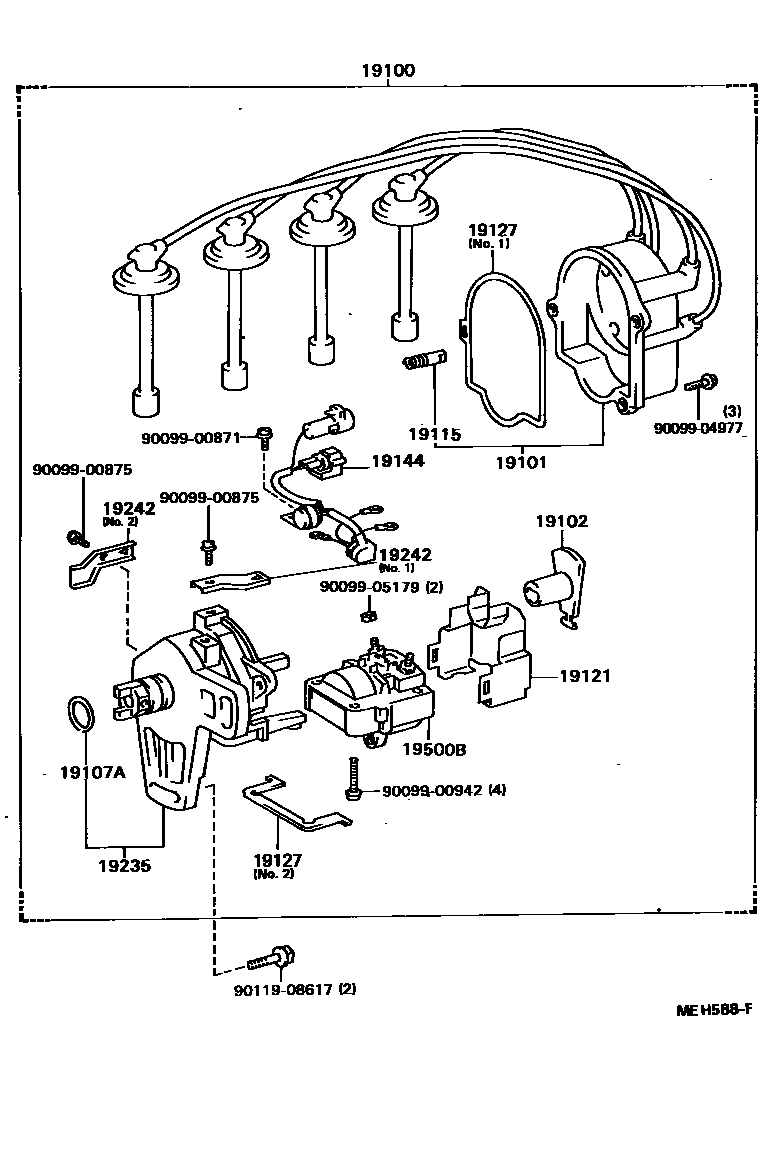

Toyota CAMRY 分电器 EPC diagram — MEH588F
分电器 — MEH588F (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19040-74031 · 19100-62030
19101Distributor cover sub-assembly19101-62030 · 19101-74030
19102Distributor flame head sub-assembly19102-11031 · 19102-62020
19107ADistributor housing O-ring90099-14089 · 90099-14091 · 96711-35030
19115Distributor cover center piece19115-50010 · 19115-63010
19121dust cover19121-62011 · 19121-63040
19127Dust seal19127-61240 · 19127-63010 · 19127-63020
19144Distributor breaker lead19144-74060
19225rubber cap19225-62020
19235Distributor housing19235-62030 · 19235-74060 · 19235-74130
19242Cable clip19242-74020 · 19242-74030
19500BIgnition coil assembly90919-02135
