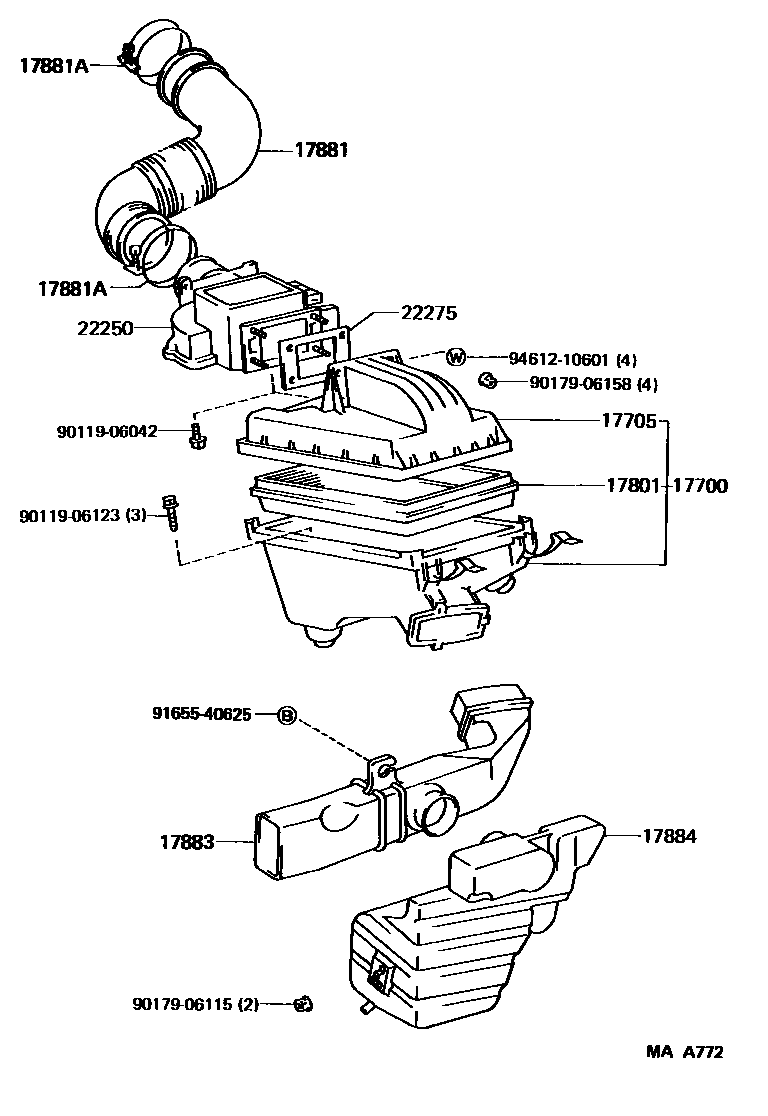

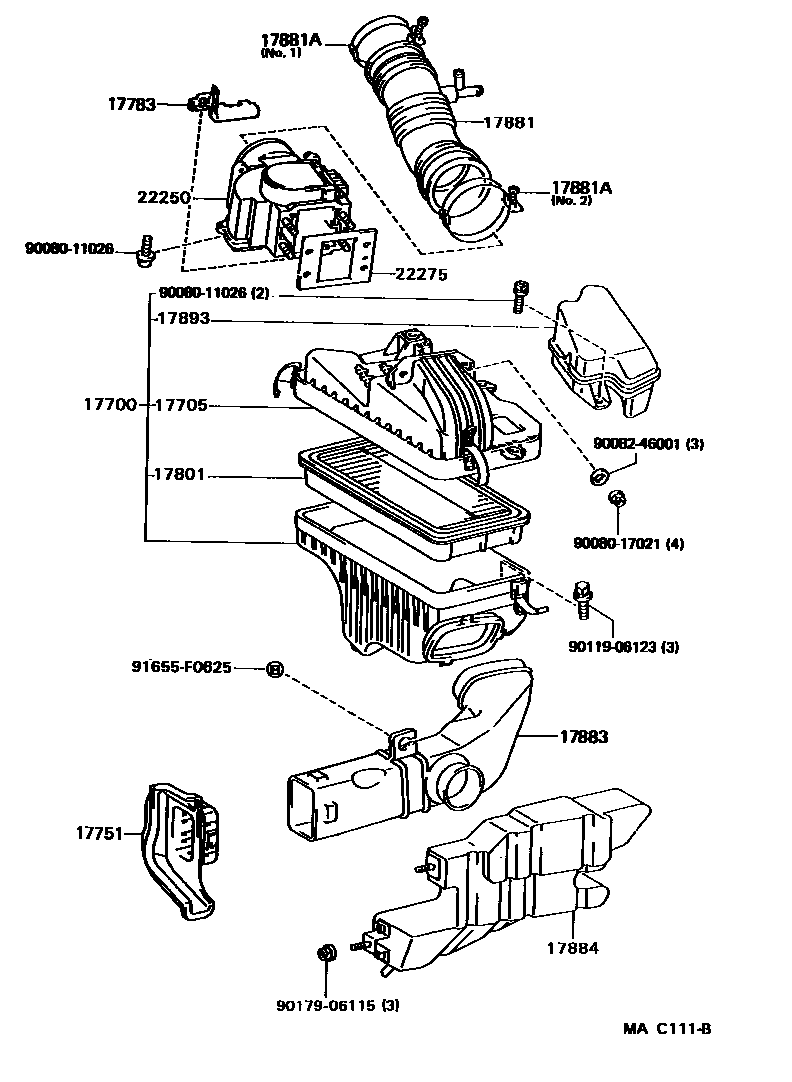

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-03010 · 17700-07010 |
| 17705 | Air filter cover sub-assembly | 17705-03010 · 17705-07010 |
| 17751 | No. 1 air filter air inlet | 17751-62010 |
| 17783 | air filter baffle | 17783-07010 |
| 17801 | Air filter element sub-assembly | 17801-74010 · 17801-74020 |
| 17881 | No. 1 air cleaner hose | 17881-03010 · 17881-07010 · 17881-62020 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 · 96111-10710 · 96111-10750 · 96111-10800 · 96111-10900 |
| 17883 | No. 3 air cleaner hose | 17882-03010 |
| 17884 | No. 4 air cleaner hose | 17883-03010 · 17883-03030 · 17883-62011 |
| 17893 | Intake resonator | 17893-07010 |
| 22250 | Intake air flow meter assembly | 22250-07010 · 22250-74100 |
| 22275 | air flow meter gasket | 22275-07010 · 22275-41010 |
