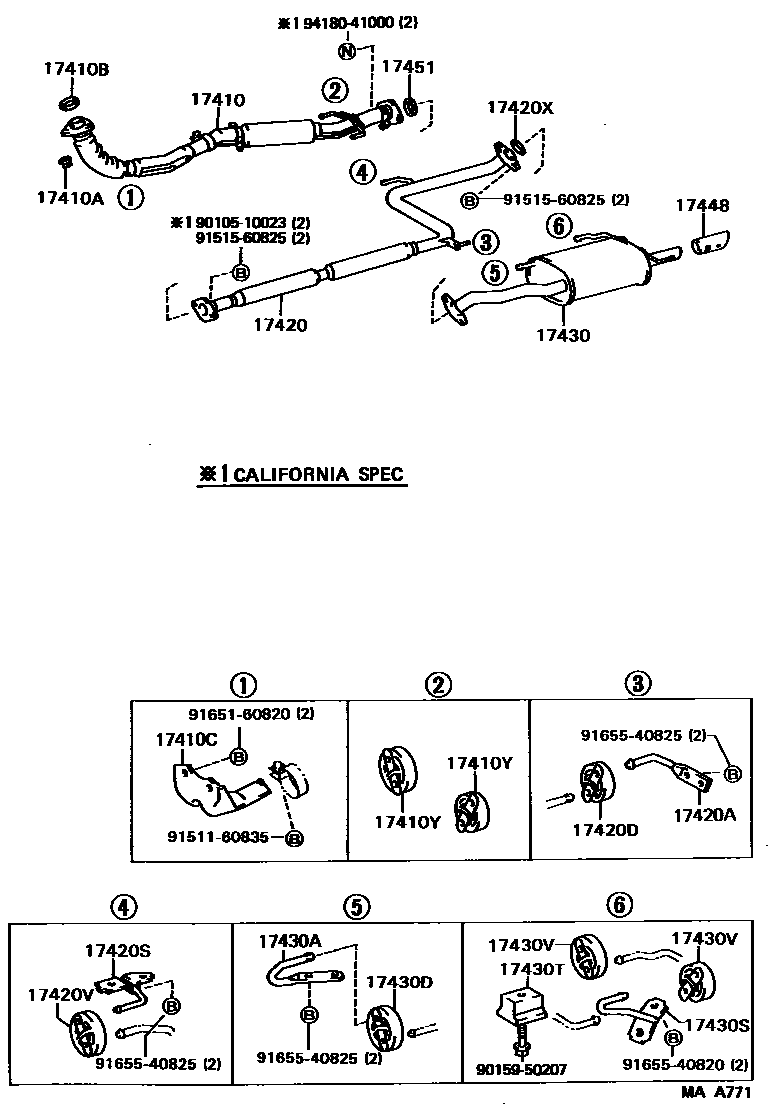

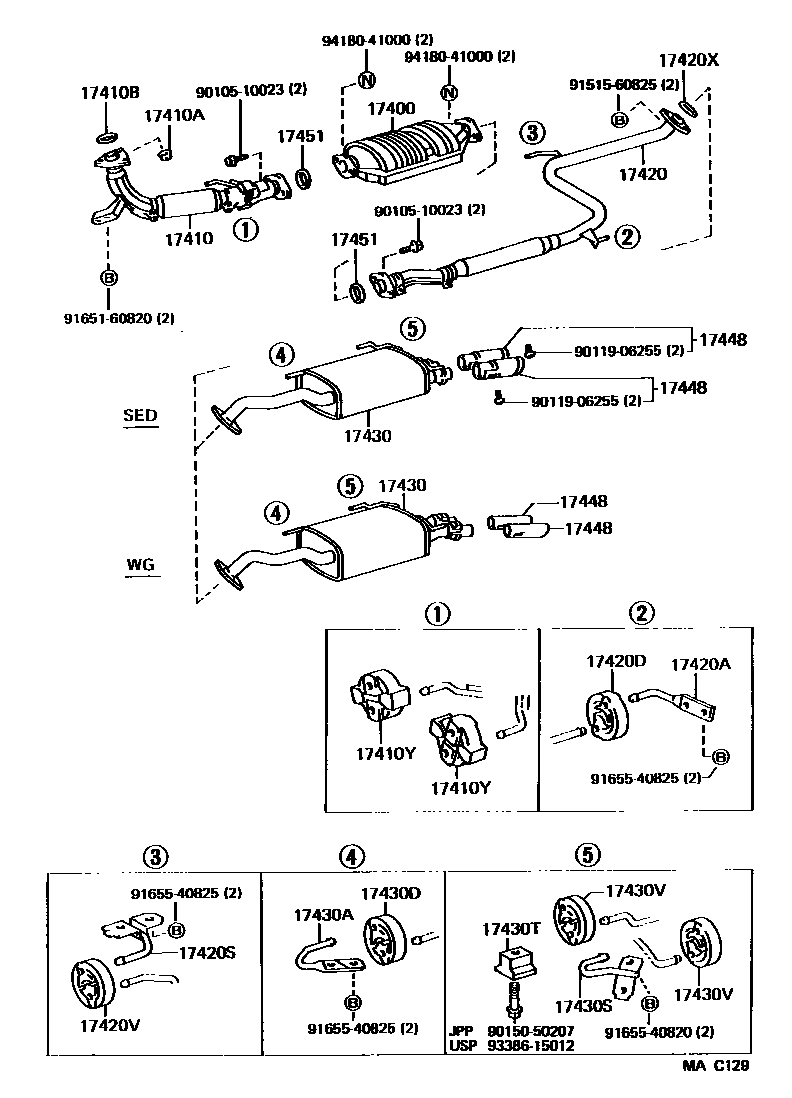

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-62050 · 18450-62060 |
| 17410 | Front exhaust pipe assembly | 17410-03010 · 17410-03011 · 17410-03012 · 17410-07010 · 17410-07011 · 17410-07012 · 17410-07013 · 17410-07014 · 17410-74501 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06042 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-74050 · 17571-74160 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-03030 · 17565-11100 · 17565-62010 |
| 17420 | Central exhaust pipe assembly | 17420-03010 · 17420-03011 · 17420-07010 · 17420-07011 · 17420-07012 · 17420-07013 · 17420-07020 · 17420-07021 · 17420-07022 · 17420-62030 · 17420-62031 · 17420-74371 |
| 17420A | Center exhaust pipe front bracket | 17572-63050 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-03030 · 17565-11100 · 17565-62010 |
| 17420S | Center exhaust pipe rear bracket | 17507-63030 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-03030 · 17565-11100 · 17565-62010 |
| 17420X | Center exhaust pipe liner | 90917-06045 · 90917-06046 · 90917-06047 |
| 17430 | Exhaust tailpipe assembly | 17430-03010 · 17430-03011 · 17430-03012 · 17430-03013 · 17430-07010 · 17430-07011 · 17430-07012 · 17430-07013 |
| 17430A | Exhaust tailpipe bracket (for front) | 17563-63080 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-03060 · 17565-55020 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-63060 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17591-03010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-03070 · 17565-63120 |
| 17448 | Exhaust pipe tail throat | 17448-41050 · 17448-79025 |
| 17451 | Exhaust pipe gasket | 90917-06045 · 90917-06046 · 90917-06047 |
