Toyota CAMRY Manifold — Figure 1701

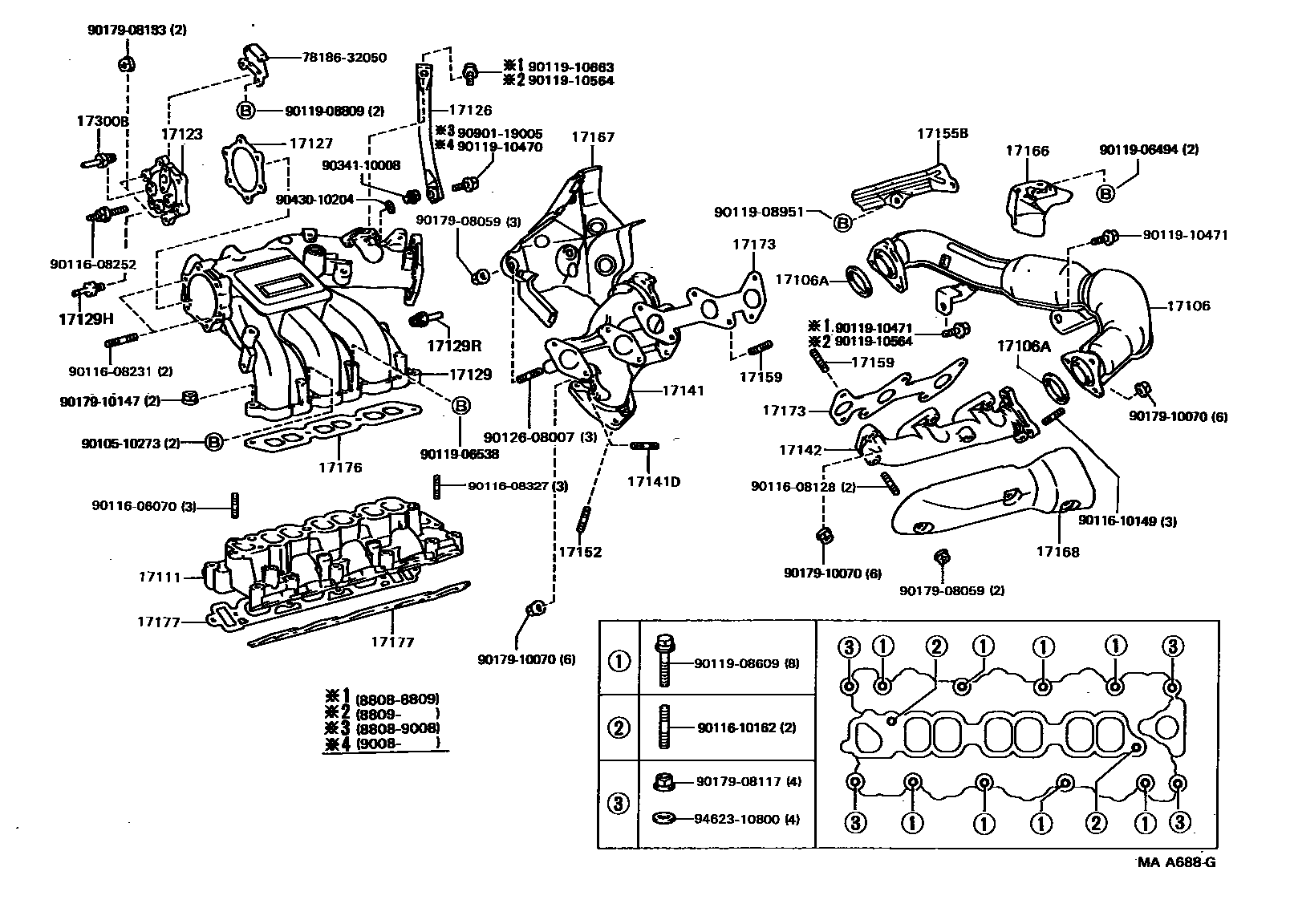

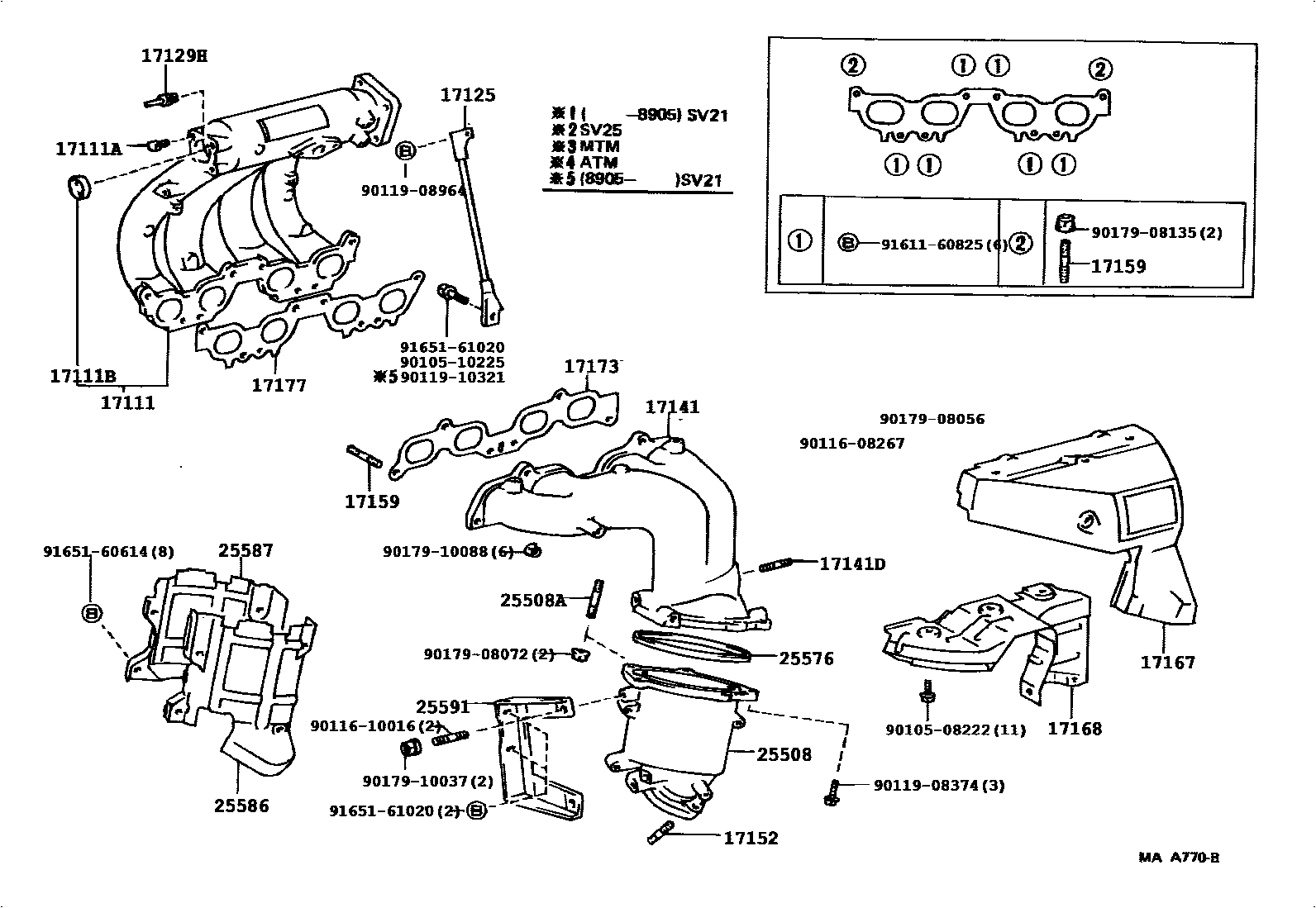

Toyota CAMRY EPC diagram 1701, Manifold, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17106 | Exhaust crossover pipe assembly | 17106-62012 |
| 17106A | Exhaust pipe gasket | 90917-06048 |
| 17111 | Intake Manifold | 17101-74071 · 17111-62020 |
| 17111A | No. 1 screw plug | 90345-51006 |
| 17111B | No. 2 screw plug | 96411-44000 |
| 17123 | Pressure tank cover | 17123-62011 |
| 17125 | No. 1 pressure tank stay | 17125-74050 · 17125-88361 |
| 17126 | No. 2 pressure tank stay | 17126-62010 |
| 17127 | Pressure tank cover gasket | 17127-62020 |
| 17129 | Intake pressure tank | 17109-62010 · 17109-62011 · 17109-62012 |
| 17129H | Connector No. 4 | 90404-51010 · 90404-51026 |
| 17129R | Headed tapered thread plug (for air intake surge tank) | 90345-51008 |
| 17141 | exhaust manifold | 17141-62020 · 17141-74040 · 17141-74041 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 · 90116-08171 |
| 17142 | No. 2 exhaust manifold housing | 17142-62010 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10149 |
| 17155B | Exhaust manifold No. 5 heat shield | 17155-62010 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10063 · 90116-10150 · 92122-60822 · 92122-60825 |
| 17166 | Exhaust manifold No. 4 heat shield | 17166-62011 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-62010 · 17167-74040 · 17167-74140 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62010 · 17168-74020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-62020 · 17173-74040 · 17173-88360 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-62030 · 17177-74020 · 17177-74041 · 17177-74070 |
| 17300B | Connector (for intake control valve) | 90404-51026 · 90404-51072 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-74022 · 25508-74080 · 25508-74130 · 25508-74140 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08253 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-74010 · 25576-74020 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-74011 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-74011 |
| 25591 | Manifold bracket | 25591-74010 · 25591-74011 |
