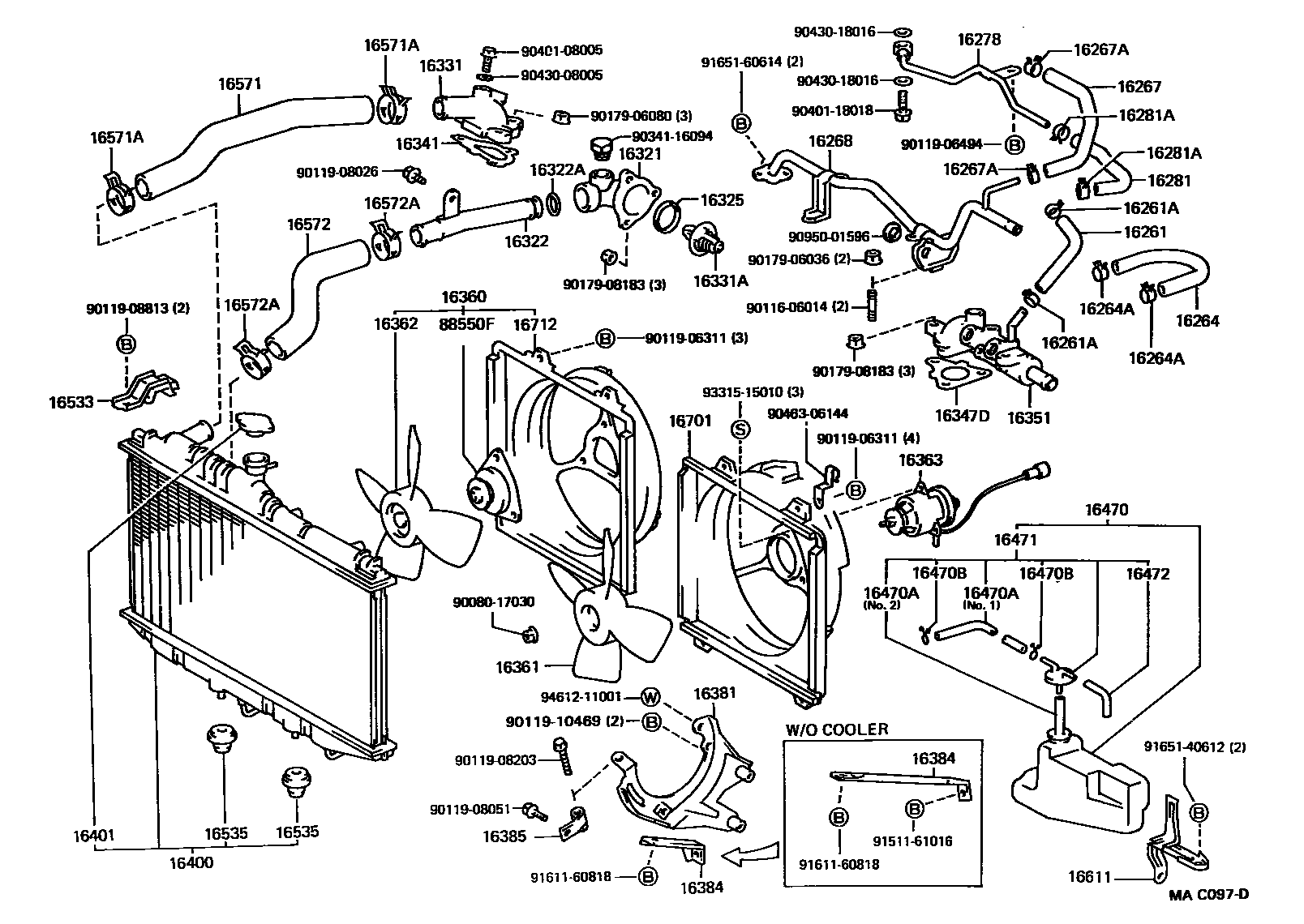

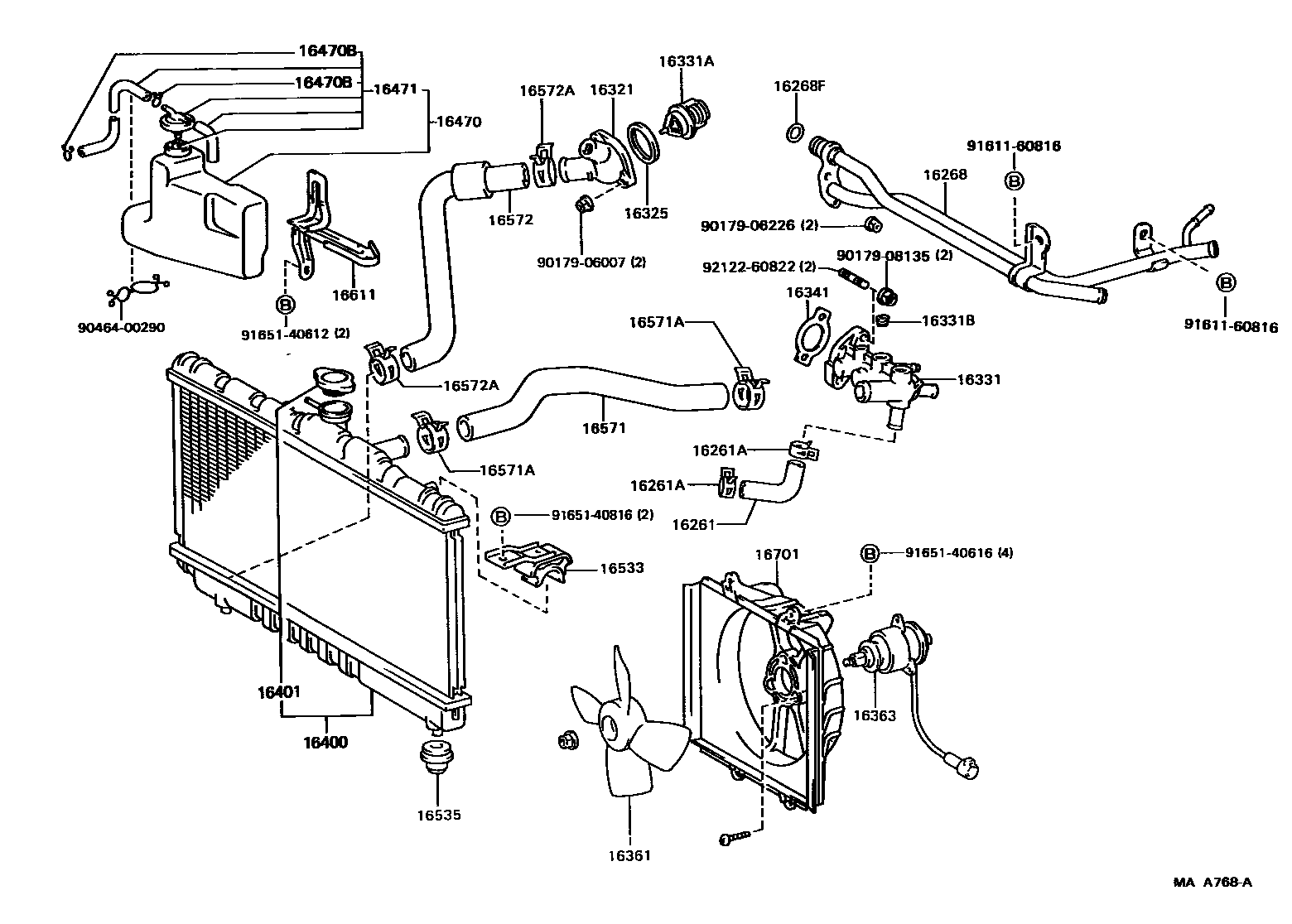

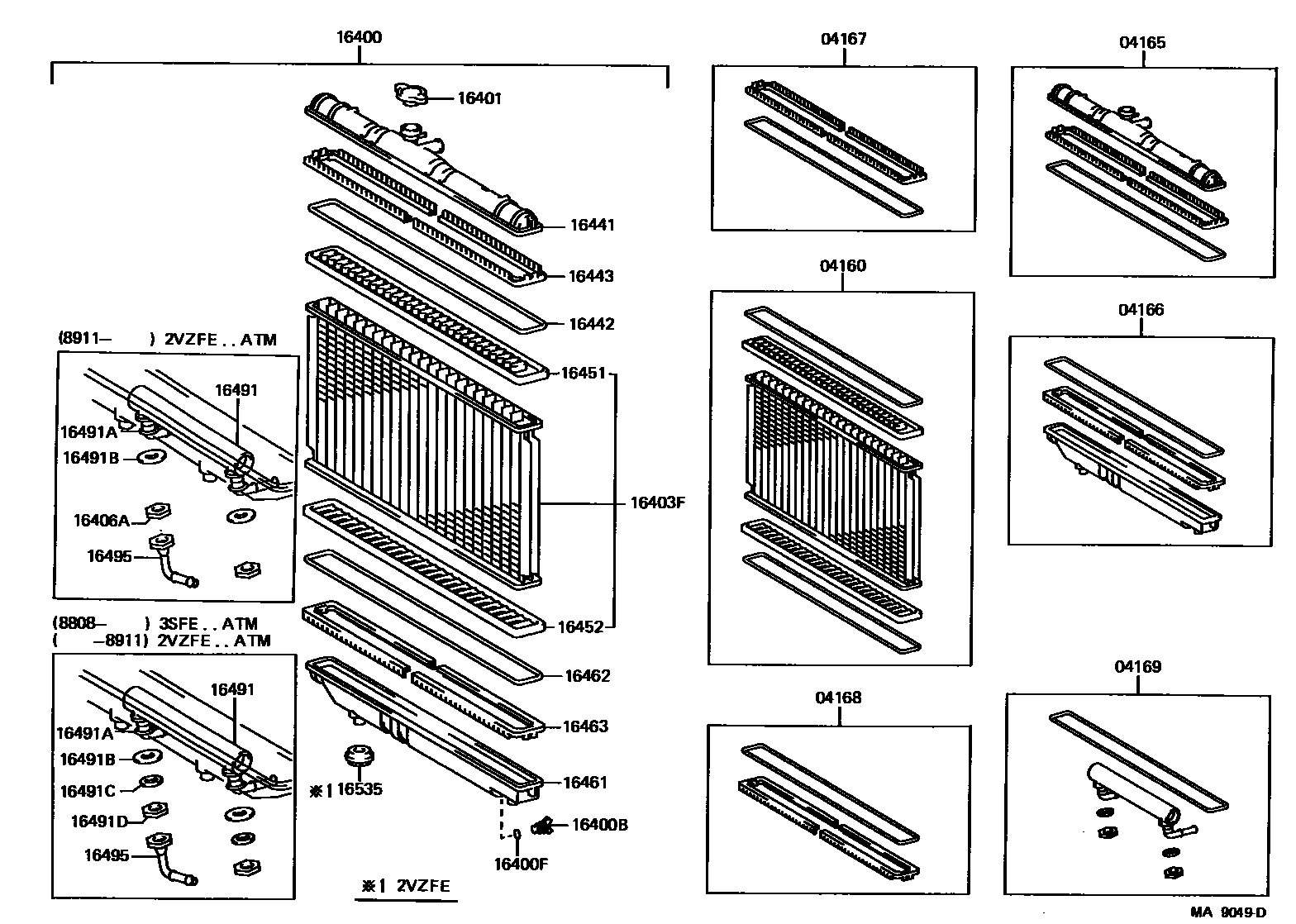

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04160 | Radiator core assembly | 04160-02010 |
| 04165 | Radiator upper tank assembly | 04165-03010 |
| 04166 | Radiator lower tank assembly | 04166-03010 · 04166-03020 |
| 04167 | Upper radiator ring and fin assembly | 04167-02010 |
| 04168 | Lower radiator ring and fin assembly | 04168-02010 |
| 04169 | Transmission oil cooler assembly (for ATM) | 04169-03010 |
| 16261 | HOSE, WATER BY-PASS | 16261-03030 · 16261-62010 · 16261-74010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-22003 · 96135-41300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-62020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-62010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-03030 · 16268-62010 · 16268-62011 · 16268-74010 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-62010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-62010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96135-41300 |
| 16321 | water inlet | 16321-03020 · 16321-62010 · 16321-88360 |
| 16322 | PIPE, WATER INLET | 16322-62010 |
| 16322A | O-RING, WATER INLET | 96711-35031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-63010 |
| 16331 | Water outlet | 16304-03030 · 16304-74030 · 16331-62011 |
| 16331A | thermostat | 90916-03046 · 90916-03060 · 90916-03075 |
| 16331B | Screw plug (for water outlet) | 90345-53007 · 90345-53009 |
| 16341 | GASKET, WATER OUTLET | 16341-62020 · 16341-62030 · 16341-63010 · 16341-63011 |
| 16347D | water bypass liner | 16347-62020 |
| 16351 | water bypass outlet | 16351-62021 |
| 16360 | Blower assembly with hood | 88590-03020 |
| 16361 | Fan | 16361-03010 · 16361-03020 · 16361-07010 |
| 16362 | Fan No. 2 | 88453-03020 |
| 16363 | cooling fan motor | 16363-03010 · 16363-03020 · 16363-07010 |
| 16381 | Fan belt adjustment lever | 16381-62012 |
| 16384 | Fan belt adjustment lever bracket | 16384-62010 · 16384-62021 |
| 16385 | Fan belt adjustment slider | 16385-62010 |
| 16400 | Radiator assembly | 16400-03012 · 16400-03021 · 16400-07010 · 16400-07020 · 16400-62060 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34002 |
| 16400F | Seal (for radiator drain switch) | 90080-30011 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-07010 · 16403-62050 |
| 16406A | Bracket (for transmission oil cooler) | 16406-62060 |
| 16441 | Radiator water tank | 16441-07010 · 16441-62050 |
| 16442 | O-ring (for radiator tank) | 16462-07010 · 16462-62050 |
| 16443 | Radiator upper tank locking plate | 16463-07010 |
| 16451 | Radiator core upper plate | 16452-07010 · 16452-62050 |
| 16452 | Radiator core lower plate | 16452-07010 · 16452-62050 |
| 16461 | Radiator lower tank | 16461-07010 · 16461-07020 · 16461-62060 |
| 16462 | O-ring (for radiator lower tank) | 16462-07010 · 16462-62050 |
| 16463 | Radiator lower tank locking plate | 16463-07010 |
| 16470 | Radiator reservoir assembly | 16470-03010 · 16470-62021 · 16470-74040 · 16470-74041 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12078 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-03010 · 16405-62011 · 16405-74030 · 16405-74031 |
| 16472 | Breather hose | 85338-74040 |
| 16491 | Oil cooler (for ATM) | 16491-07010 · 16491-62060 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-07010 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-07010 · 16493-62060 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-07010 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-07010 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-07010 · 16495-62060 |
| 16533 | Radiator upper bracket | 16533-64071 · 16533-74040 |
| 16535 | Radiator lower support | 16535-62010 · 16535-64021 · 16535-74030 |
| 16571 | Radiator water inlet hose | 16571-03020 · 16571-62010 · 16571-74050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33002 · 90467-37002 |
| 16572 | Radiator outlet hose | 16572-03020 · 16572-62010 · 16572-74050 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33002 · 90467-34003 |
| 16611 | Radiator reservoir bracket | 16611-74030 |
| 16701 | Fan cover sub-assembly | 16711-03010 · 16711-03020 · 16711-07010 |
| 16712 | No. 2 fan cover | 88454-03020 |
| 88550F | Blower motor assembly | 88550-03020 |
