Toyota CAMRY Standard Tools — Figure 0901

Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.

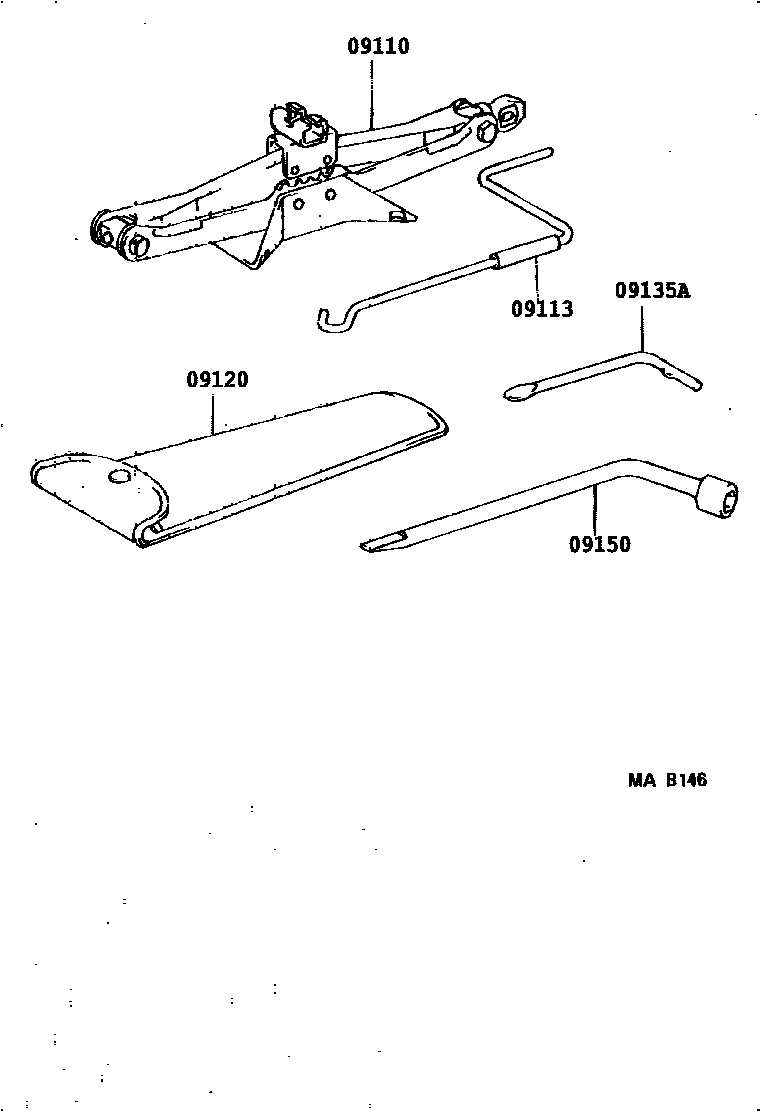

Toyota CAMRY Standard Tools EPC diagram — 090587
Standard Tools — 090587 (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-03010 · 09111-03011 · 09111-20060
09113Jack Handle09113-03010
09120Tool Bag09120-32010
09135Ascrewdriver tip09135-03010
09150Wheel Nut Wrench09150-03011
