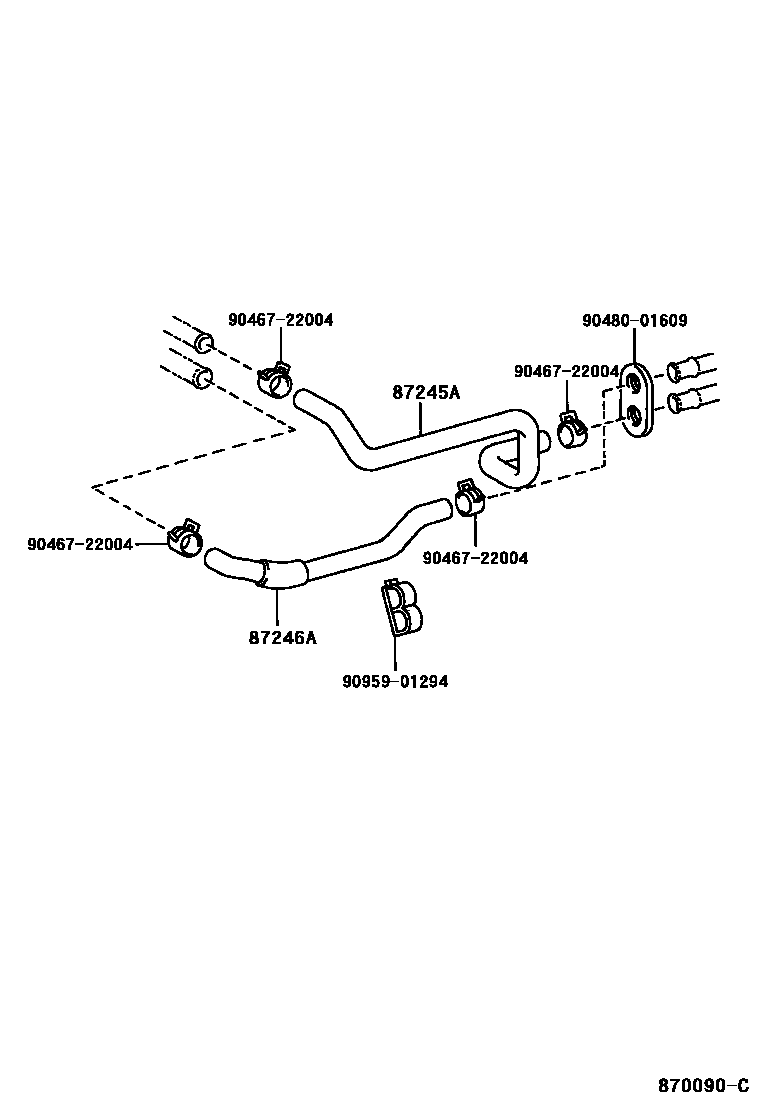

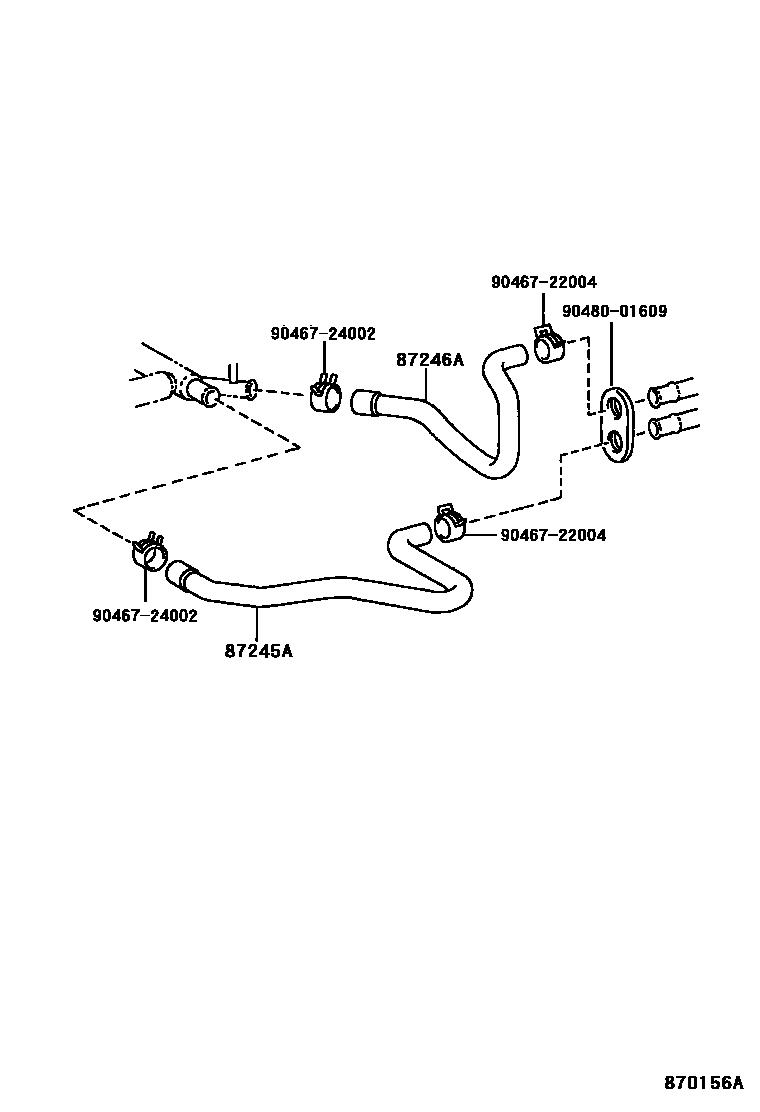

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-33170 · 87245-33171 · 87245-33210 · 87245-33370 |
| 87246A | Heater outlet hose A | 87245-33180 · 87245-33181 · 87245-33220 · 87245-33380 |
