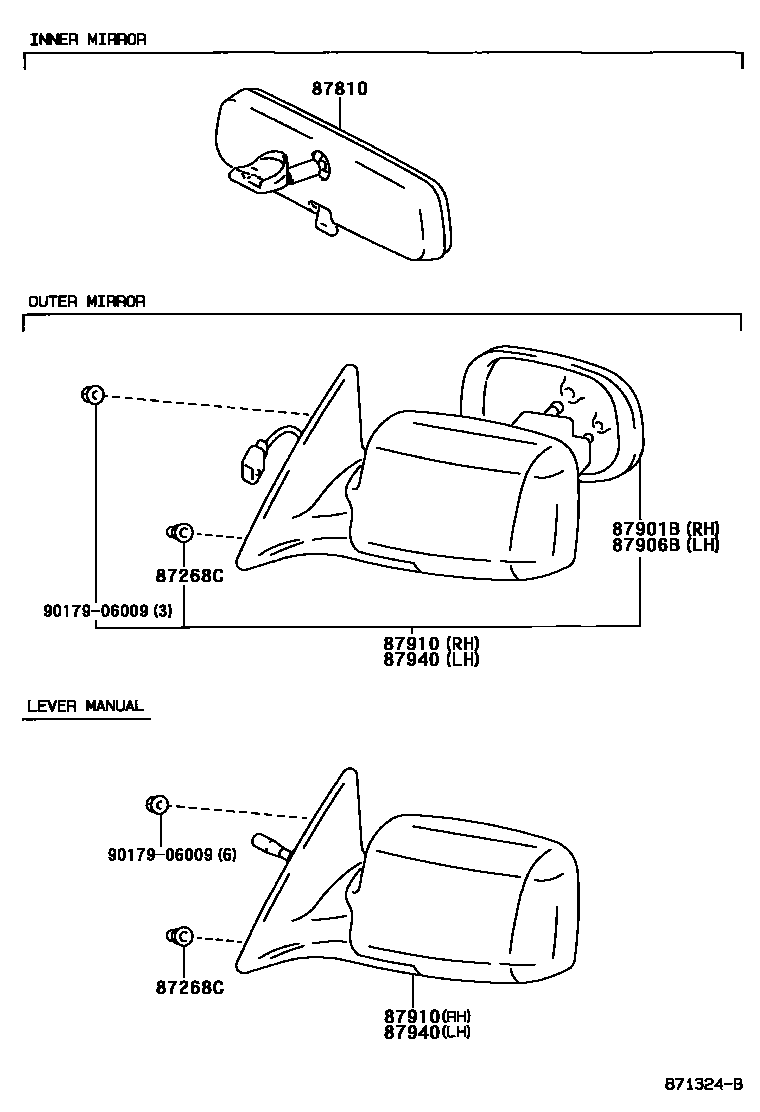

Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87268C | Exterior mirror protection device | 87268-33010 |
| 87810 | Interior rearview mirror assembly | 87810-AA010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-33150 · 87931-33280 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-33150 · 87961-33230 |
| 87910 | Right exterior rearview mirror assembly | 87910-AA030 |
| 87940 | Left exterior rearview mirror assembly | 87940-AA030 |
