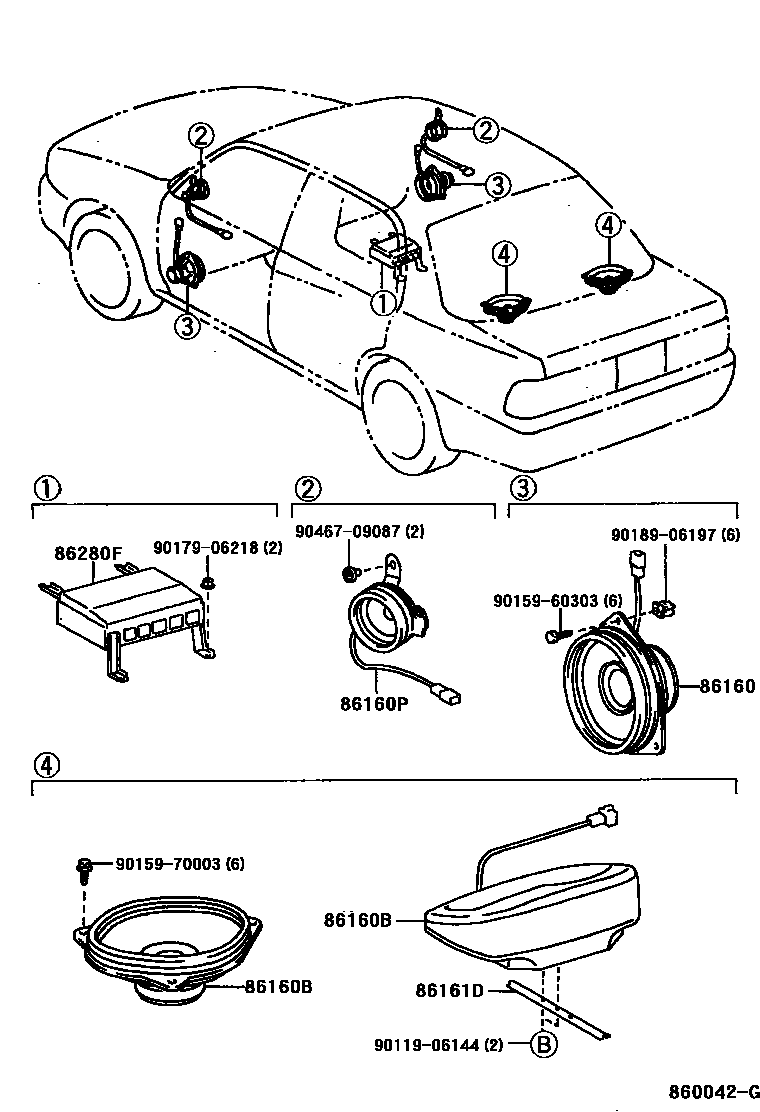

Toyota CAMRY 扬声器 — Figure 8602
Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-AA040 · 86160-AA090 · 86160-AA091 · 86160-AA250 |
| 86160B | Rear speaker assembly | 86160-33580 · 86160-33590 · 86160-AA060 · 86160-AA100 · 86160-AA101 · 86160-AA260 |
| 86160P | No. 2 front speaker assembly | 86160-AA070 · 86160-AA080 · 86160-AA210 · 86160-AA220 · 86160-AA270 · 86160-AA280 |
| 86161D | Speaker 1 mounting bracket | 86161-33010 |
| 86280F | Stereo parts amplifier assembly | 86280-AA020 · 86280-AA021 · 86280-AA040 |
