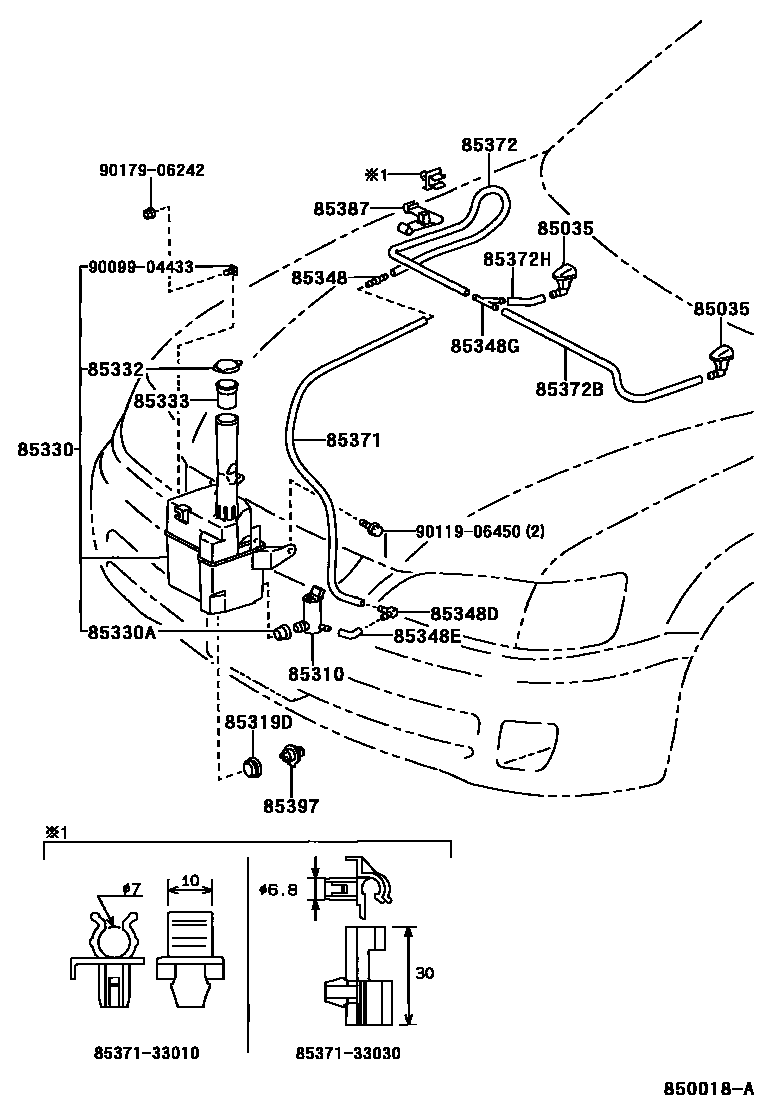

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12050 · 85381-AA020 · 85381-AA030 |
| 85310 | Windshield washer motor and pump assembly | 85330-33020 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-33230 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-33050 |
| 85333 | Windshield washer fluid tank filter | 85333-12470 |
| 85348 | Windshield washer hose connector No. 1 | 85334-22470 |
| 85348D | No. 1 windshield washer elbow joint | 85355-32110 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12410 |
| 85348G | Windshield washer hose connector No. 2 | 85348-14390 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33920 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-22410 |
| 85397 | Liquid level warning switch assembly | 85397-33230 |
