Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.

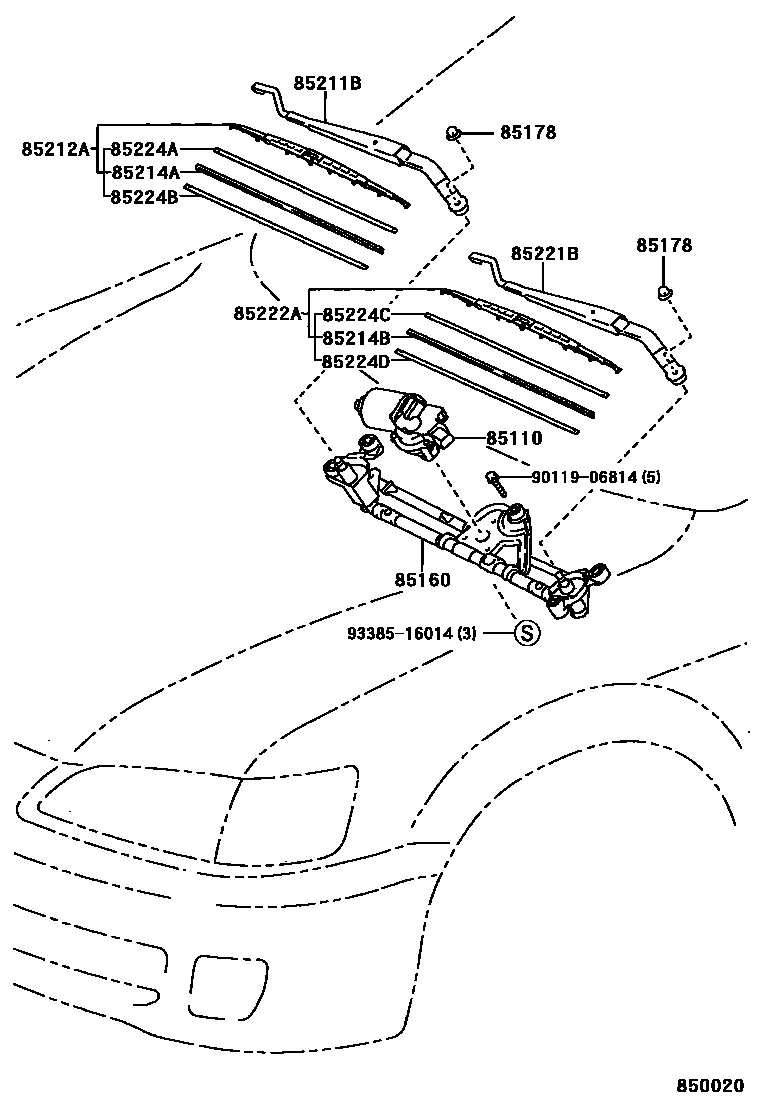

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 850020
挡风玻璃刮水器 — 850020 (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-AA020
85160Windshield wiper connecting rod assembly85150-AA020
85178Nut (for securing front wiper arm)90176-10005
85211BRight front wiper arm85211-33180
85212ARight front wiper blade85212-33120
85214ARight wiper rubber strip85214-35040
85214BLeft wiper rubber strip85214-20280
85221BLeft front wiper arm85221-33130
85222ALeft front wiper blade85222-33160
85224ANo. 1 wiper rubber strip back plate85224-35040
85224BNo. 2 wiper rubber strip back plate85224-35040
85224CNo. 3 wiper rubber strip back plate85224-20280
85224DNo. 4 wiper rubber strip back plate85224-20280
