Toyota CAMRY 遥控门锁 — Figure 8420

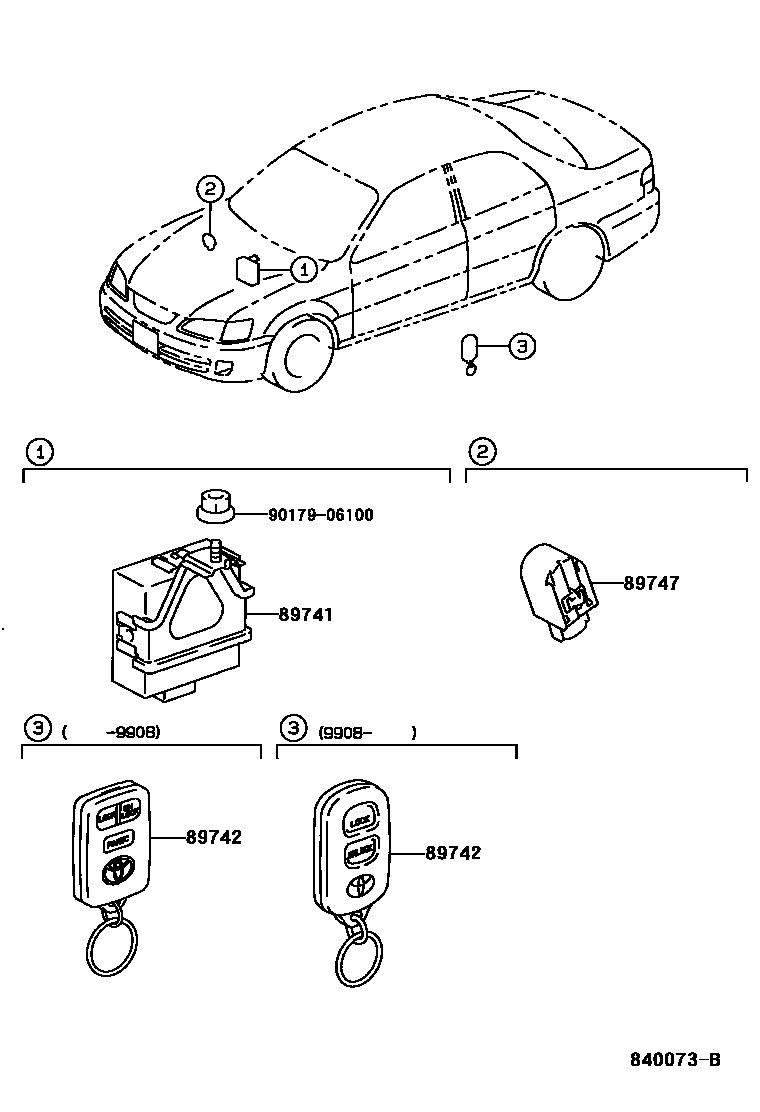

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89741-06010 · 89741-AA010 |
| 89742 | remote key | 89742-06010 · 89742-AA010 |
| 89747 | Remote door lock buzzer | 89747-51010 |
