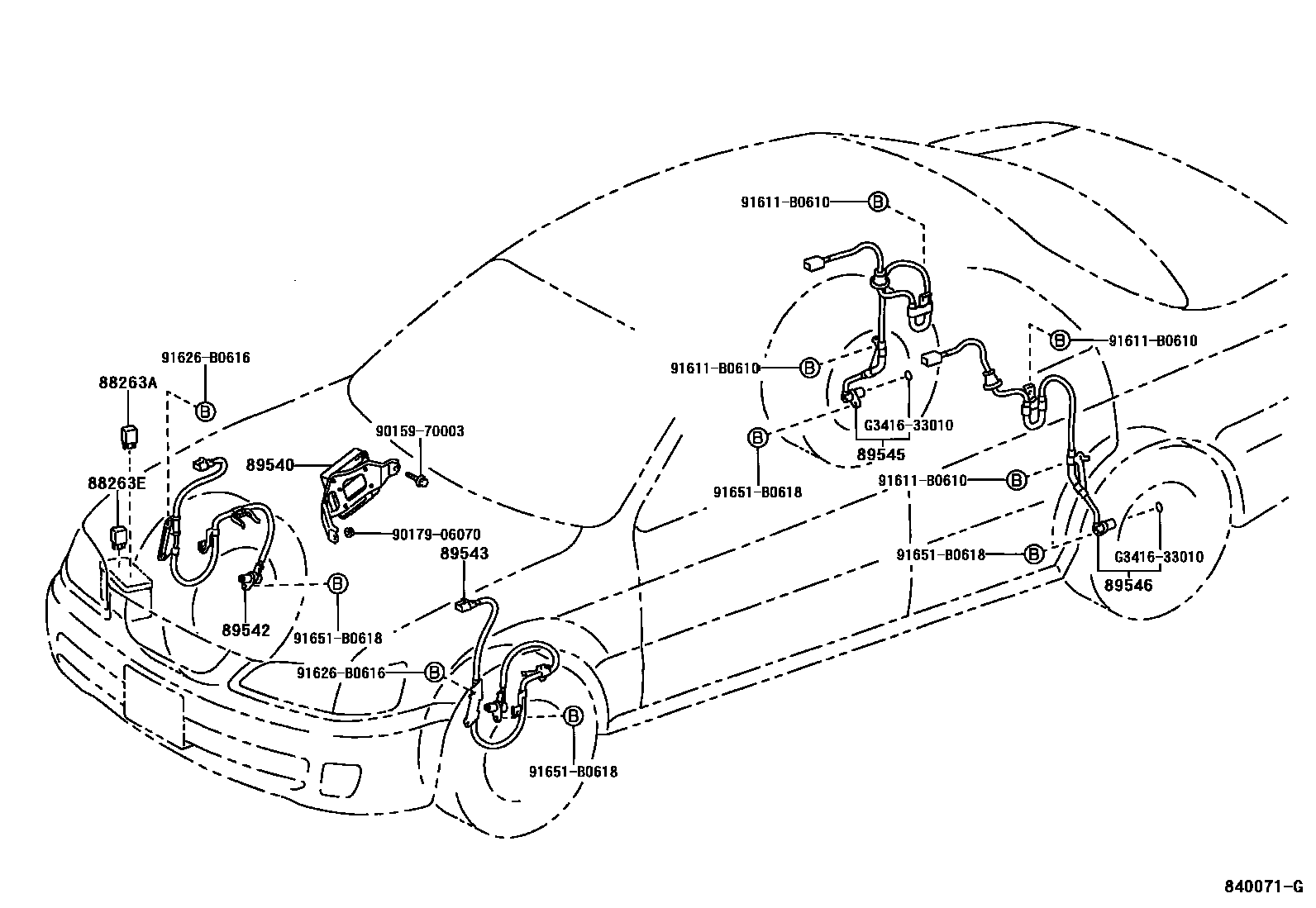

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-14110 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 89540 | Anti-skid control ECU assembly | 89540-33030 · 89540-33031 · 89540-33041 · 89540-33070 · 89540-33080 · 89540-33090 · 89540-33110 · 89540-33120 · 89540-33170 · 89540-33200 |
| 89542 | Right front wheel speed sensor | 89542-33030 |
| 89543 | Left front wheel speed sensor | 89543-33030 |
| 89545 | Right rear wheel speed sensor | 89545-33020 |
| 89546 | Left rear wheel speed sensor | 89546-33020 |
