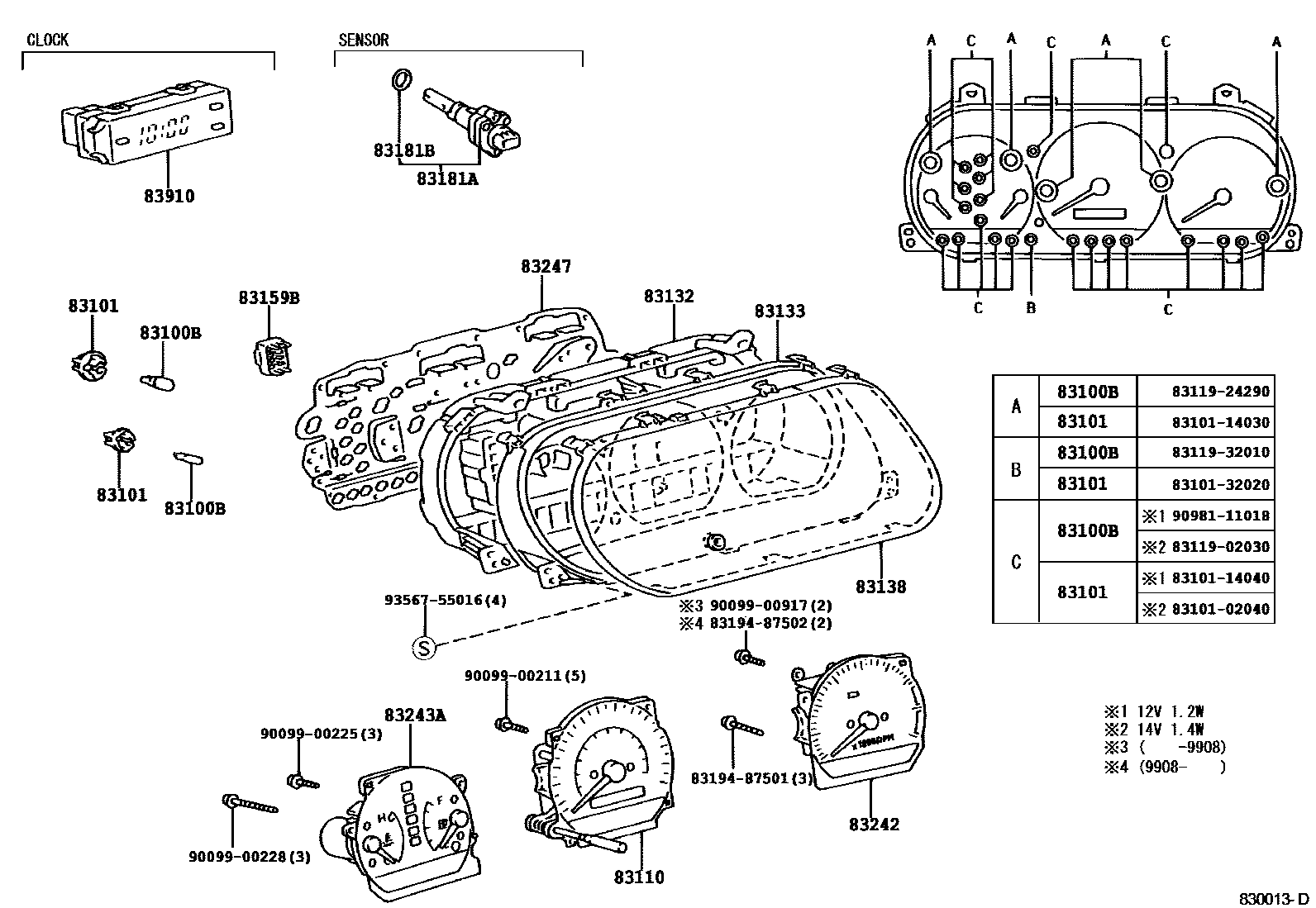

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-24020 · 83119-02030 · 83119-24290 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-02040 · 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83220-06010 · 83220-06011 · 83220-33100 · 83220-33101 · 83220-33181 |
| 83132 | Instrument cluster housing | 83841-06050 · 83841-33030 · 83841-33050 |
| 83133 | Combined instrument panel No. 1 | 83811-06010 · 83811-33030 |
| 83138 | speedometer glass | 83852-06010 · 83852-33030 |
| 83159B | Instrument relay assembly | 83159-22170 |
| 83181A | speedometer sensor | 83181-12030 · 83181-12040 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 |
| 83242 | Engine tachometer assembly | 83881-06010 · 83881-06020 · 83881-06030 · 83881-06040 · 83881-33280 · 83881-33290 · 83881-33300 · 83881-33310 · 83881-33370 |
| 83243A | Fuel gauge sub-assembly | 83882-06050 · 83882-33280 · 83882-33320 · 83882-33370 |
| 83247 | Instrument circuit board | 83861-06010 · 83861-06050 · 83861-33280 · 83861-33320 |
| 83910 | clock assembly | 83910-33030 · 83910-33050 · 83910-AA010 |
