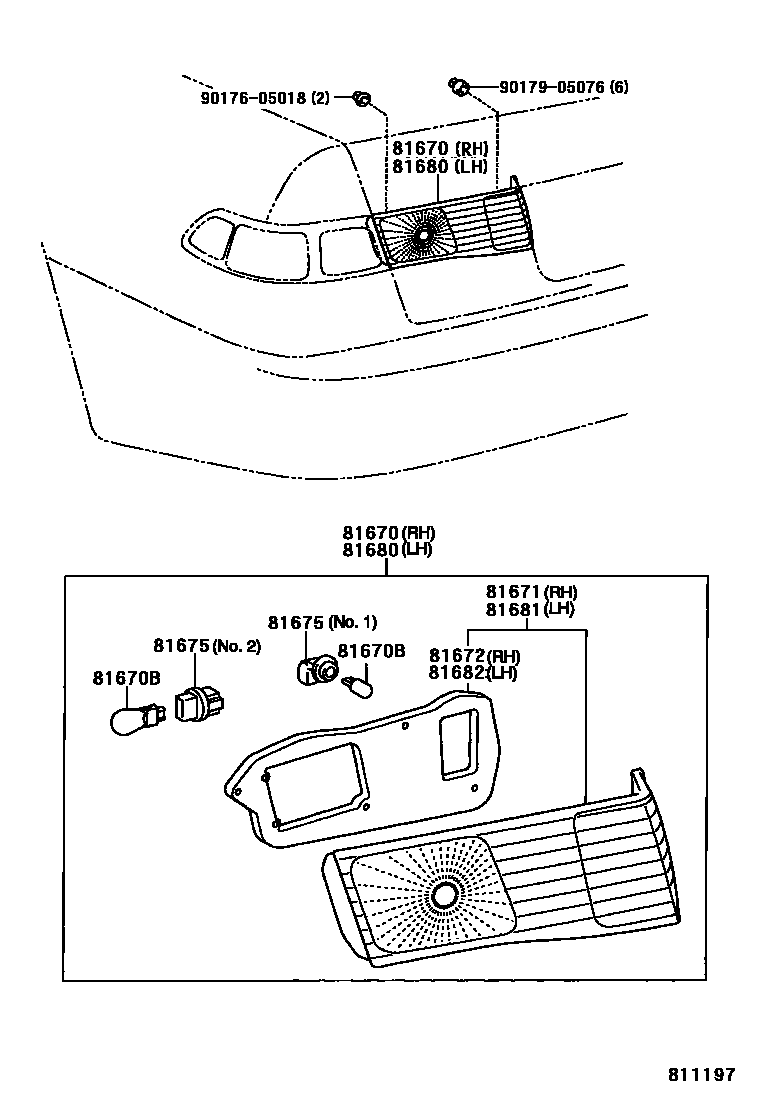

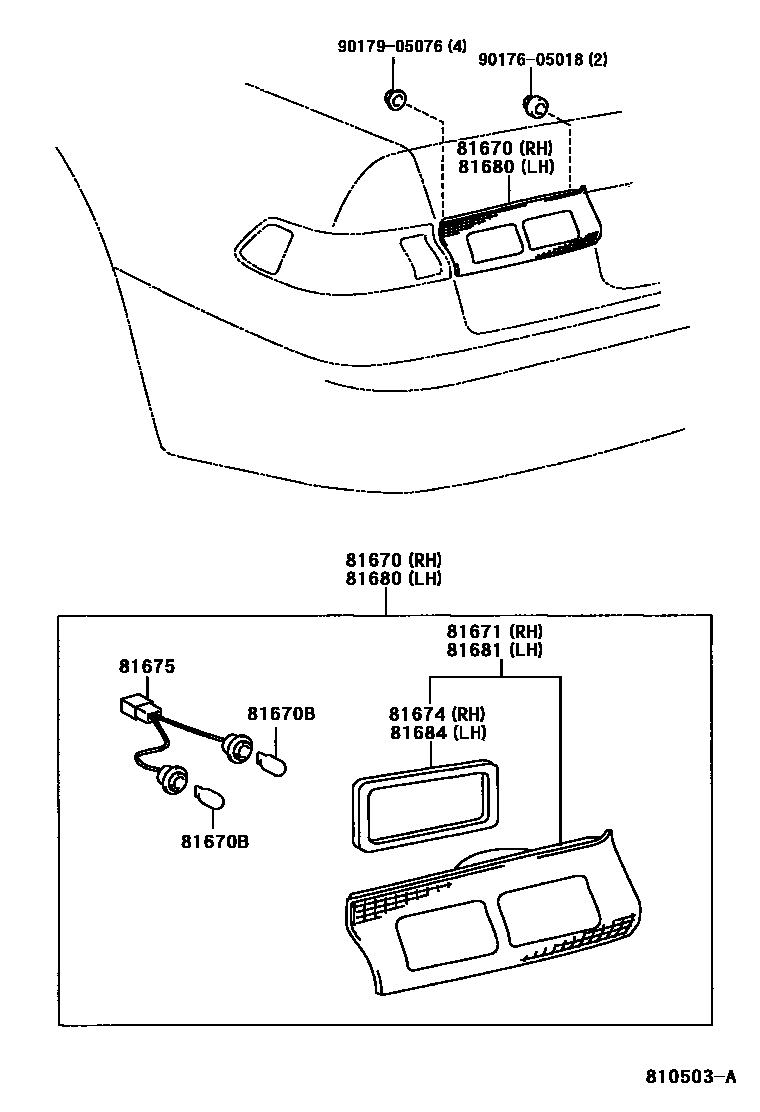

Toyota CAMRY 倒车灯 — Figure 8112
Toyota CAMRY EPC diagram 8112, 倒车灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-AA010 · 81670-AA030 |
| 81670B | Bulb (for reversing lights) | 90080-81065 · 90084-98037 · 90084-98039 · 90084-98040 |
| 81671 | Right reversing light cover | 81671-AA010 · 81671-AA030 |
| 81672 | Right reversing light cover gasket | 81672-AA030 |
| 81674 | Right reversing light body gasket | 81674-AA010 |
| 81675 | Reversing light holder and wiring harness | 81675-AA010 · 90069-81004 · 90075-60037 · 90075-99005 |
| 81680 | Left reversing light assembly | 81680-AA010 · 81680-AA030 |
| 81681 | Left reversing light cover | 81681-AA010 · 81681-AA030 |
| 81682 | Left reversing light cover gasket | 81672-AA030 |
| 81684 | Left reversing light body gasket | 81684-AA010 |
