Toyota CAMRY 后组合灯 — Figure 8111

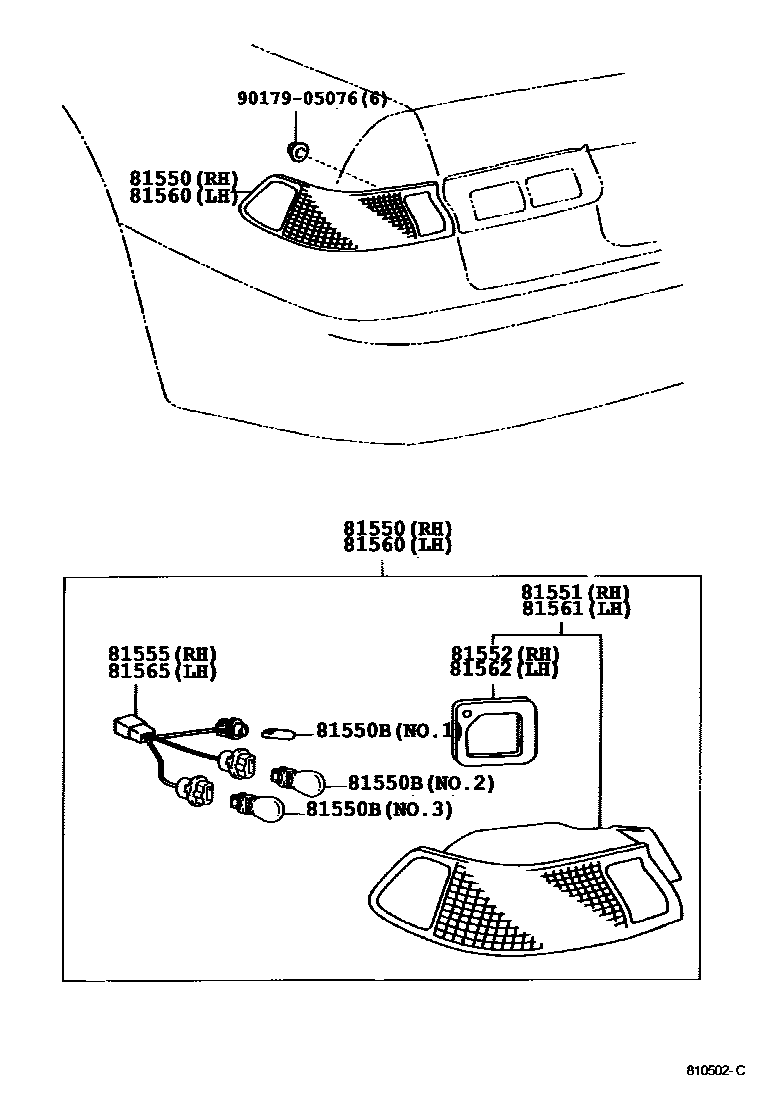

Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-AA011 · 81550-AA030 |
| 81550B | Bulb (for rear combination lights) | 90084-98036 · 90084-98037 · 90084-98043 · 90981-11020 |
| 81551 | Right rear combination lamp shade | 81551-AA010 · 81551-AA030 |
| 81552 | Right rear combination lamp shade gasket | 81552-AA010 · 81552-AA030 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-AA010 · 81555-AA030 |
| 81560 | Left rear combination light assembly | 81560-AA011 · 81560-AA030 |
| 81561 | Left rear combination lamp shade | 81561-AA010 · 81561-AA030 |
| 81562 | Left rear combination lamp shade gasket | 81562-AA010 · 81562-AA030 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-AA010 · 81555-AA030 |
