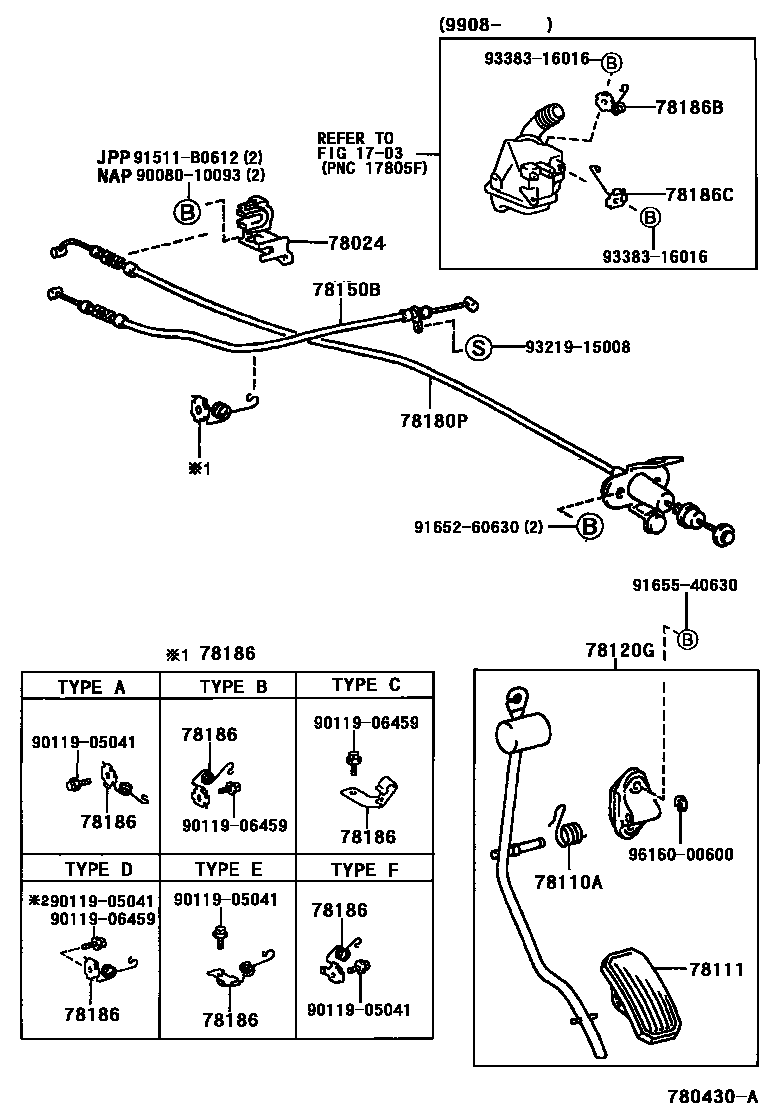

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-33030 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26062 · 90959-03120 |
| 78111 | accelerator pedal | 78111-33010 |
| 78120G | Accelerator pedal lever assembly | 78120-33060 · 78120-33070 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-33070 · 78150-33080 · 78150-33110 |
| 78180P | Accelerator pedal control cable assembly | 78180-33190 · 78180-33201 · 78180-33220 · 78180-33240 · 78180-33270 · 78180-33310 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-33030 · 78186-33040 · 78186-33050 · 78186-33060 · 78186-33080 · 78186-33120 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-33090 · 78186-33130 |
| 78186C | No. 3 accelerator pedal control cable bracket | 78186-33110 |
