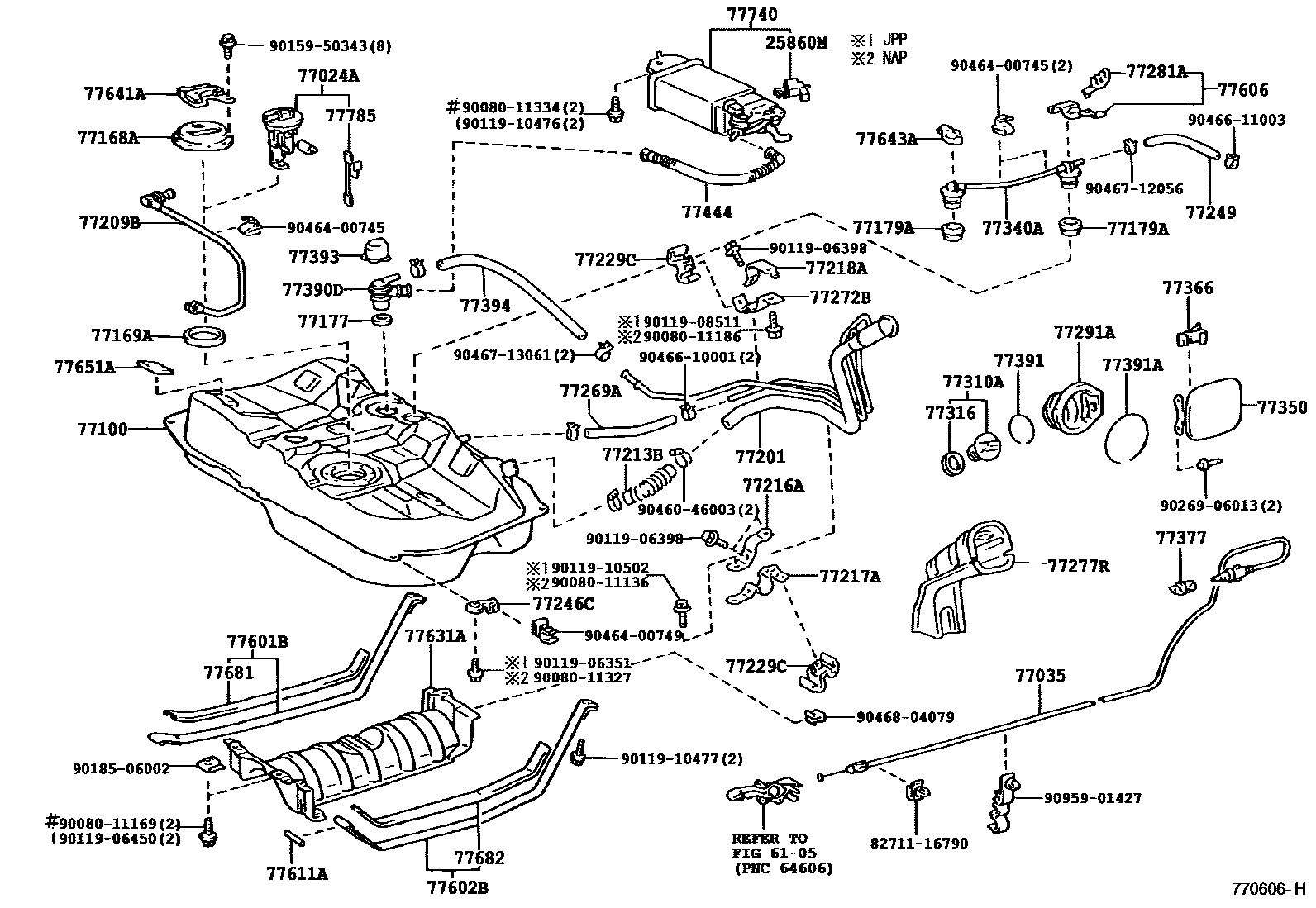

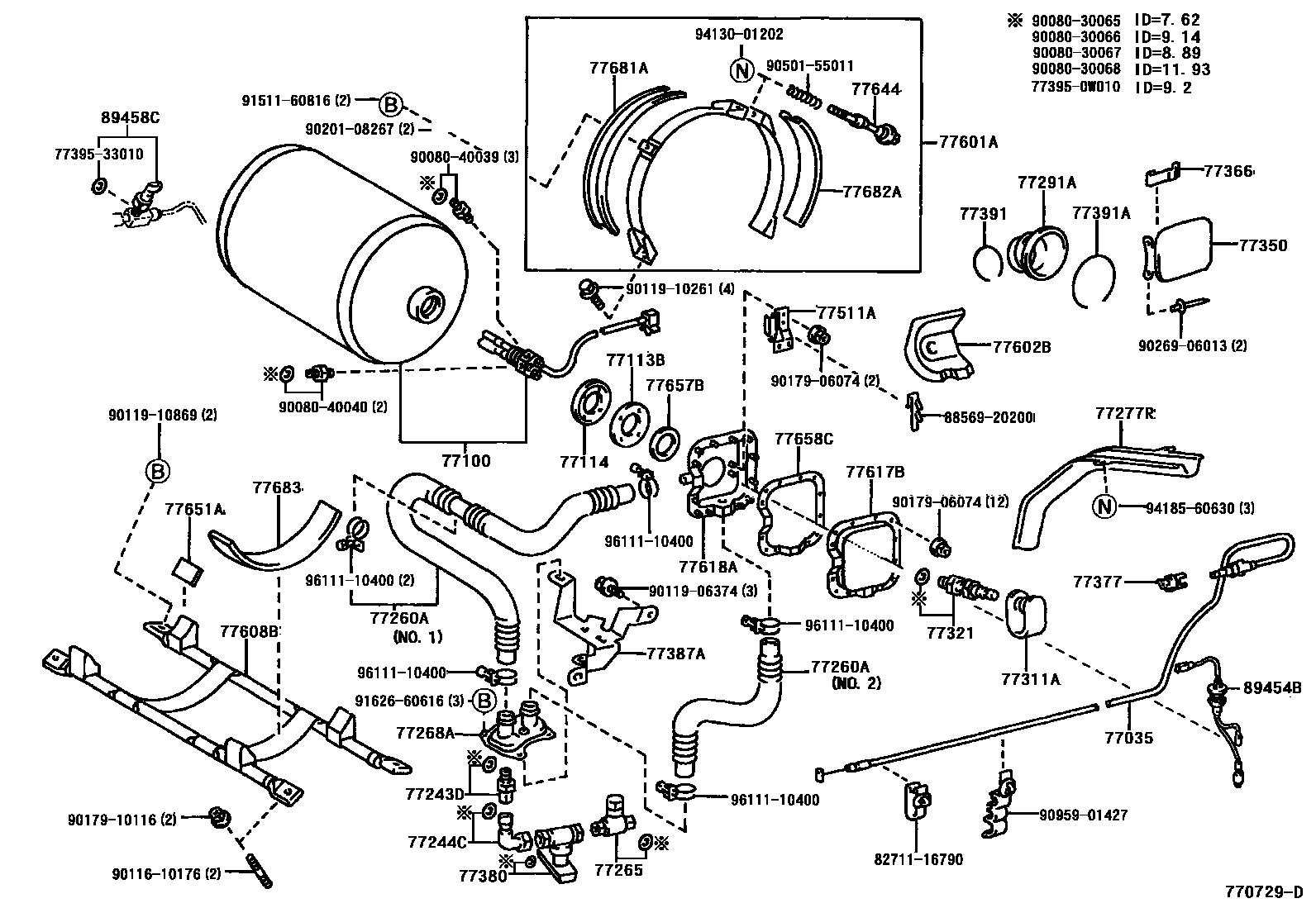

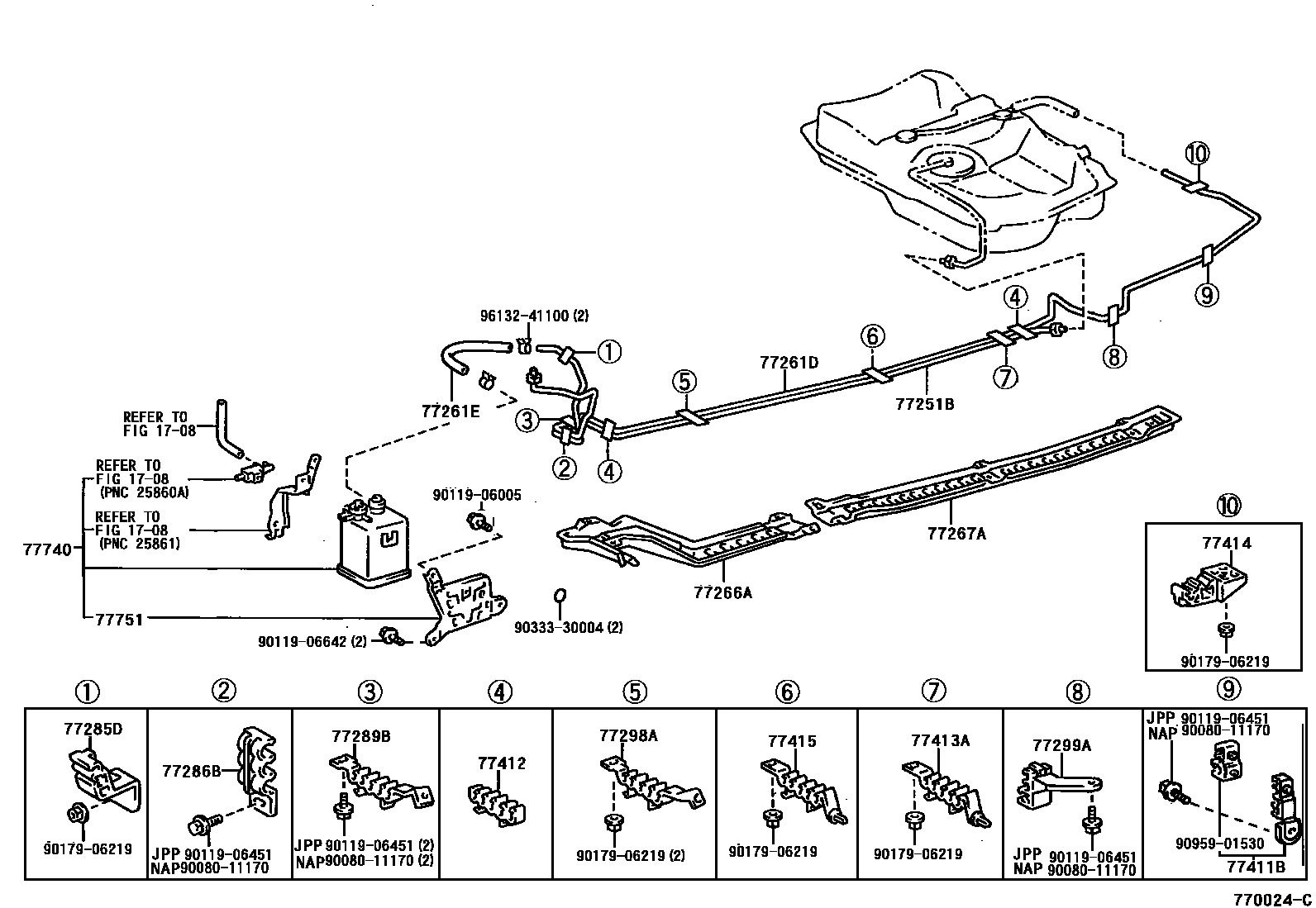

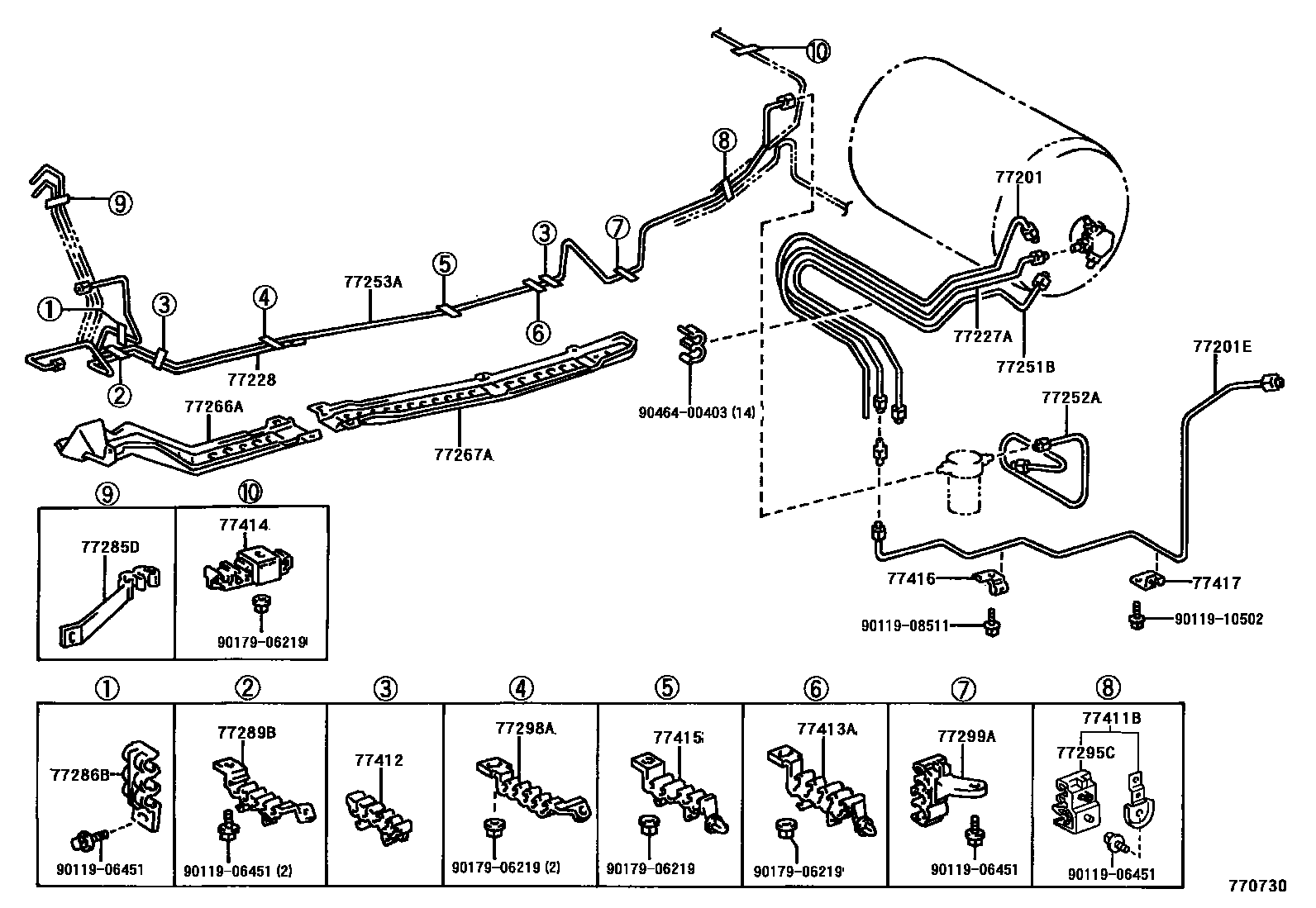

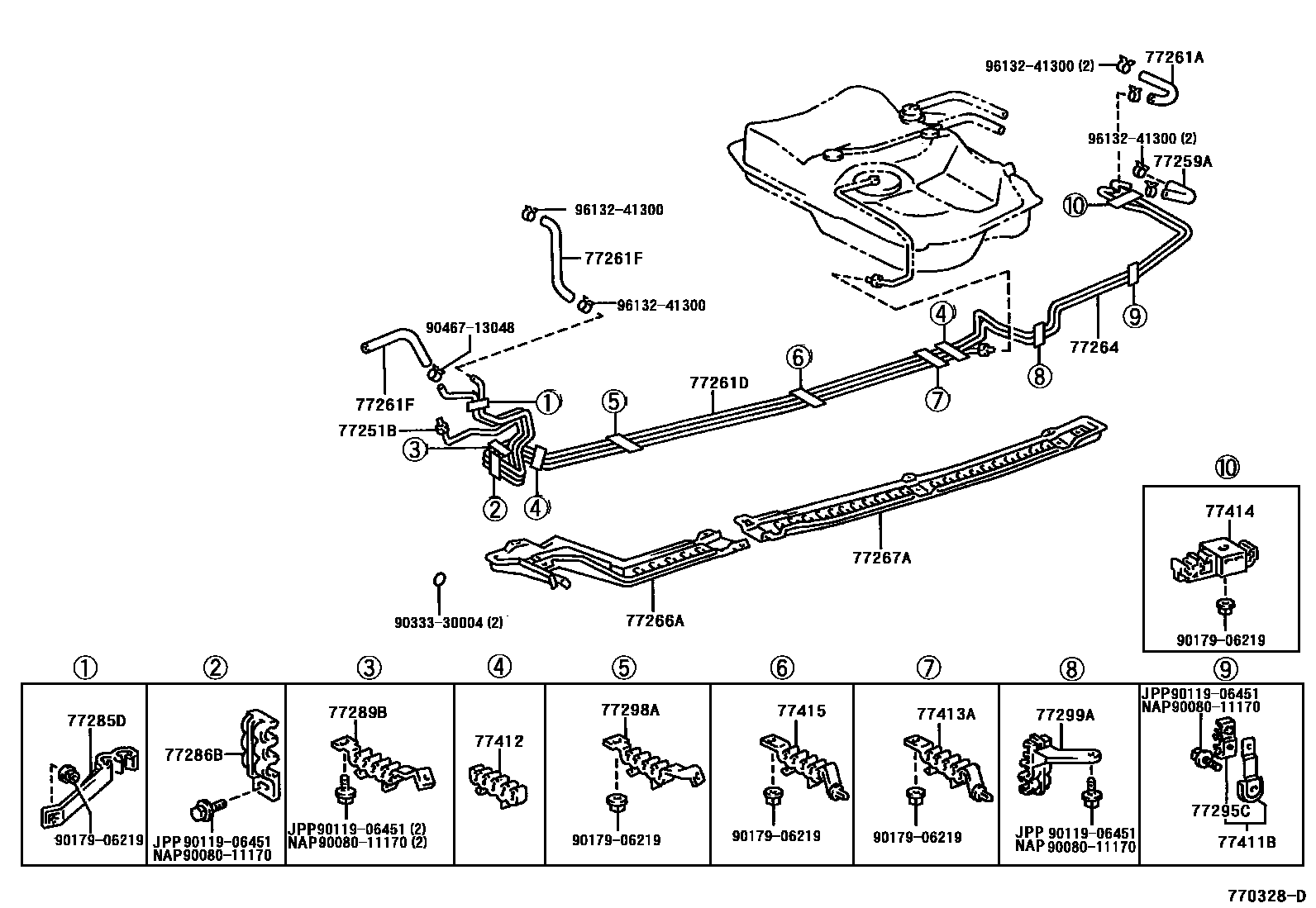

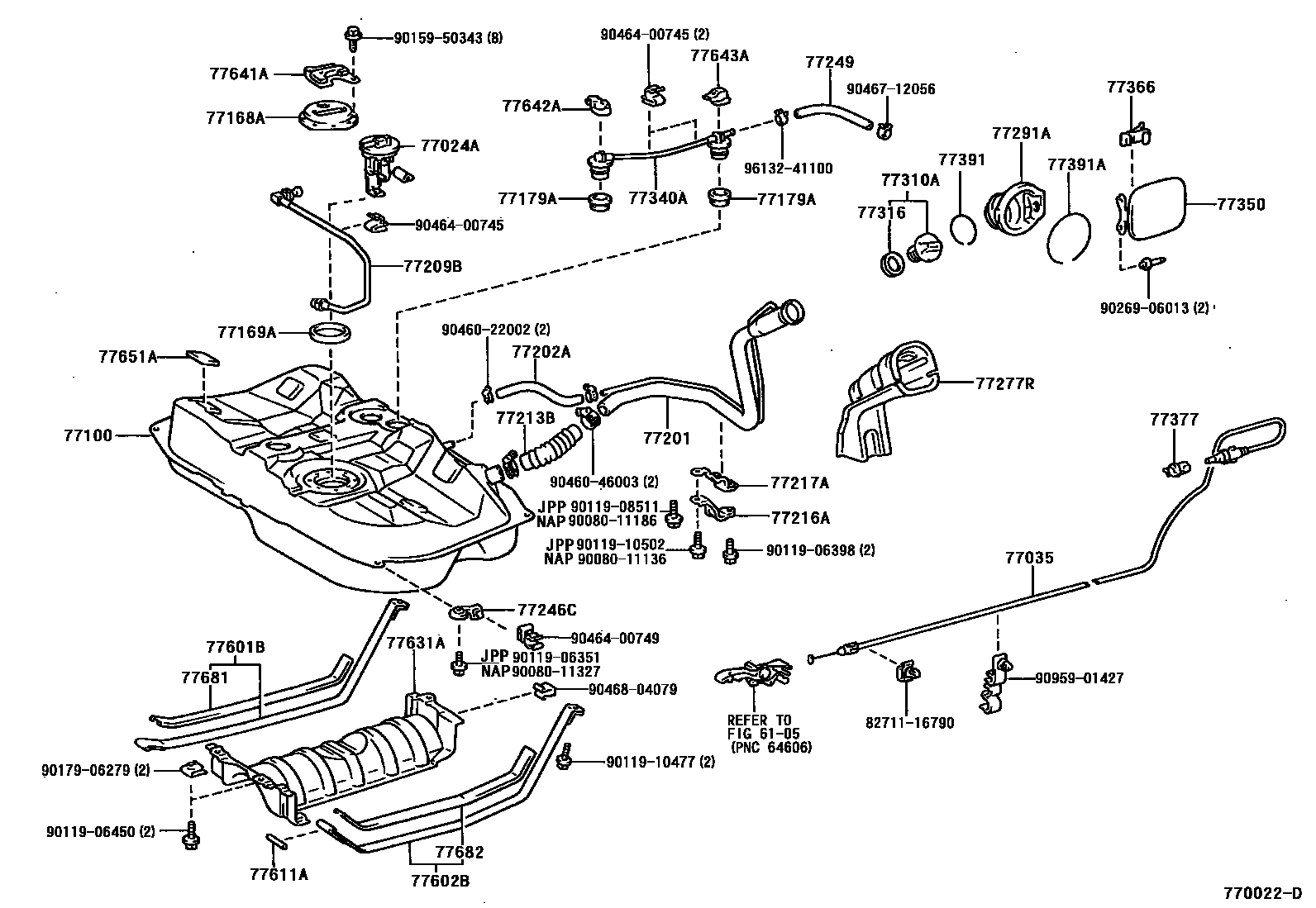

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25860M | Vacuum switch valve assembly | 90910-12109 · 90910-12198 |
| 77024A | Fuel absorber sub-assembly | 77024-33010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33080 |
| 77100 | fuel tank assembly | 77001-0W010 · 77001-33070 · 77001-39335 · 77001-39355 · 77001-39385 |
| 77113B | fuel tank side panel | 77113-33010 |
| 77114 | Fuel tank rear side panel | 77114-33010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33010 |
| 77177 | Check valve gasket | 77177-33010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33020 · 77201-33080 · 77211-33070 |
| 77201E | Fuel tank filling pipe sub-assembly | 77212-33020 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95312-13024 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33010 |
| 77213B | Fuel tank to filler pipe hose | 77213-06010 · 77213-33050 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33010 · 77216-41020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33010 · 77217-41010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-33020 |
| 77227A | fuel tank evaporation vent pipe | 77227-33040 |
| 77229C | Snorkel clamp | 77229-33040 |
| 77243D | No. 1 fuel pipe joint | 77243-0W010 |
| 77244C | No. 2 fuel pipe joint | 77244-0W010 |
| 77246C | Main fuel pipe bracket | 77246-33010 |
| 77249 | fuel drain hose | 95327-06030 · 95337-06018 |
| 77251B | main fuel pipe | 77251-33050 · 77251-33080 |
| 77252A | No. 2 main fuel pipe | 77252-33010 |
| 77253A | No. 3 main fuel pipe | 77253-33010 |
| 77259A | Fuel hose (for breather pipe) | 77419-33020 |
| 77260A | Fuel tank valve cover air duct assembly | 77260-33010 · 77261-33090 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-33040 · 77261-33060 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-33060 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77279-33030 · 95328-07022 · 95333-08030 |
| 77264 | Carbon canister to front side member pipe | 77264-33010 · 77264-33030 · 77264-33040 |
| 77265 | Main fuel line connector | 77265-0W010 |
| 77266A | No. 1 fuel line protection device | 77266-33020 |
| 77267A | No. 2 fuel pipe protection device | 77267-33020 |
| 77268A | No. 3 fuel pipe protection device | 77266-33030 |
| 77269A | fuel tank breather hose | 77269-33010 |
| 77272B | No. 1 snorkel holder | 77272-33010 |
| 77277R | Fuel tank filler pipe protection device | 77277-33040 · 77277-33041 · 77277-33060 |
| 77281A | Fuel filler pipe clamp | 77281-33010 |
| 77285D | No. 1 fuel pipe clamp | 77285-33020 · 77285-33030 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-33010 · 77286-33020 |
| 77289B | No. 3 fuel pipe clamp | 77289-33020 · 77289-33030 |
| 77291A | Fuel tank filler pipe cover | 77291-33010 |
| 77295C | Fuel pipe retaining ring | 77295-33010 · 90959-01530 |
| 77298A | No. 4 fuel pipe clamp | 77298-33020 · 77298-33030 |
| 77299A | No. 5 fuel pipe clamp | 77299-33020 · 77299-33030 |
| 77310A | Fuel tank cap assembly | 77310-12140 · 77310-48020 |
| 77311A | Fuel tank inlet connector cover | 77311-0W010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77321 | Fuel inlet connector | 77321-0W010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-33030 |
| 77366 | Fuel filler cap hinge spring | 77360-22020 · 77360-33020 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77380 | Fuel shut-off valve assembly | 77380-0W010 |
| 77387A | fuel cut-off valve plate | 77387-33020 |
| 77390D | Fuel tank overfill check valve assembly | 77390-33010 · 77390-33011 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77393 | One-way valve protection device | 77393-33010 · 77393-52010 |
| 77394 | Valve to fuel filler hose | 95337-08034 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-33020 · 77411-33030 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-33020 · 77412-33030 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-33020 · 77413-33030 |
| 77414 | No. 4 fuel pipe retaining ring bracket | 77414-33020 · 77414-33030 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-33020 · 77415-33030 |
| 77416 | No. 6 fuel pipe retaining ring bracket | 77416-33030 |
| 77417 | No. 7 fuel pipe retaining ring bracket | 77417-33020 |
| 77444 | fuel tank vent hose | 77404-33010 |
| 77511A | fuel tank bracket | 77511-33010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-33030 · 77601-33031 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33010 · 77602-33030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-33010 |
| 77608B | Fuel tank lower frame sub-assembly | 77608-33030 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77617B | Fuel tank valve rear cover | 77617-33010 |
| 77618A | Fuel tank valve lower cover | 77618-33010 |
| 77631A | Fuel tank center lower protective shell | 77631-33020 · 77631-33021 |
| 77641A | No. 1 fuel tank protective shell | 77641-33010 |
| 77642A | No. 2 fuel tank protective shell | 77642-33010 |
| 77643A | No. 3 fuel tank protective shell | 77643-33010 |
| 77644 | fuel tank bolt | 77644-33010 |
| 77651A | No. 1 fuel tank liner | 77651-33010 · 77652-32030 |
| 77657B | Fuel tank cap vent shell upper seal | 77657-33010 |
| 77658C | Fuel tank cap breather housing lower seal | 77658-33010 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77681A | Fuel tank strap seat | 77681-33010 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77682A | No. 2 fuel tank strap seat | 77682-33010 |
| 77683 | No. 3 fuel tank strap seat | 77683-33010 |
| 77740 | Carbon canister assembly | 77740-33061 · 77740-33062 · 77740-33110 · 77740-33111 · 77740-33120 · 77740-33121 |
| 77751 | Carbon canister base bracket | 77751-41010 |
| 77785 | fuel pump wiring harness | 77785-33020 |
| 89454B | fuel temperature sensor | 89454-33020 |
| 89458C | fuel pressure sensor | 89458-33020 |
