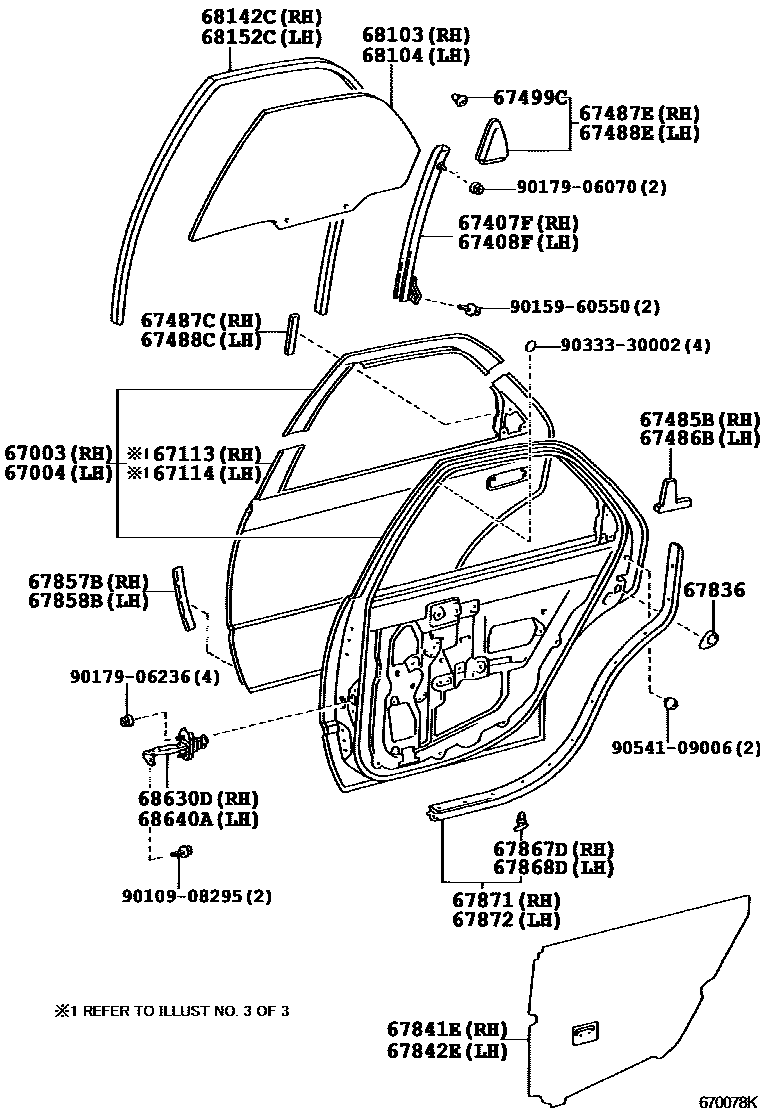

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-33050 |
| 67004 | Left rear door panel sub-assembly | 67004-33050 |

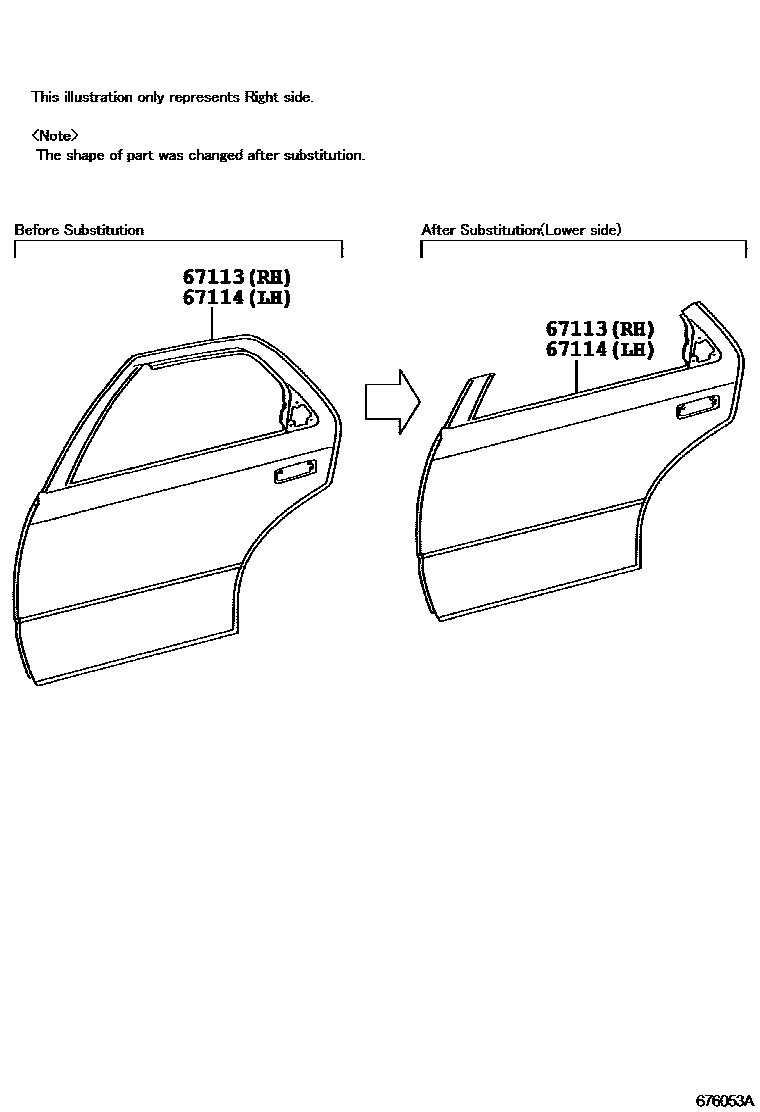

| 67113 | Right rear door outer panel | 67113-33030 |
| 67114 | Left rear door outer panel | 67114-33030 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33020 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33020 |
| 67485B | Right rear door divider inner seal | 67485-33010 |
| 67486B | Left rear door divider inner seal | 67486-33010 |
| 67487C | Right rear door rear rail seal | 67487-33030 |
| 67487E | Right rear door rear rail bracket decorative strip | 67487-33010 |
| 67488C | Left rear door rear rail seal | 67487-33030 |
| 67488E | Left rear door rear guide rail bracket decorative strip | 67488-33010 |
| 67499C | Front door lower door frame bracket trim strip fixing | 67499-12030 · 67499-33010 |

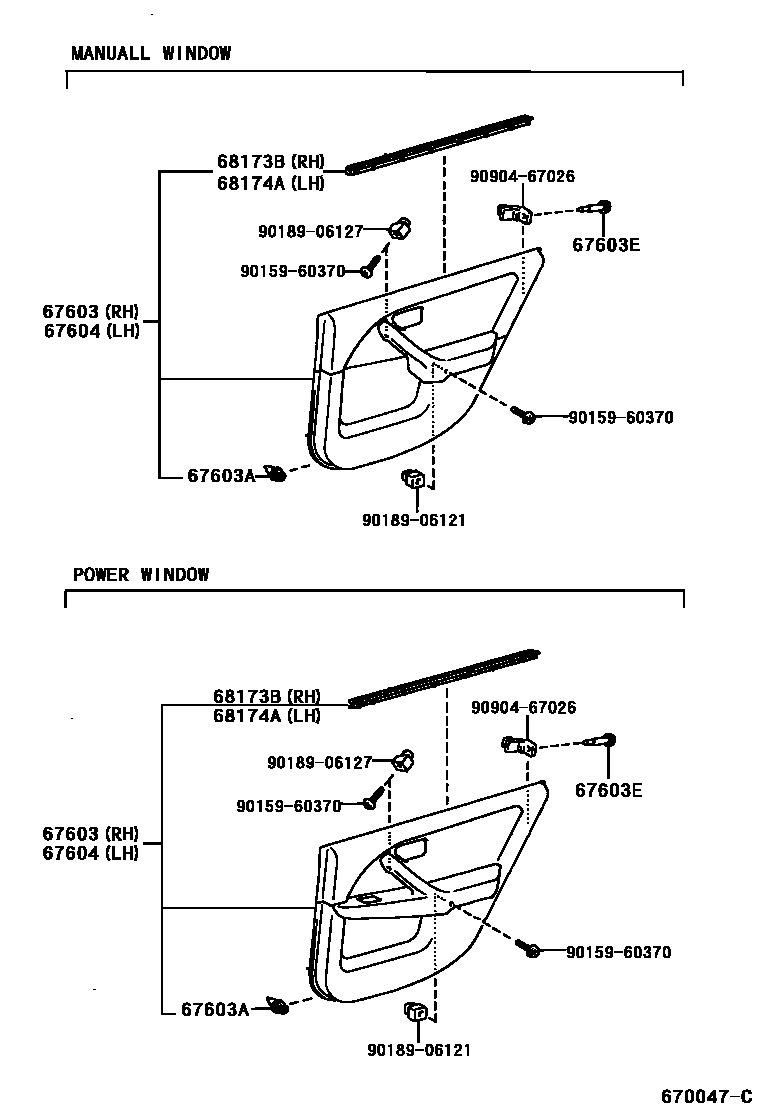

| 67603A | Fixings (for rear door trim) | 67771-12050 · 90467-10161 |
| 67836 | Right rear door lock child restraint cover | 67836-32010 |
| 67841E | Right rear door access hole cover | 67841-33030 |
| 67842E | Left rear door access hole cover | 67842-33030 |
| 67857B | Right rear door panel protector | 67857-33010 |
| 67858B | Left rear door panel protector | 67858-33010 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-33030 |
| 67872 | Left rear door sealing strip | 67872-33030 |
| 68103 | Right rear door glass sub-assembly | 68113-33050 |
| 68104 | Left rear door glass sub-assembly | 68114-33050 |
| 68142C | Right rear door glass lift slot | 68142-33030 |
| 68152C | Left rear door glass lift slot | 68152-33030 |
| 68173B | Right rear door glass inner sealing strip | 68173-33010 |
| 68174A | Left rear door glass inner sealing strip | 68173-33010 · 68174-33020 |
| 68630D | Right rear door opening limiter assembly | 68630-33030 · 68630-33031 |
| 68640A | Left rear door opening limiter assembly | 68640-33030 · 68640-33031 |
