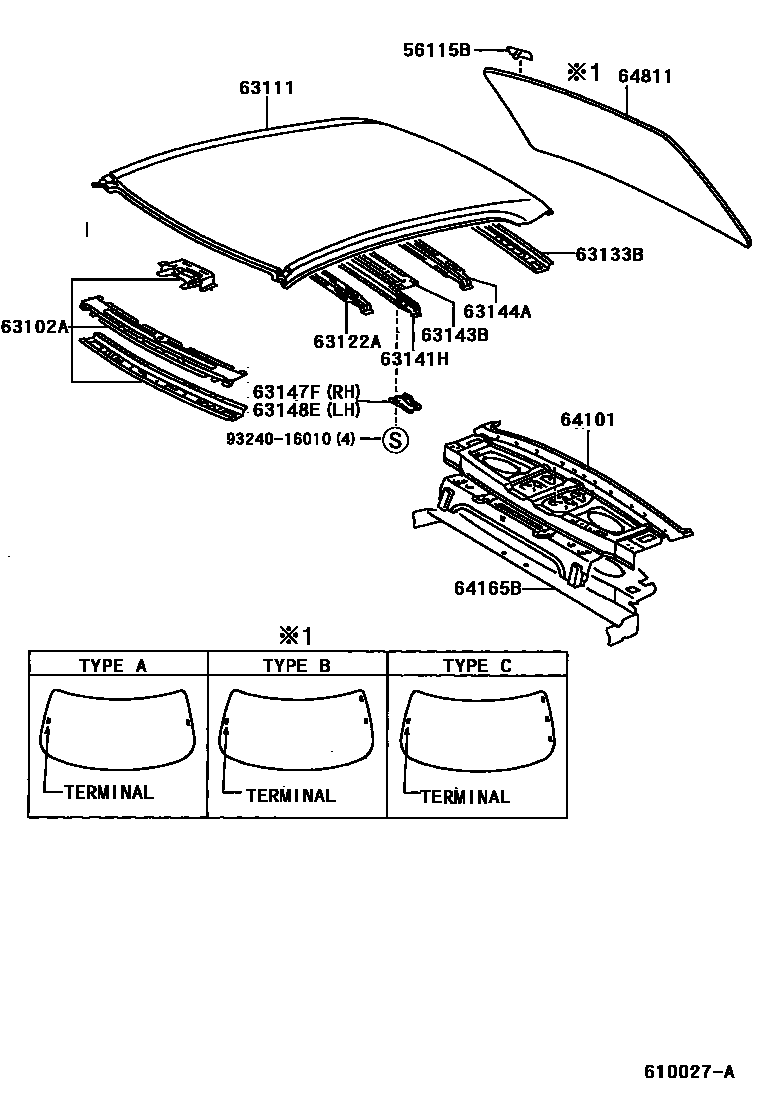

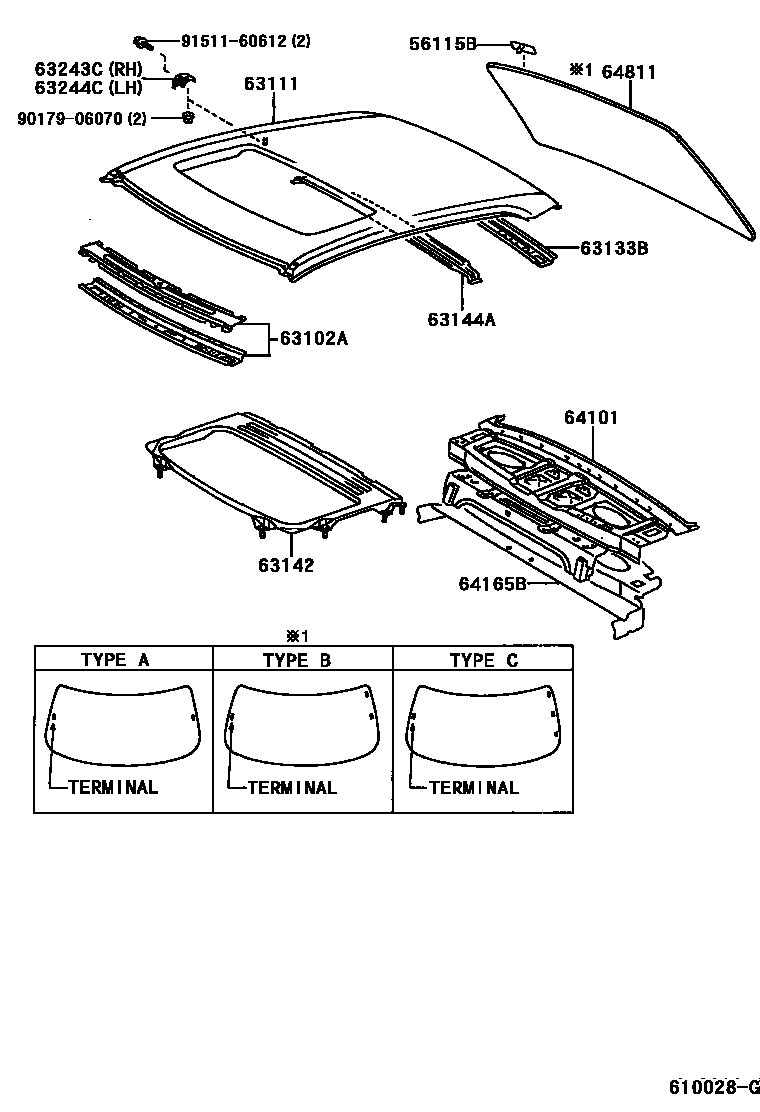

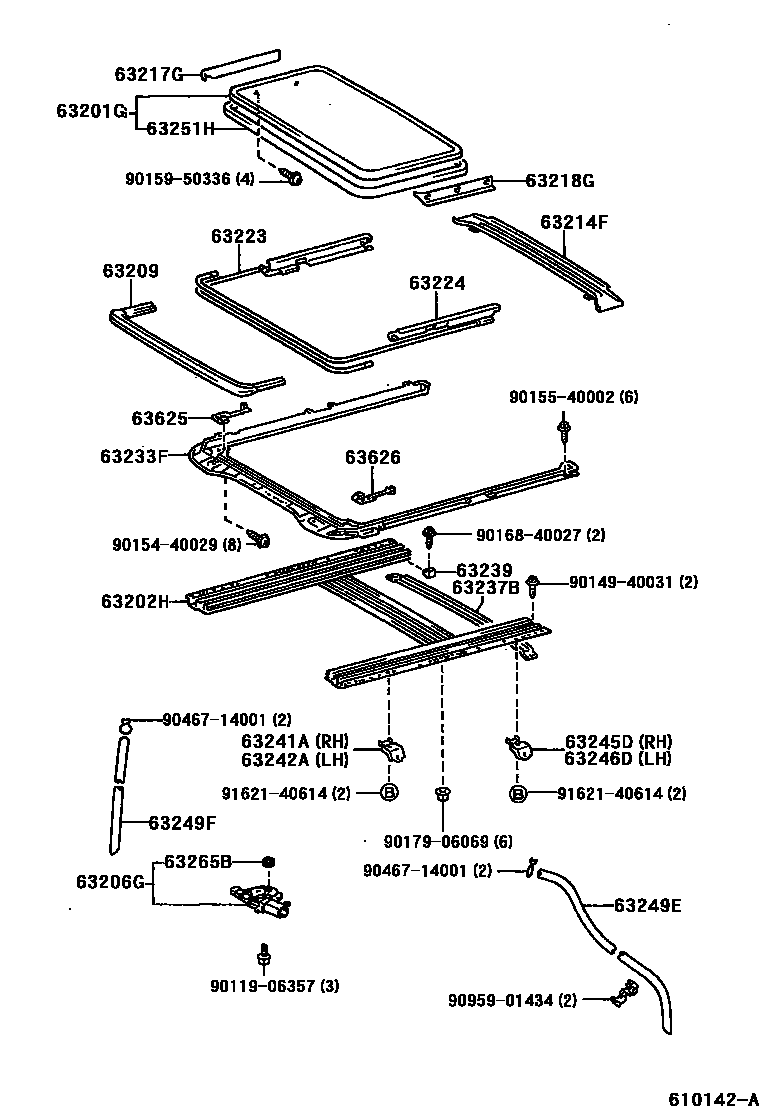

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56116-35040 |
| 63102A | Windshield roof sub-assembly | 63102-33050 · 63102-33051 · 63102-33070 · 63102-33071 |
| 63111 | roof panel | 63111-33110 · 63111-33120 |
| 63122A | Front roof panel reinforcement | 63122-AA010 |
| 63133B | back window frame | 63133-AA020 · 63133-AA030 |
| 63141H | Center roof panel reinforcement | 63141-AA010 · 63141-AA021 |
| 63142 | No. 2 roof panel reinforcement | 63142-33020 |
| 63143B | No. 3 roof panel reinforcement | 63143-AA020 |
| 63144A | No. 4 roof panel reinforcement | 63144-AA020 · 63144-AA030 |
| 63147F | Right roof panel reinforcement bracket | 63147-33010 |
| 63148E | Left roof panel reinforcement bracket | 63147-33010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33050 · 63201-33051 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-33010 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-33010 |
| 63209 | Roof deflector sub-assembly | 63209-33030 · 63209-33080 |
| 63214F | Roof rear drain channel | 63214-33020 |
| 63217G | Right sliding sunroof trim | 63217-33030 |
| 63218G | Sliding sunroof trim, left | 63217-33030 |
| 63223 | Right sliding sunroof transmission cable | 63223-33020 |
| 63224 | Left sliding sunroof transmission cable | 63224-33020 |
| 63233F | Removable skylight frame | 63233-33020 · 63233-33040 |
| 63237B | Rear sliding sunroof frame | 63237-33010 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-33020 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-33020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-33050 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-33050 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-33020 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-33020 |
| 63249E | Sliding skylight drain hose | 63249-33030 · 63249-33031 |
| 63251H | Sliding skylight seal | 63251-33020 · 63251-33021 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63625 | Right sliding sunroof guide block | 63625-33020 · 63625-33030 |
| 63626 | Left sliding sunroof guide block | 63626-33020 · 63626-33030 |
| 64101 | Upper back panel sub-assembly | 64101-33140 |
| 64165B | No. 1 upper back panel hole cover | 64165-33040 · 64165-33050 · 64165-33051 |
| 64811 | back window glass | 64811-33370 · 64811-33380 · 64811-AA071 · 64811-AA080 · 64811-AA081 · 64811-AA090 · 64811-AA091 |
