Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

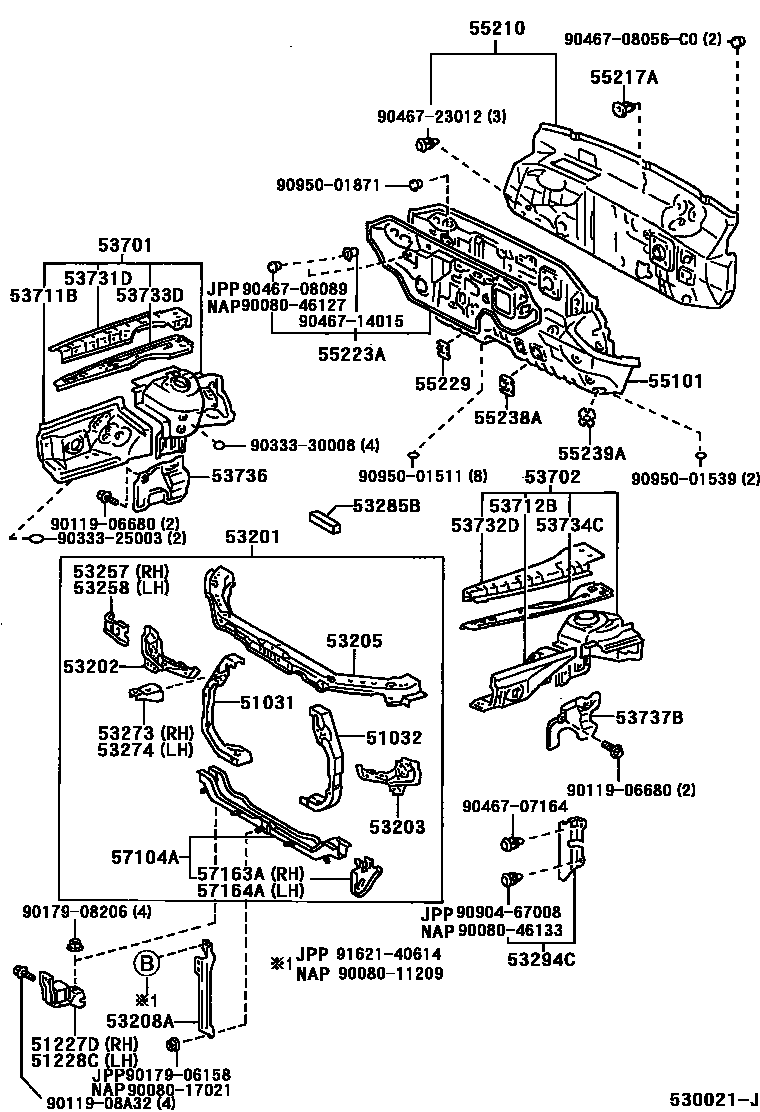

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51031 | Front cross member right corner plate sub-assembly | 51031-33030 |
| 51032 | Front cross member left side corner plate sub-assembly | 51032-33030 |
| 51227D | Right front suspension cross member shock absorber counterweight | 51227-33020 |
| 51228C | front suspension cross member plate | 51228-33010 |
| 53201 | Radiator bracket sub-assembly | 53201-33040 · 53201-33041 · 53201-33042 · 53201-33110 |
| 53202 | Radiator right side bracket sub-assembly | 53211-33030 · 53211-33050 |
| 53203 | Radiator left bracket sub-assembly | 53203-33050 · 53203-33051 · 53203-33070 |
| 53205 | Radiator upper bracket sub-assembly | 53205-33040 · 53205-33041 · 53205-33090 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-33020 · 53215-33020 |
| 53257 | Mounting bracket on the right side of the front end plate | 53257-33020 |
| 53258 | Front panel left mounting bracket | 53257-33020 |
| 53273 | Front bumper arm right mounting bracket | 53273-33030 |
| 53274 | Front bumper arm left mounting bracket | 53273-33030 |
| 53285B | Radiator side 1 air seal | 53285-33040 |
| 53294C | Radiator left baffle | 53294-33020 · 53294-33021 |
| 53701 | Right front fender fender sub-assembly | 53701-33070 · 53701-33071 · 53701-33072 · 53701-33073 · 53701-33074 |
| 53702 | Left front fender fender sub-assembly | 53702-33050 · 53702-33051 · 53702-33052 |
| 53711B | Right front fender front fender | 53711-33040 · 53711-33041 · 53711-33042 |
| 53712B | Left front fender front fender | 53712-33020 |
| 53731D | Right front fender to cowl side upper beam | 53731-33011 · 53731-33040 |
| 53732D | Left front fender to cowl side upper beam | 53732-33011 · 53732-33030 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33900 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33900 |
| 53736 | Right front fender fender seal | 53736-33020 |
| 53737B | Left front fender fender seal | 53737-33010 |
| 55101 | Front apron sub-assembly | 55101-33170 · 55101-33240 |
| 55210 | Front wall insulation pad assembly | 55210-33070 |
| 55217A | Front apron muffler fixings | 55217-32010 |
| 55223A | Front wall outer heat insulation pad | 55223-33070 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-33010 |
| 55238A | Front wall heat shield No. 2 | 55238-33010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33010 |
| 57104A | Front cross member sub-assembly | 57104-33020 |
| 57163A | No. 1 front cross member right reinforcement | 57163-33020 |
| 57164A | No. 1 front cross member left reinforcement | 57164-33020 |
