Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707

Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.

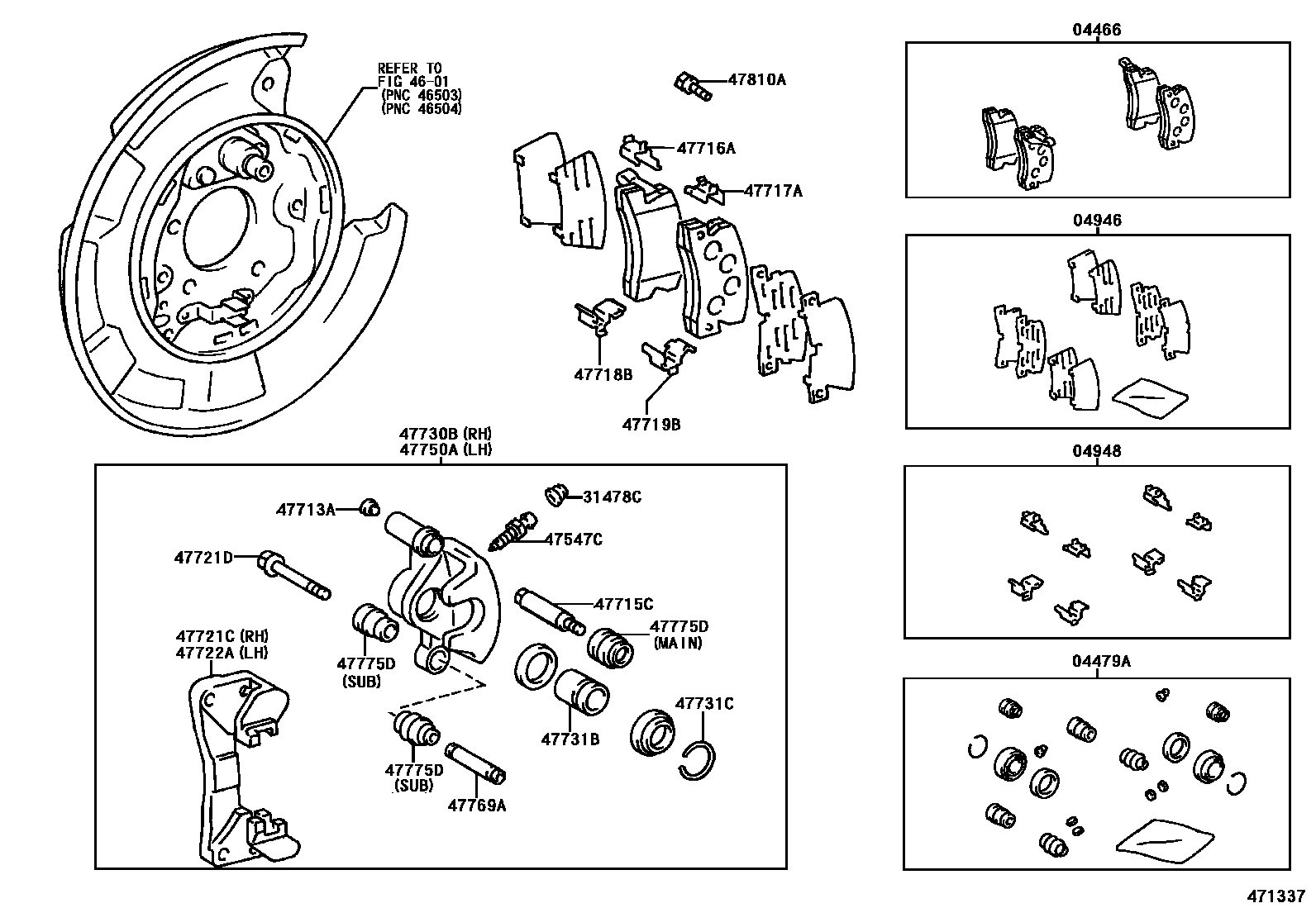

Toyota CAMRY 后盘式制动器卡钳和防尘罩 EPC diagram — 471337
后盘式制动器卡钳和防尘罩 — 471337 (199608 – 199908)

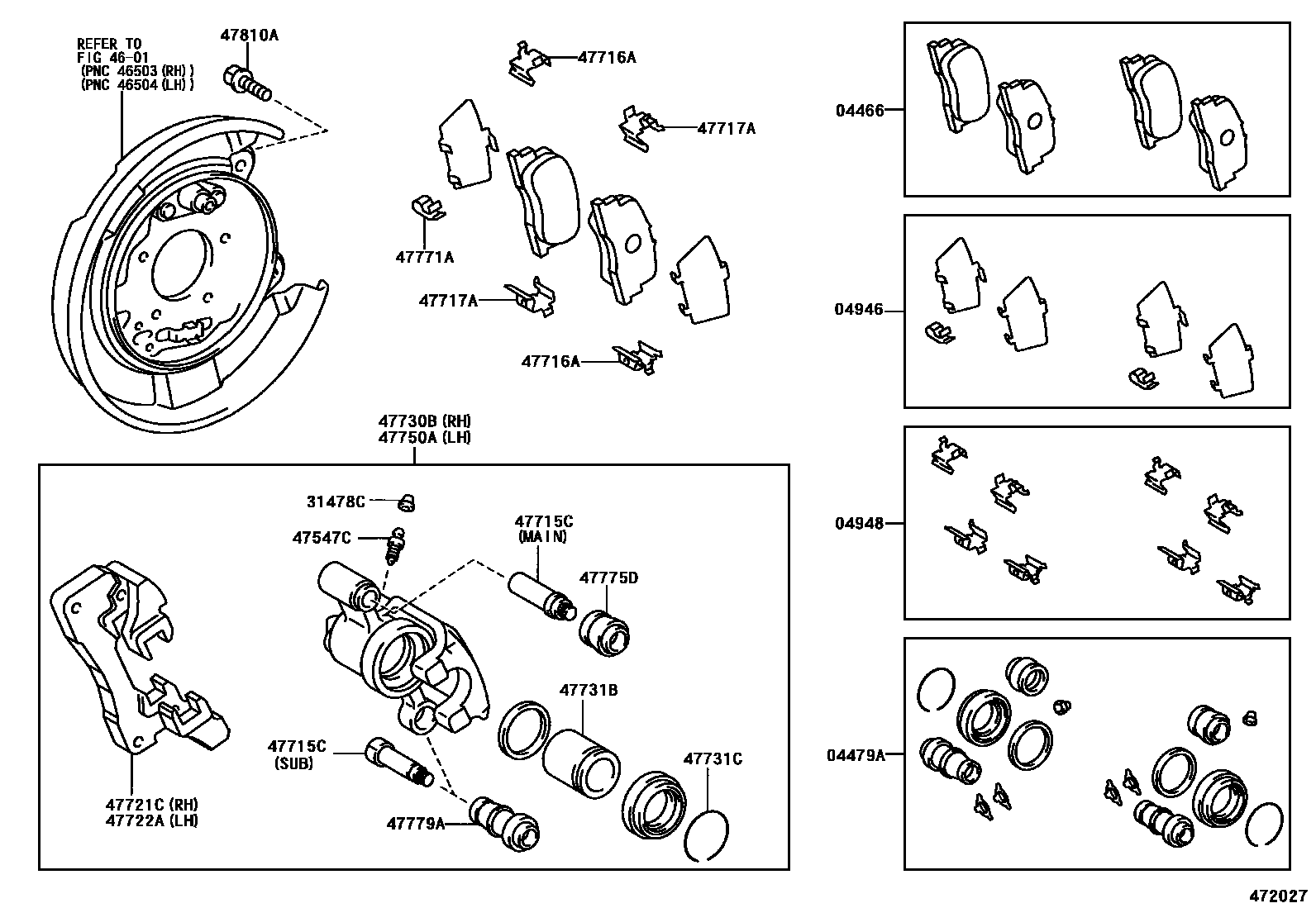

Toyota CAMRY 后盘式制动器卡钳和防尘罩 EPC diagram — 472027
后盘式制动器卡钳和防尘罩 — 472027 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
04466Rear disc brake pad assembly04466-32030 · 04466-33040
04479ARear disc brake cylinder assembly04479-33040 · 04479-33041 · 04479-33110
04946Silencer spacer assembly (for rear disc brake)04946-32080 · 04946-33010
04948Rear disc brake mounting assembly04948-32040 · 04948-33010
31478CBleed plug cap (for rear disc brake)31478-30010
47547CBleed plug (for rear disc brake)47547-20010
47713ABore plug (for rear disc brake cylinder)90950-01538
47715CBrake cylinder slide pin (for rear disc brake)47715-32020 · 47715-32030 · 47715-33020
47716APad support plate No. 1 (for rear disc brake)47716-32060 · 47716-33070
47717APad support plate No. 2 (for rear disc brake)47717-32060 · 47717-33050
47718BNo. 3 pad support plate (for rear disc brake)47718-33010
47719BNo. 4 pad support plate (for rear disc brake)47719-33010
47721CRight rear disc brake cylinder retainer47721-33070 · 47721-33110
47721DBolt (for rear disc brake cylinder retainer)90119-08A98
47722ALeft rear disc brake cylinder retainer47721-33070 · 47722-33110
47730BRight rear disc brake cylinder assembly47730-33100 · 47730-33160
47731Brear disc brake piston47731-20130 · 47731-33040
47731Cretaining ring (for rear disc brake piston)90522-43003
47750ALeft rear disc brake cylinder assembly47750-33100 · 47750-33160
47769ANo. 1 brake cylinder sliding sleeve (for rear disc brake)47769-32020
47771APad wear indicator disc (for rear disc brakes)47771-32030
47775DBushing boot (for rear disc brake)47775-16020 · 47775-32020 · 47775-32050
47779ANo. 2 brake cylinder sliding sleeve (for rear disc brake)47779-32030
47810AHexagonal bolt (for rear brake caliper)90119-10379
