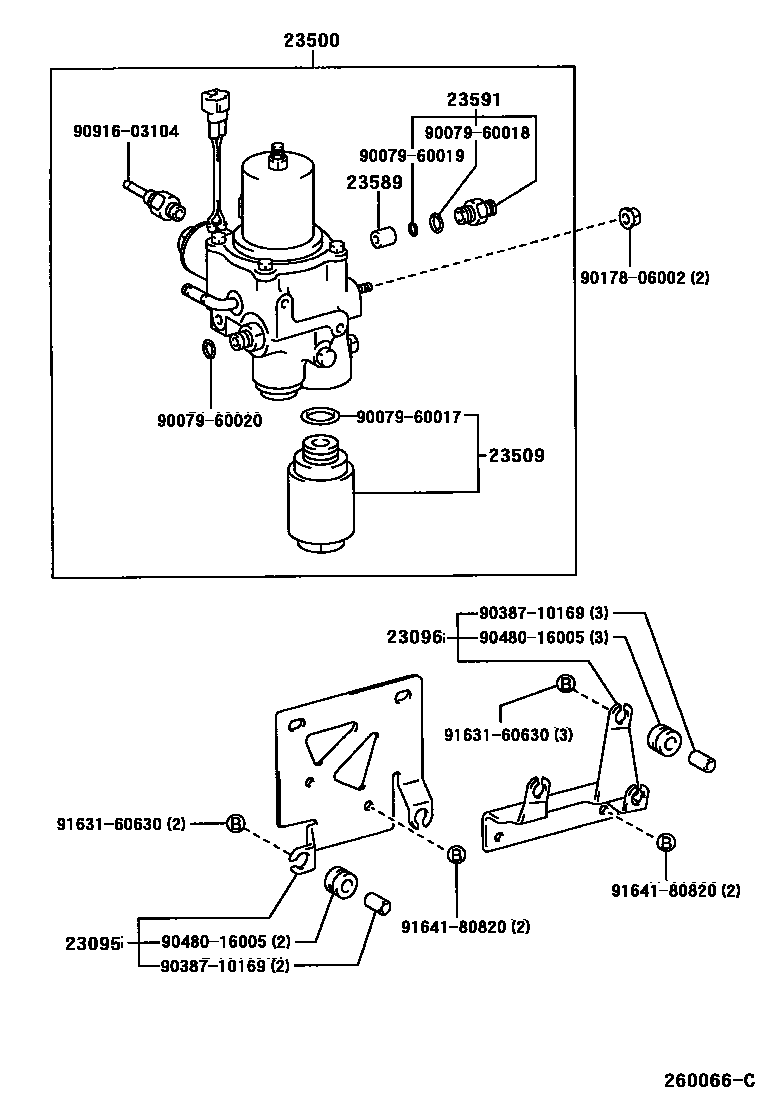

Toyota CAMRY LPG或CNG调节器 — Figure 2603
Toyota CAMRY EPC diagram 2603, LPG或CNG调节器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23095 | No. 1 regulator bracket sub-assembly | 23095-74010 |
| 23096 | No. 2 regulator bracket sub-assembly | 23096-74010 |
| 23500 | LPG (CNG) regulator assembly | 23500-74020 |
| 23509 | CNG regulator chamber sub-assembly | 23509-74021 |
| 23589 | LPG regulator filter | 23589-74020 |
| 23591 | No. 1 fuel hose connector | 23591-74020 |
