Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 7 images and 29 PNC and OE references.

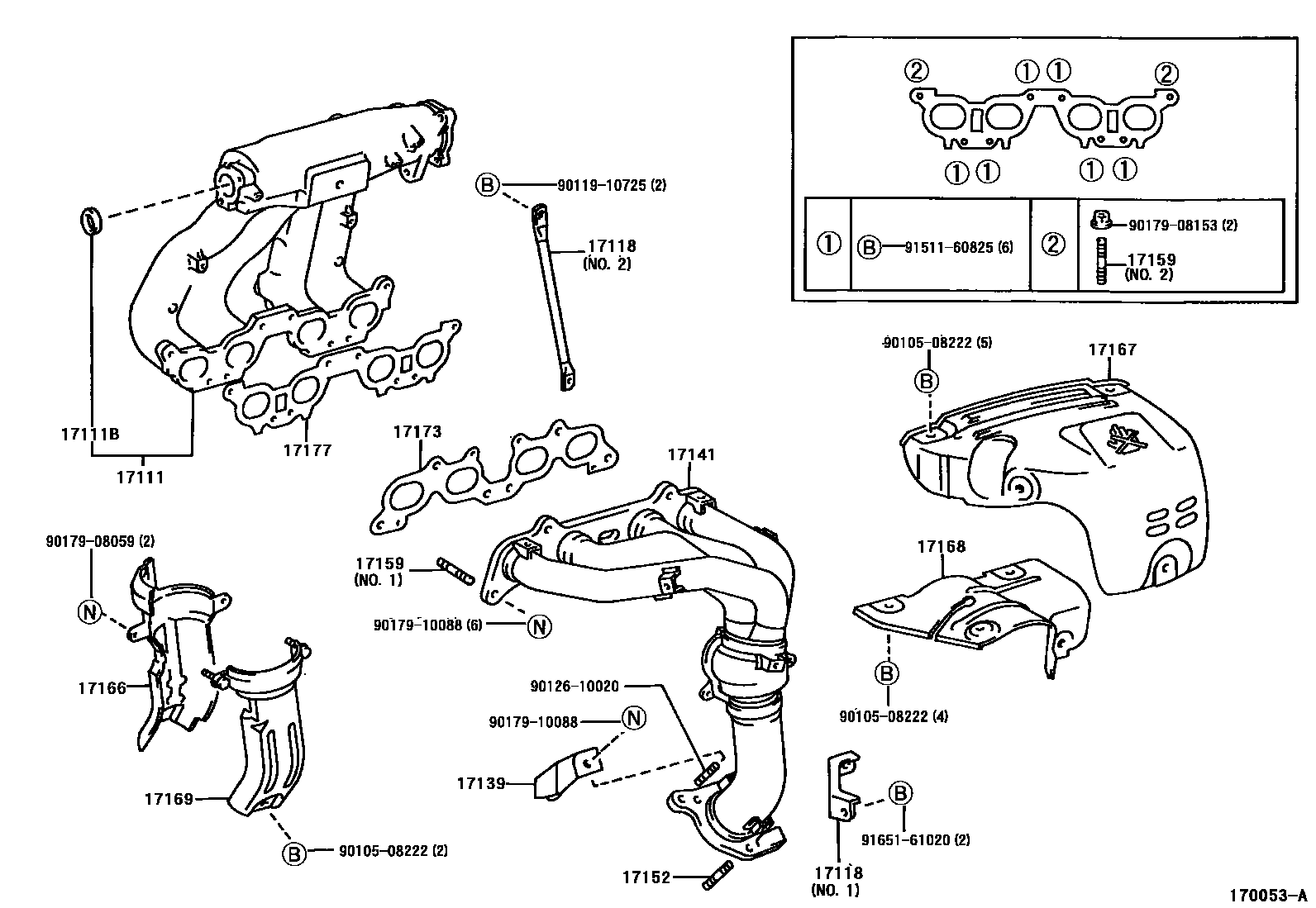

Toyota CAMRY Manifold EPC diagram — 170053A — Manifold — 170053A (199608 – 200008)

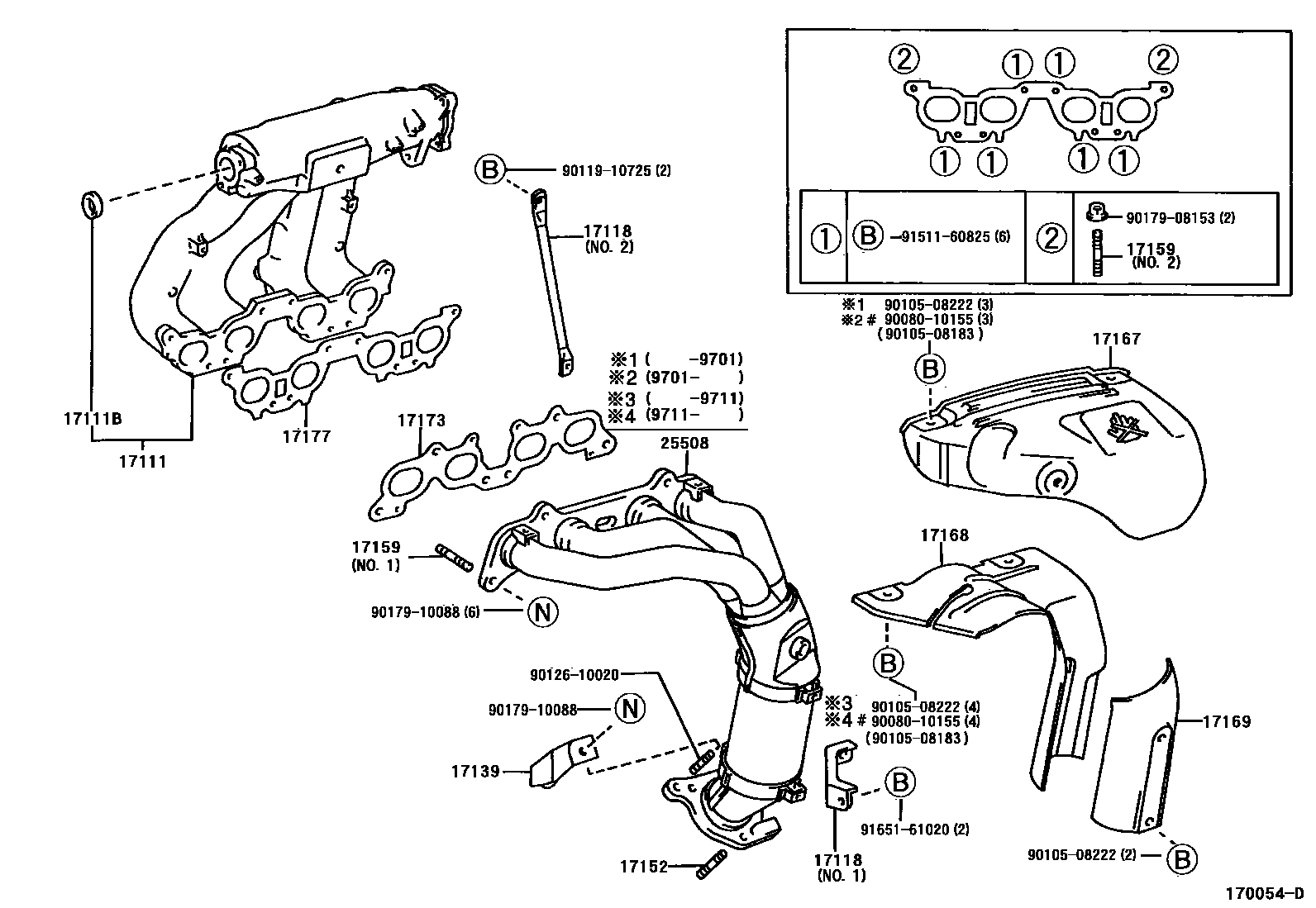

Toyota CAMRY Manifold EPC diagram — 170054D — Manifold — 170054D (199608 – 200008)

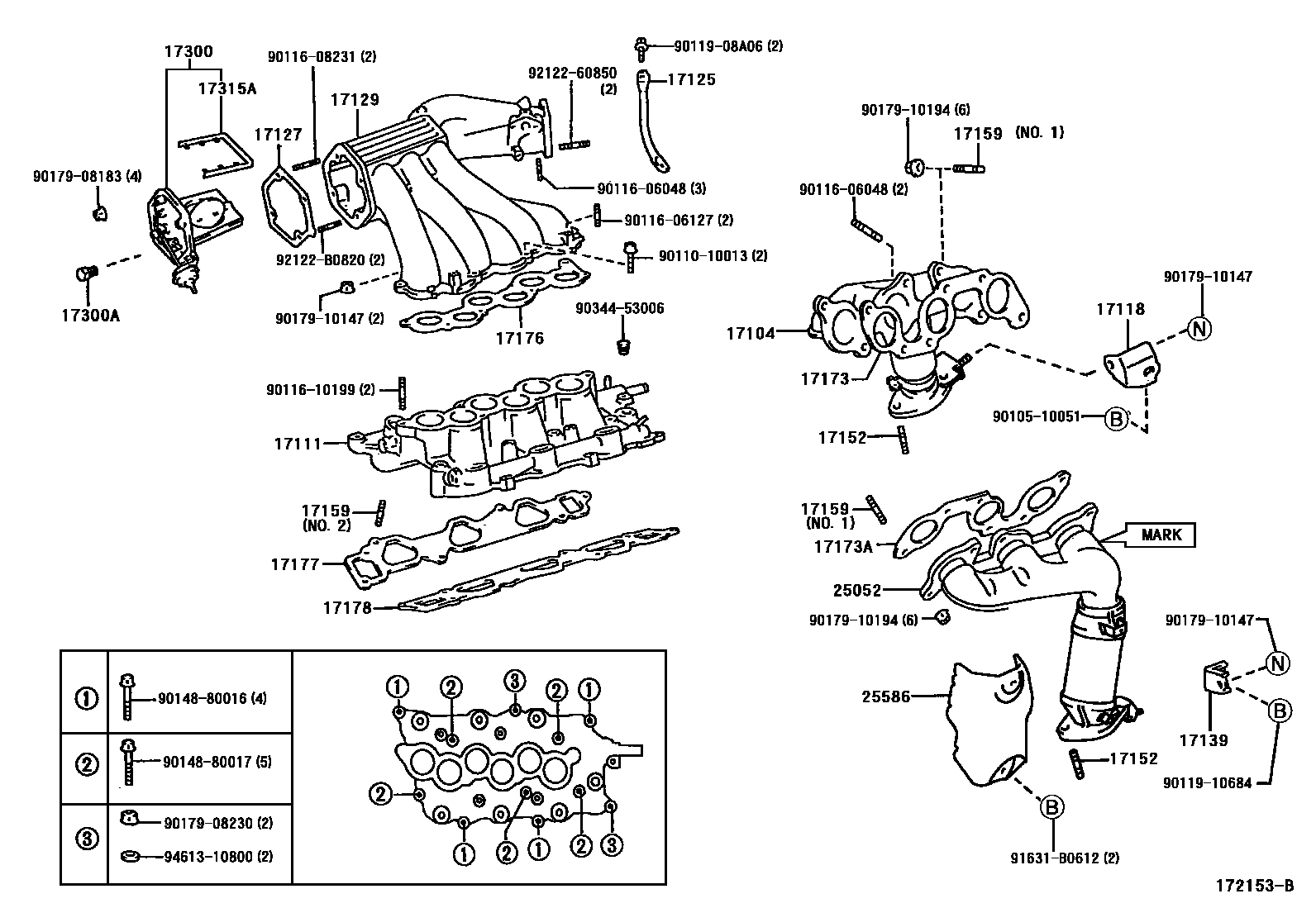

Toyota CAMRY Manifold EPC diagram — 172153B — Manifold — 172153B (199708 – 200008)

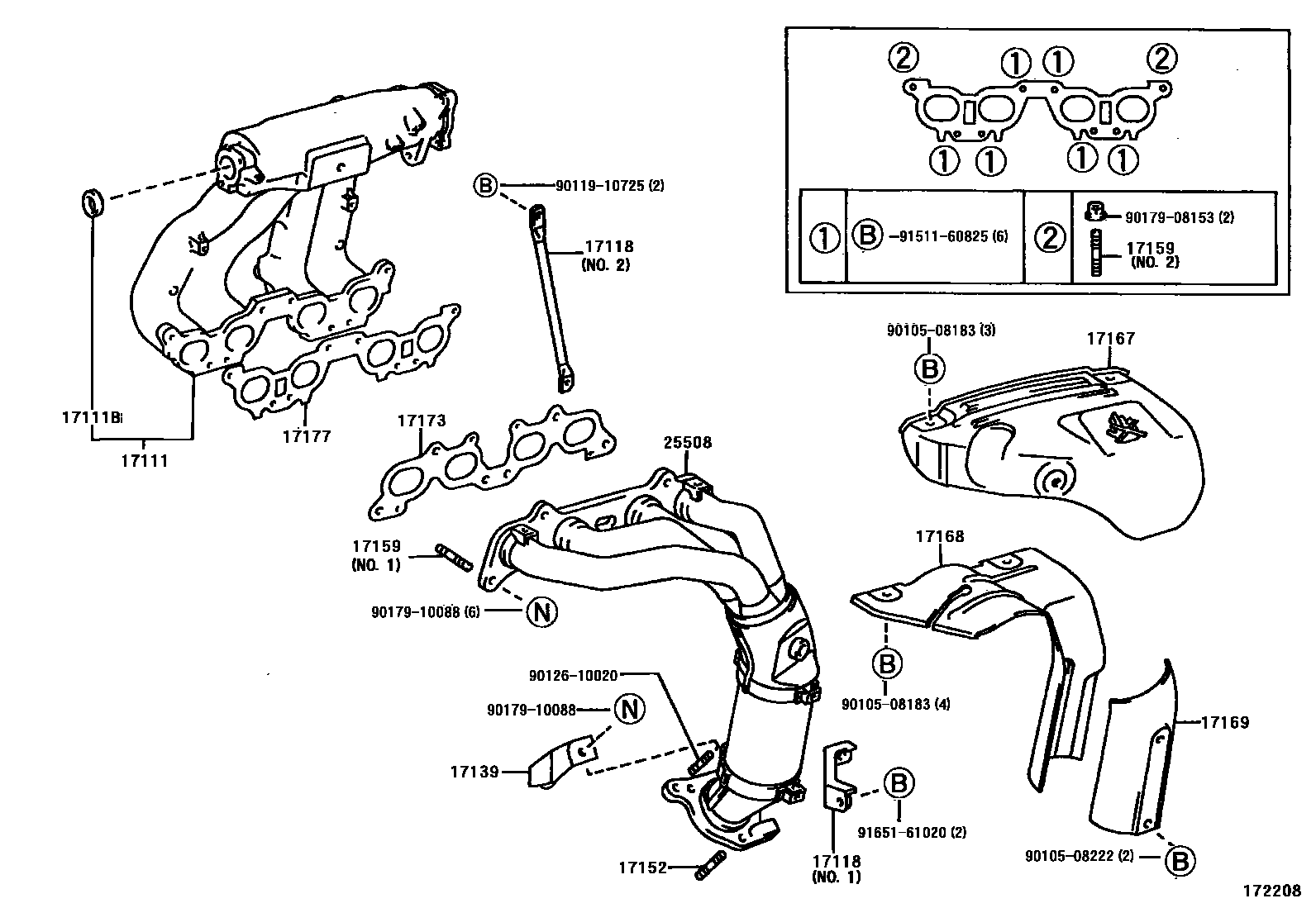

Toyota CAMRY Manifold EPC diagram — 172208 — Manifold — 172208 (199908 – 999999)

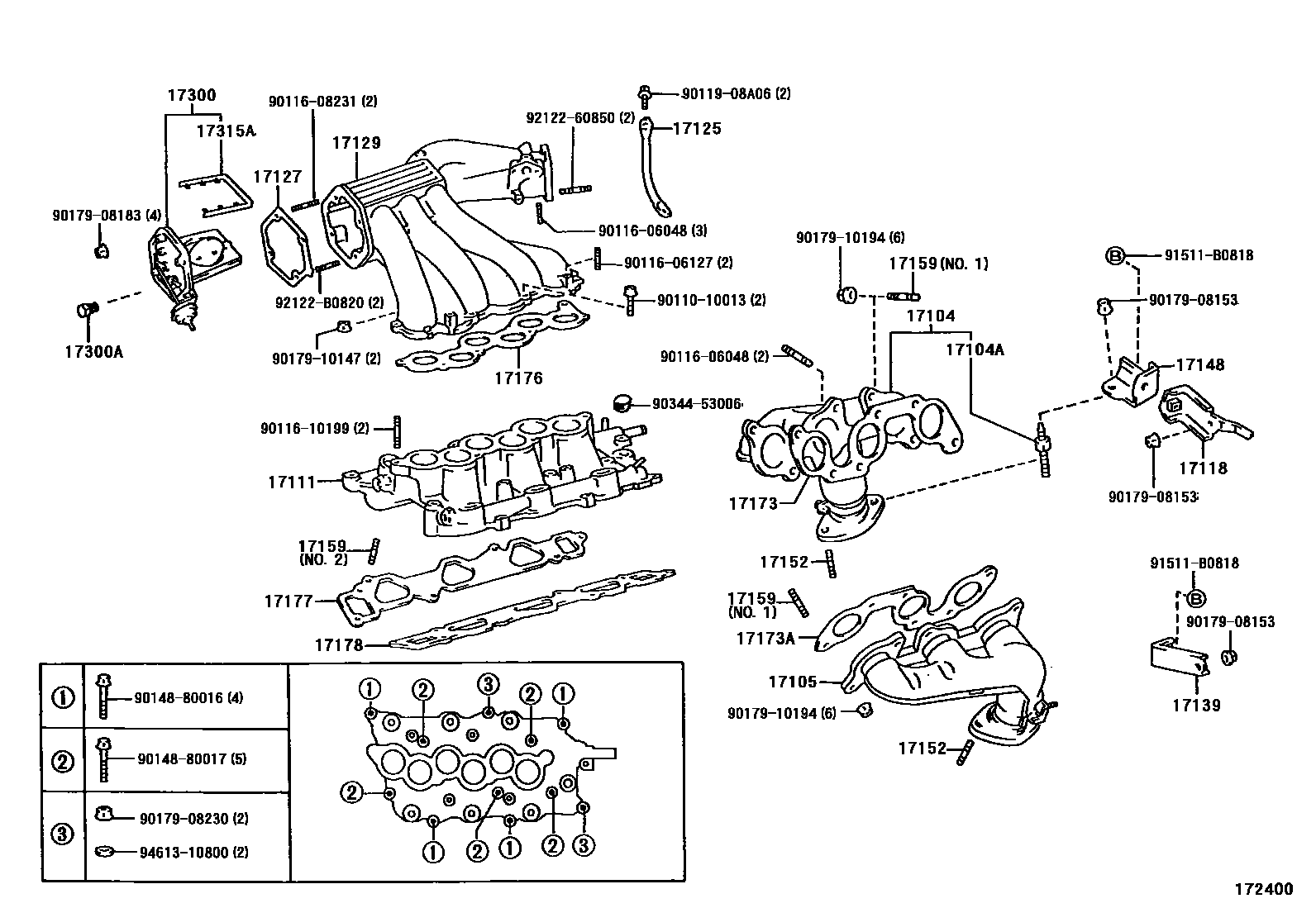

Toyota CAMRY Manifold EPC diagram — 172400 — Manifold — 172400 (199608 – 200008)

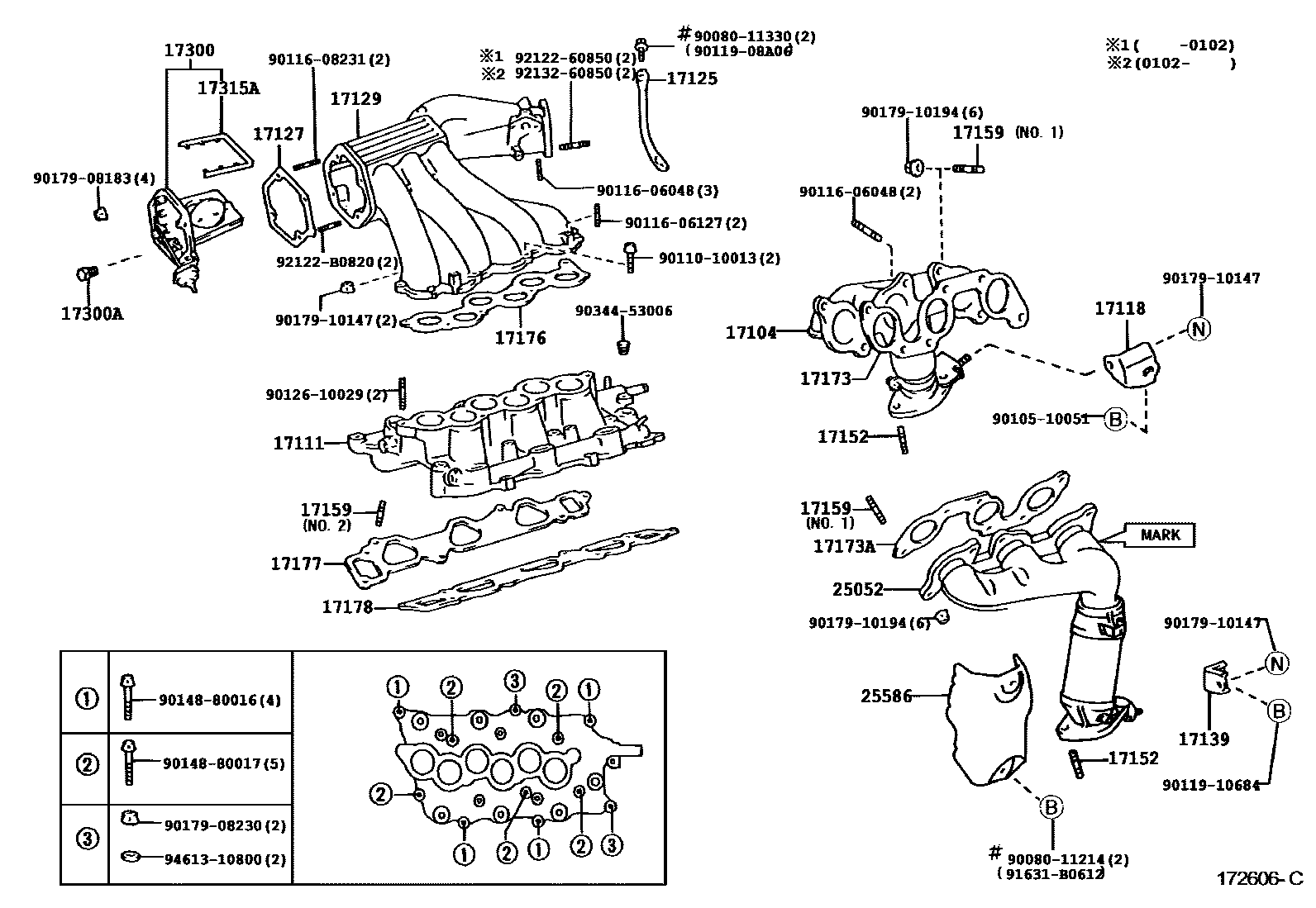

Toyota CAMRY Manifold EPC diagram — 172606C — Manifold — 172606C (200008 – 999999)

Toyota CAMRY Manifold EPC diagram — 172607 — Manifold — 172607 (200008 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17104	Right exhaust manifold sub-assembly	17104-20010 · 17140-20010
17104A	Bolts (for head tube and stays)	90109-08239
17105	Left exhaust manifold sub-assembly	17150-20010
17111	Intake Manifold	17101-0A010 · 17101-20010 · 17101-74310 · 17101-74311
17111B	No. 2 screw plug	96411-44000
17118	Manifold stays	17118-20010 · 17118-20020 · 17118-74370 · 17118-74390
17125	No. 1 pressure tank stay	17125-0A010 · 17125-20010
17127	Pressure tank cover gasket	17127-0A010 · 17127-62030
17129	Intake pressure tank	17109-0A010 · 17109-0A050 · 17109-20040 · 17109-20090
17139	No. 2 manifold stay	17139-20010 · 17139-20020 · 17139-74190
17141	exhaust manifold	17141-74200
17148	Exhaust manifold plate (for EGR intake)	17148-20010
17152	Studs (for manifold to exhaust)	90116-10058 · 90116-10149
17159	Studs (for manifold to cylinder head)	90116-10063 · 90116-10169 · 90126-08013 · 92122-60822
17166	Exhaust manifold No. 4 heat shield	17166-74020
17167	Exhaust manifold No. 1 heat shield	17167-74230 · 17167-74231 · 17167-74240
17168	Exhaust manifold No.2 insulation pad	17168-74130 · 17168-74131 · 17168-74140
17169	Exhaust manifold No. 3 heat shield	17169-74030 · 17169-74040
17173	Gasket (exhaust manifold to cylinder head)	17173-20010 · 17173-74040
17173A	Left side gasket (exhaust manifold to cylinder head)	17173-20010
17176	Gasket (intake surge tank to intake manifold)	17176-62030
17177	No. 1 gasket (intake manifold to cylinder head)	17177-20010 · 17177-20020 · 17177-74070
17178	No. 2 gasket (intake manifold to cylinder head)	17178-20010 · 17178-20020
17300	Intake control valve assembly	17300-20020
17300A	Headed tapered thread plug (for air control valves)	90345-51006
17315A	Intake control valve gasket	17315-62020
25052	No. 2 exhaust manifold three-way catalytic converter sub-assembly	25052-20020 · 25052-20030 · 25052-20040 · 25052-20120 · 25052-20130
25508	Manifold three-way catalytic converter sub-assembly	25051-03010 · 25051-03020 · 25051-74090 · 25051-74100
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-20010
