Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

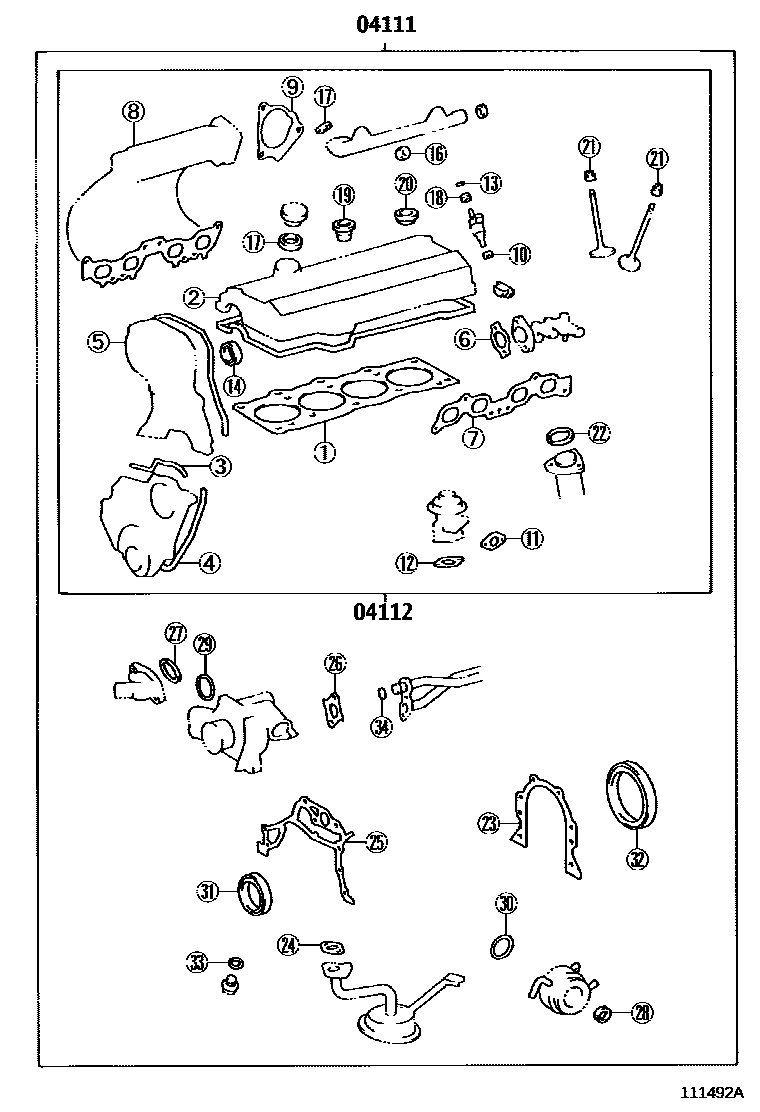

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 111492A
Engine Overhaul Gasket Kit — 111492A (199908 – 999999)

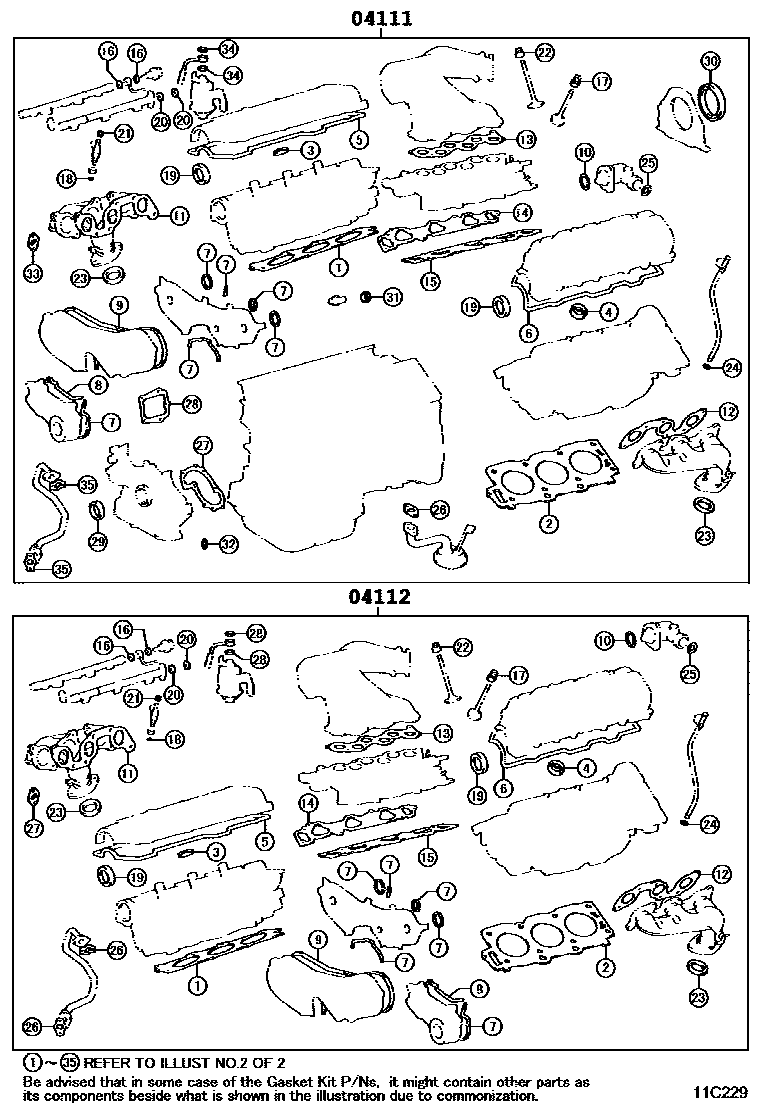

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C229
Engine Overhaul Gasket Kit — 11C229 (199608 – 199710)

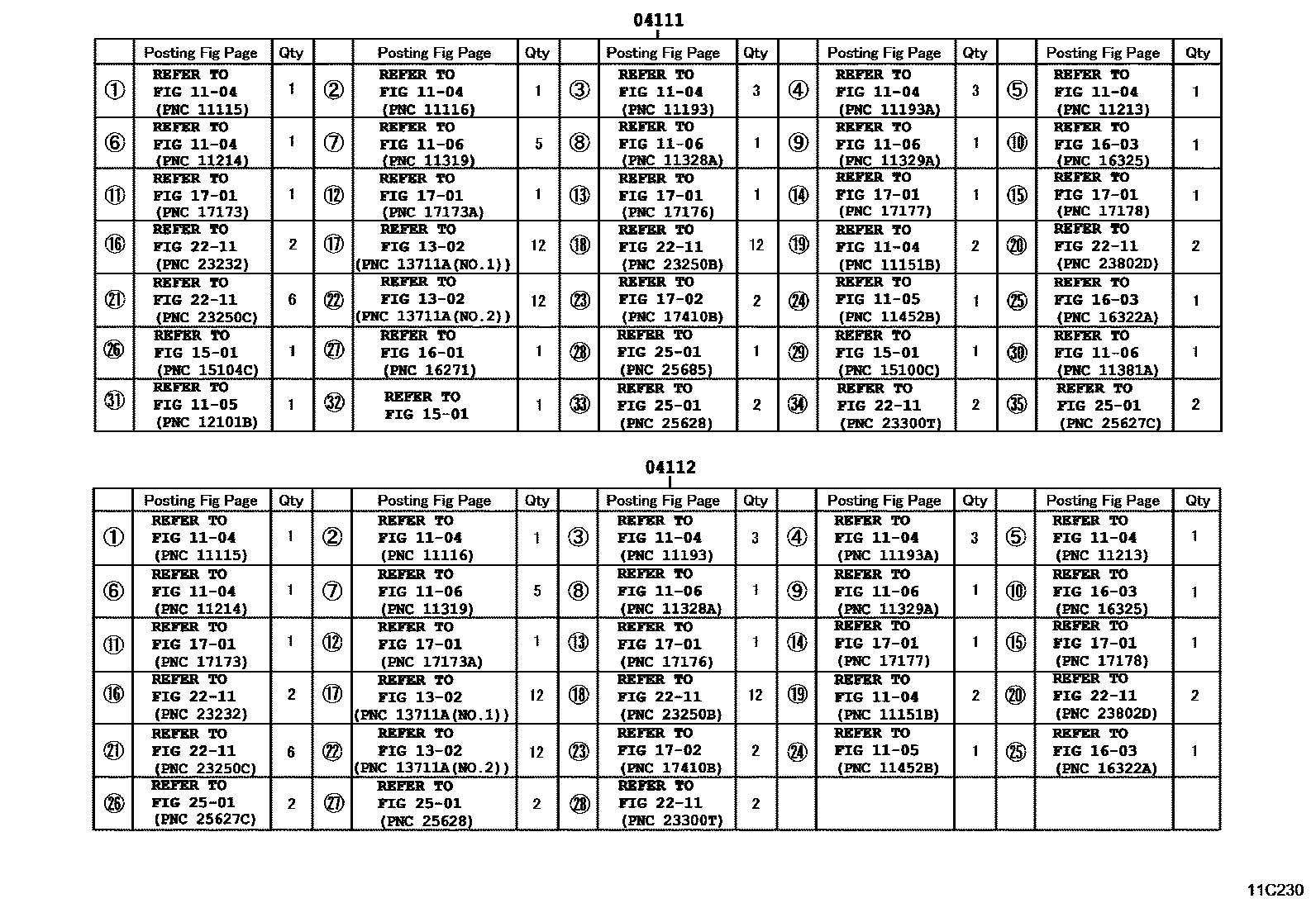

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C230
Engine Overhaul Gasket Kit — 11C230 (199608 – 199710)

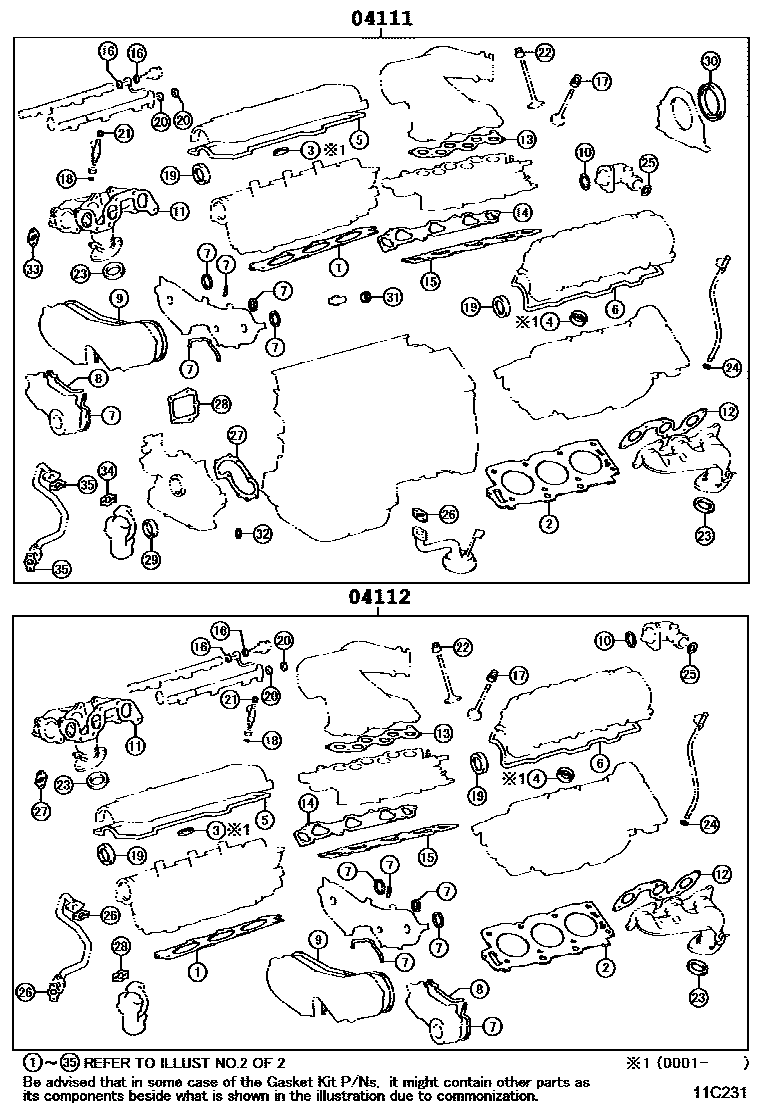

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C231
Engine Overhaul Gasket Kit — 11C231 (199710 – 999999)

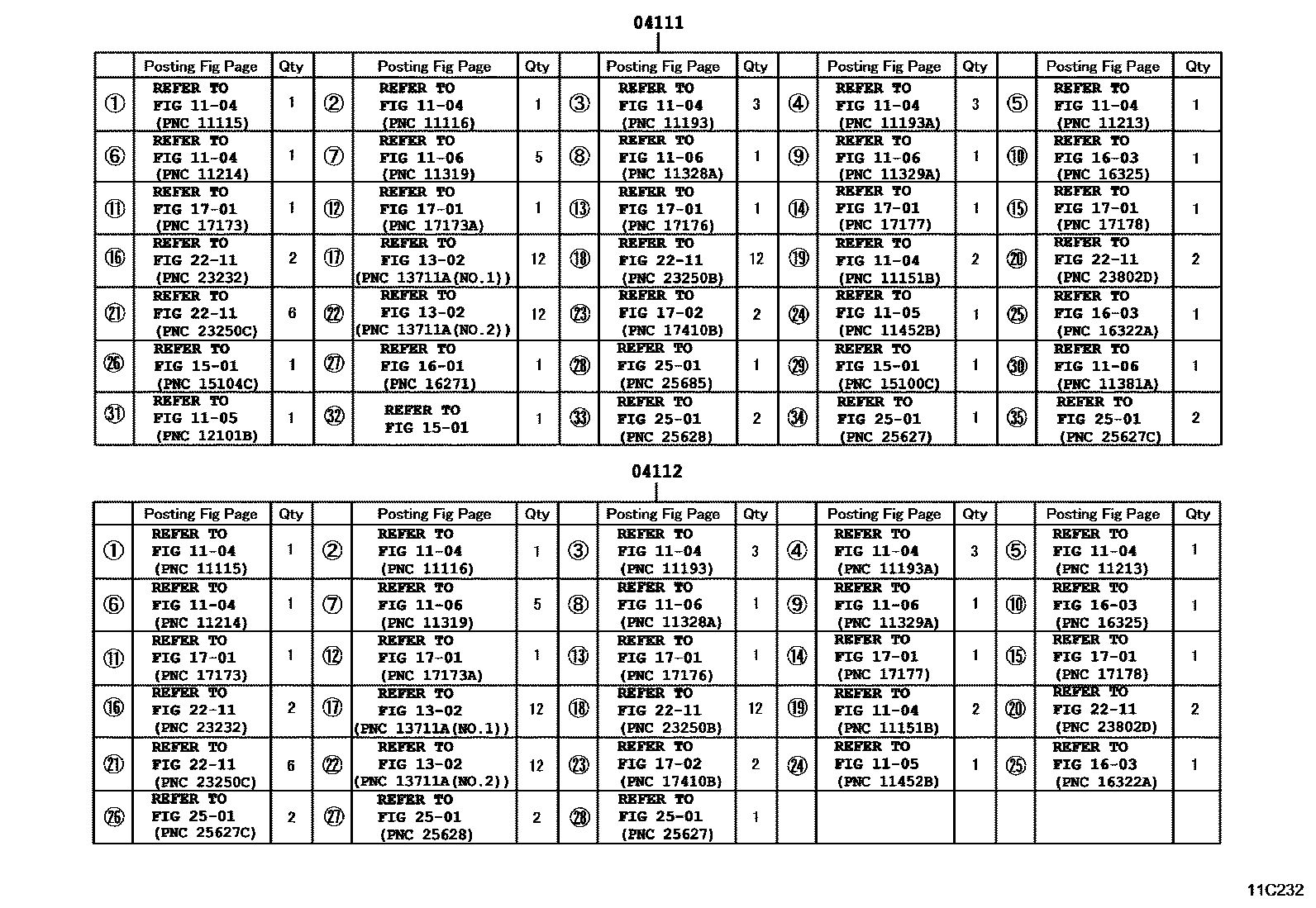

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C232
Engine Overhaul Gasket Kit — 11C232 (199710 – 999999)

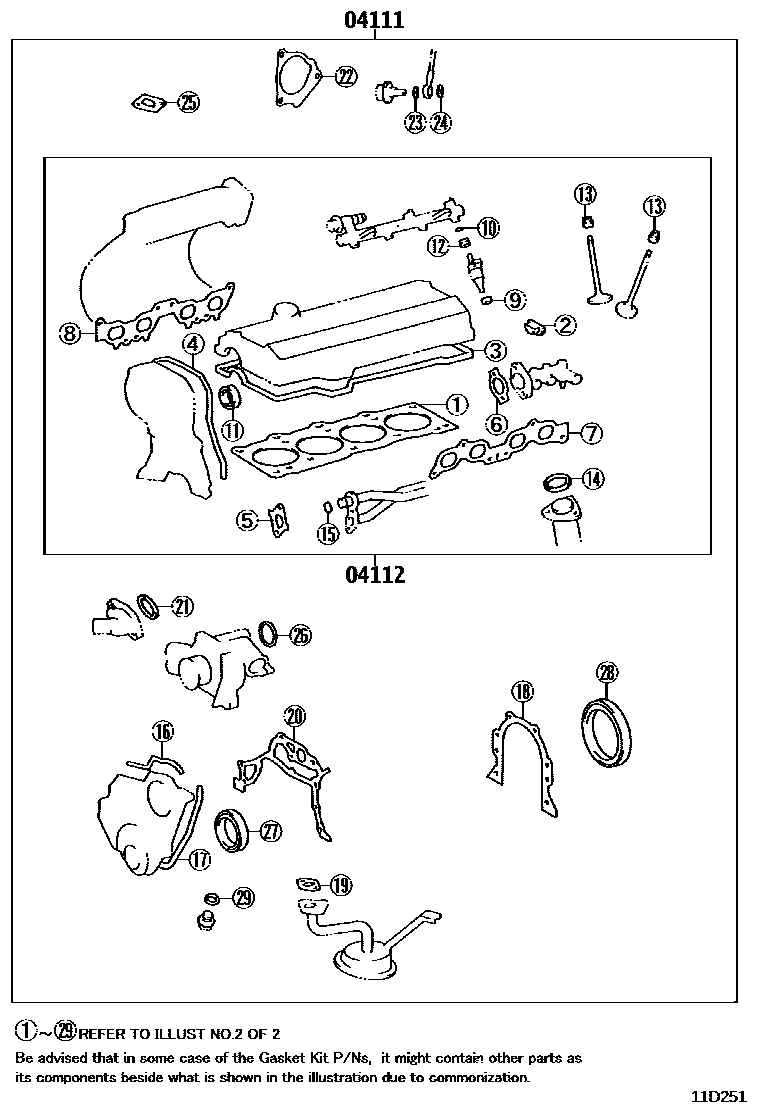

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D251
Engine Overhaul Gasket Kit — 11D251 (199608 – 999999)

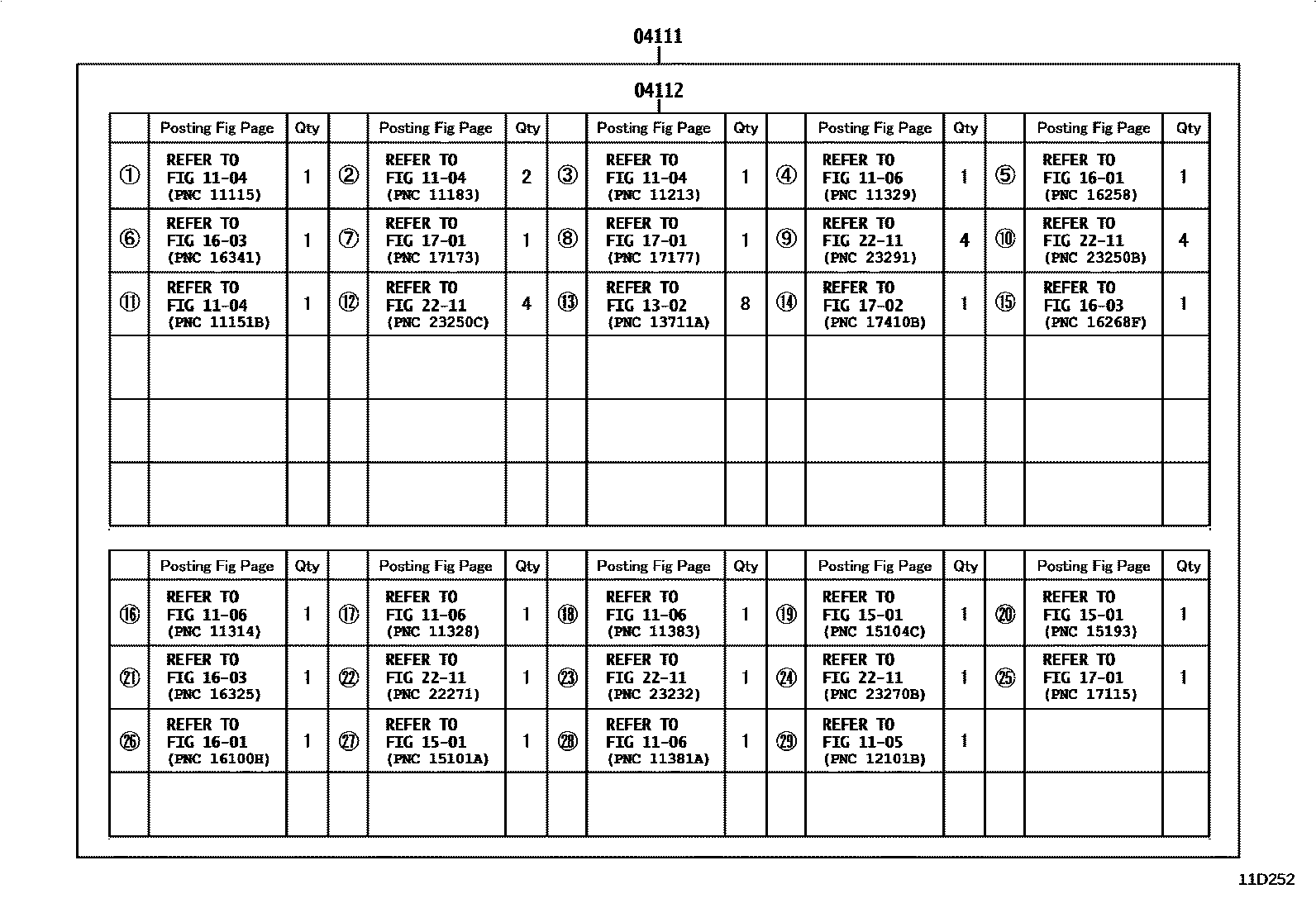

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D252
Engine Overhaul Gasket Kit — 11D252 (199608 – 999999)

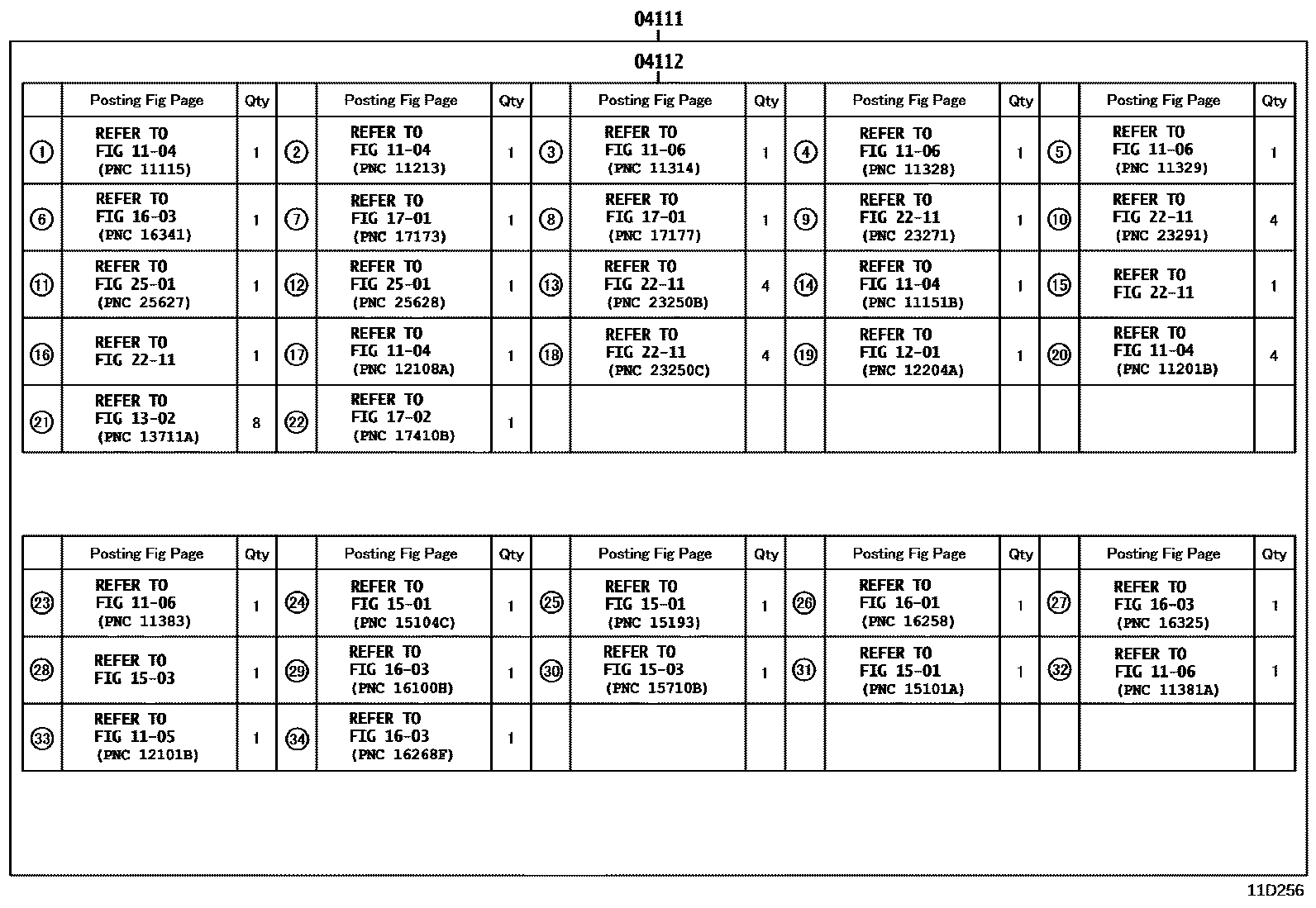

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D256
Engine Overhaul Gasket Kit — 11D256 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-20040 · 04111-20041 · 04111-20042 · 04111-74640 · 04111-74641 · 04111-74650 · 04111-74651 · 04111-74790
04112Engine valve grinding pad assembly04112-20030 · 04112-20031 · 04112-20032 · 04112-74580 · 04112-74581 · 04112-74600 · 04112-74790 · 04112-74800
