Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

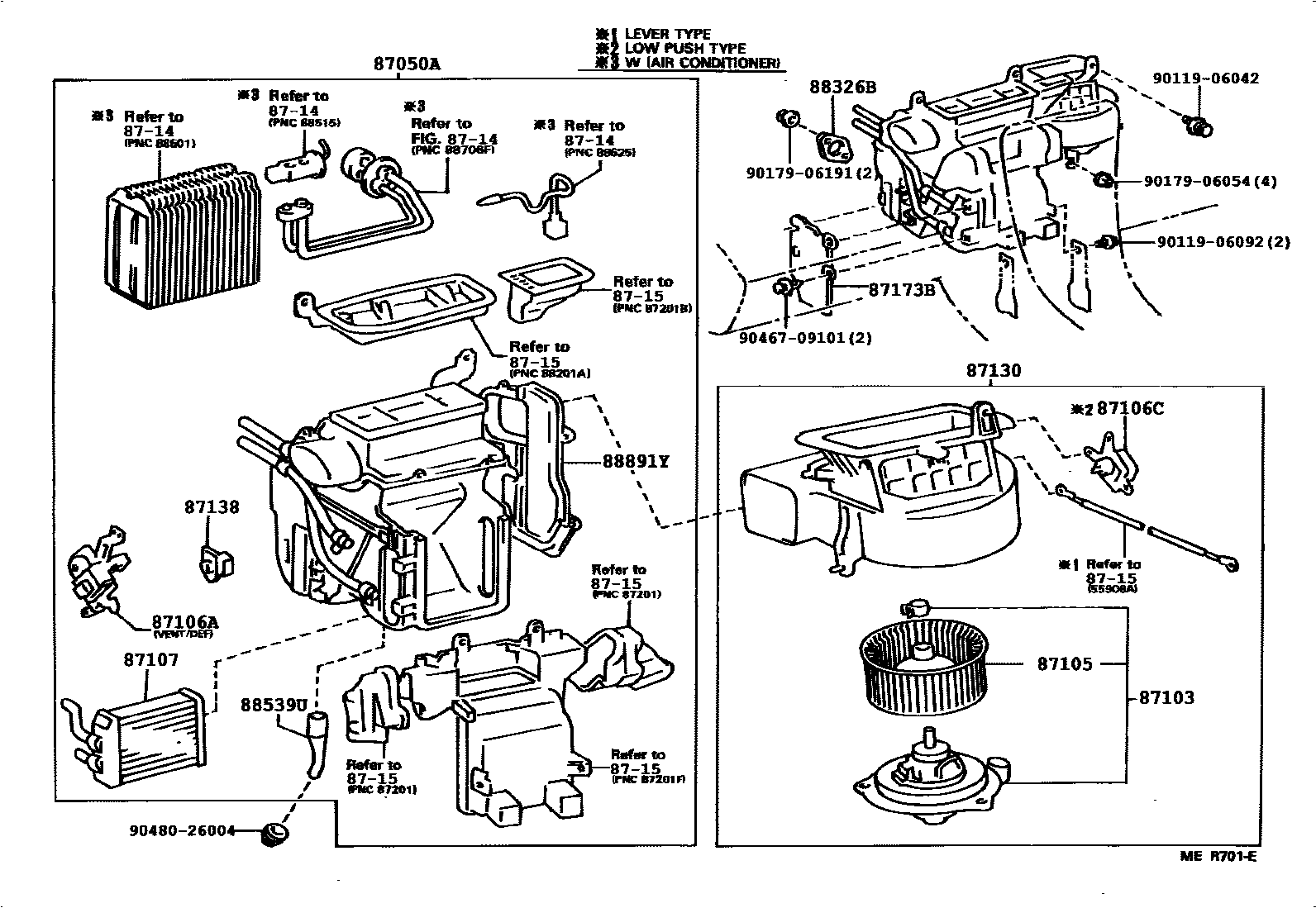

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050A | Air conditioning radiator assembly | 87050-06090 · 87050-06100 · 87050-06110 · 87050-33030 · 87050-33040 · 87050-33100 · 87050-33110 · 87050-33260 · 87050-33270 · 87050-33310 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-06010 · 87103-06011 · 87103-33020 · 87103-33021 |
| 87105 | Heater blower fan sub-assembly | 87105-06010 · 87105-33020 |
| 87106A | Damper servo mechanism sub-assembly | 87106-06010 · 87106-33030 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-06030 · 87106-33070 |
| 87107 | Heater radiator device sub-assembly | 87107-06010 · 87107-33020 |
| 87130 | Front heater blower assembly | 87130-06020 · 87130-06030 · 87130-33030 · 87130-33040 · 87130-33080 |
| 87138 | Heater Blower Resistor | 87138-06010 · 87138-06020 · 87138-33010 · 87138-33020 |
| 87173B | Heater protection device | 87173-33010 |
| 88326B | Cover plate | 88326-33010 · 88326-33020 |
| 88539U | Cooler drain hose | 88539-06010 · 88539-33010 |
| 88891Y | Cooler cover No. 1 | 88891-06010 · 88891-33020 · 88891-33021 · 88891-33030 |
