Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

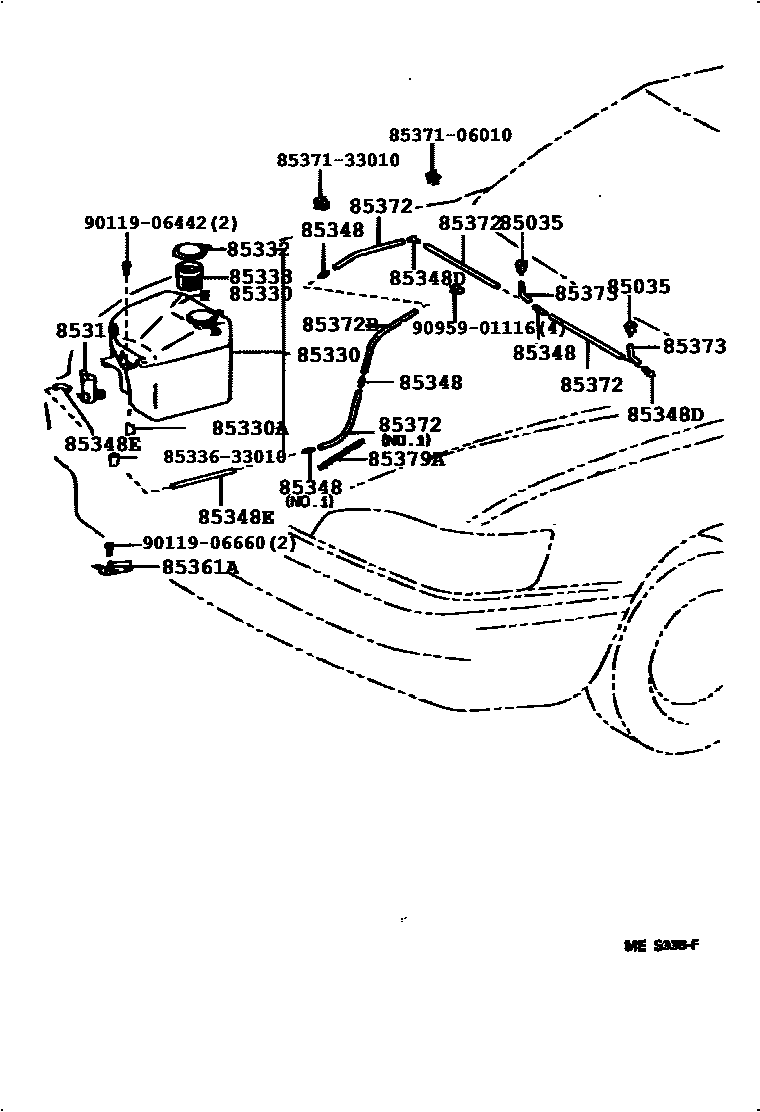

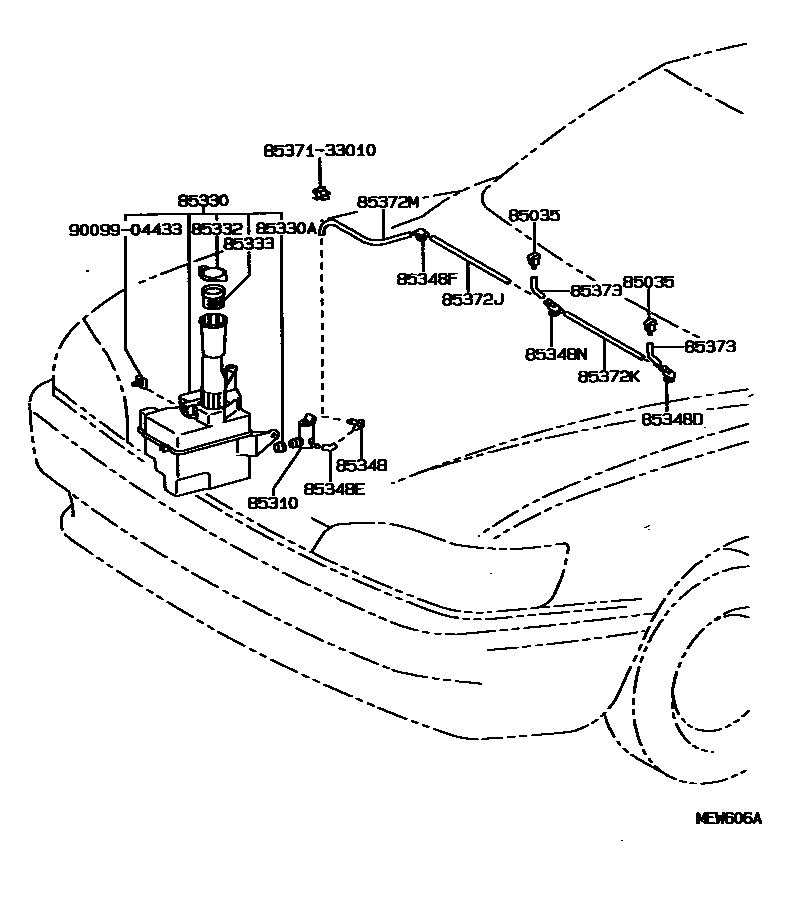

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85385-33020 |
| 85310 | Windshield washer motor and pump assembly | 85310-20190 · 85330-06030 |
| 85330 | Windshield washer fluid tank assembly | 85315-06030 · 85315-33070 · 85315-33120 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-06020 · 85316-22190 · 85316-33010 · 85316-33120 |
| 85333 | Windshield washer fluid tank filter | 85312-33010 · 85333-03010 · 85333-12470 |
| 85348 | Windshield washer hose connector No. 1 | 85334-22470 · 85334-22480 · 85355-20200 · 85378-33030 |
| 85348D | No. 1 windshield washer elbow joint | 85376-10250 · 85377-33030 |
| 85348E | No. 2 windshield washer elbow joint | 85317-20350 · 85355-16192 · 90099-33729 |
| 85348F | No. 3 windshield washer elbow joint | 85375-33070 |
| 85348N | No. 4 windshield washer hose connector | 85378-33030 |
| 85361A | Windshield washer bracket No. 1 | 85361-33010 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33075 · 90099-33080 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90099-33192 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90099-33080 |
| 85372K | No. 5 windshield washer hose (from connector to connector) | 90099-33080 |
| 85372M | No. 7 windshield washer hose (from connector to connector) | 90099-33889 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 |
| 85379A | Windshield washer hose spring | 85375-33030 · 85379-33030 |
