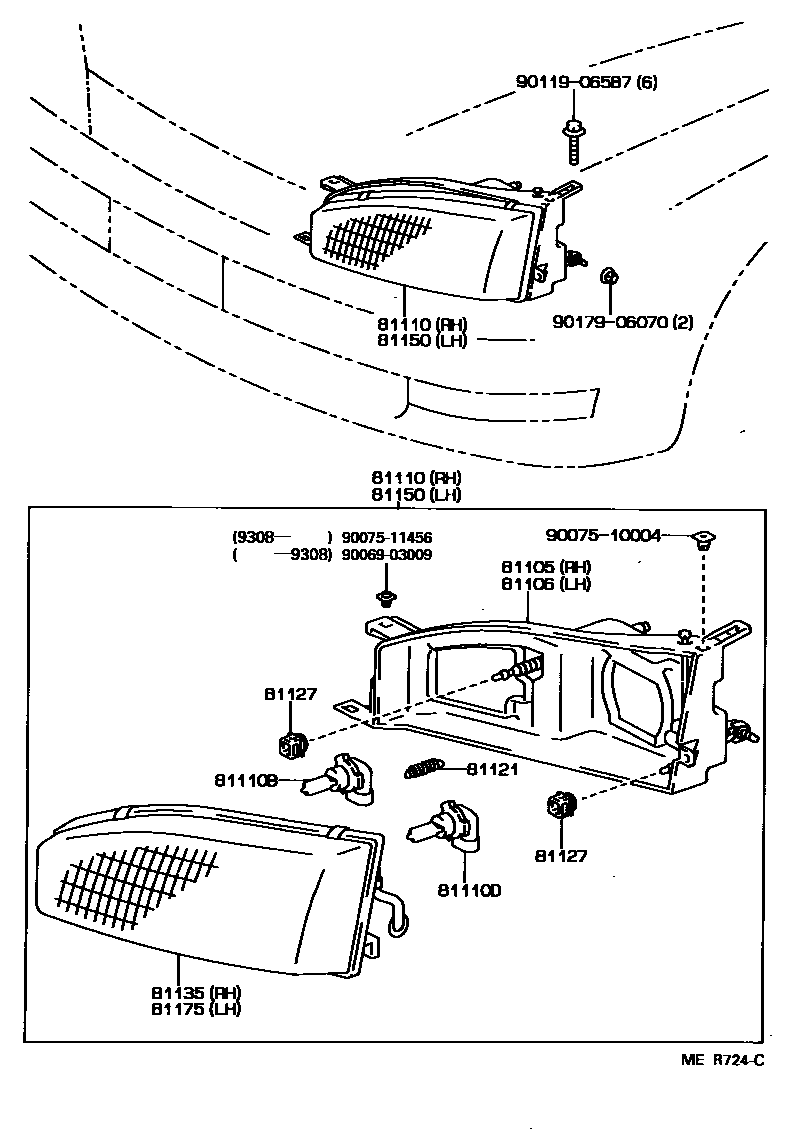

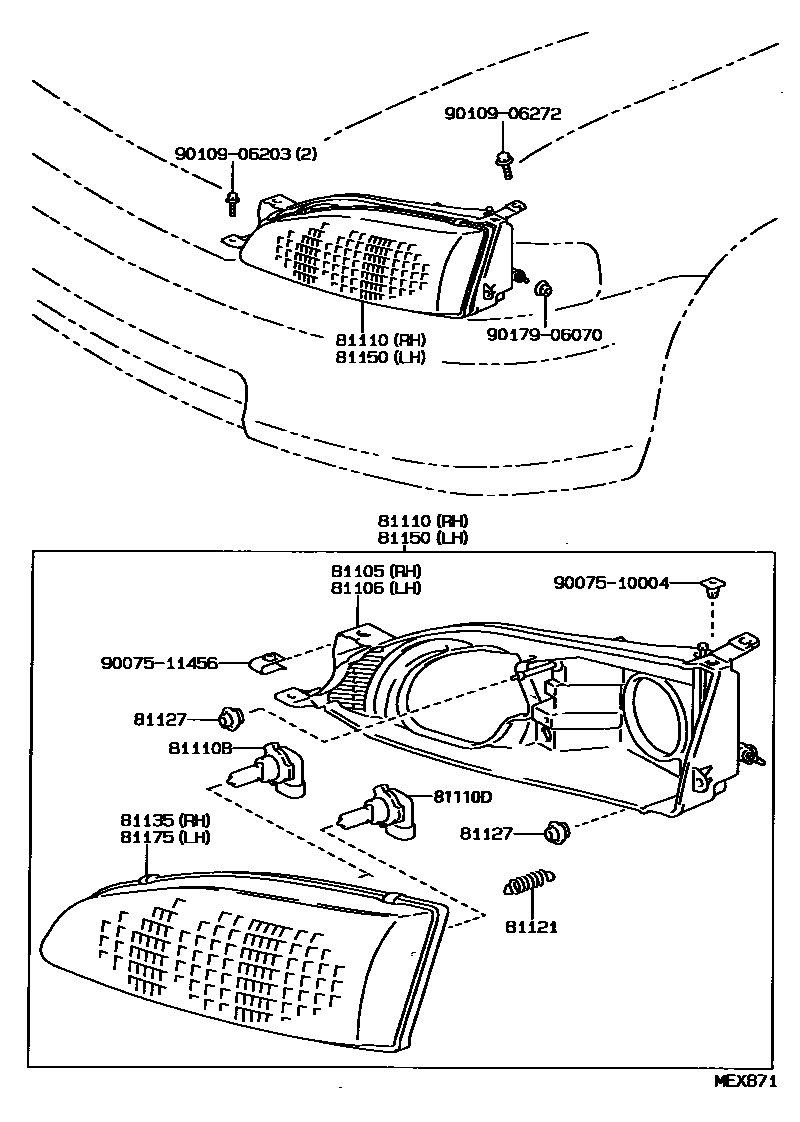

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-33010 · 81105-33162 |
| 81106 | Left headlight housing sub-assembly | 81106-33010 · 81106-33162 |
| 81110 | Right headlight assembly | 81110-33010 · 81110-33011 · 81110-33162 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90080-81040 · 90981-13047 |
| 81121 | headlight spring | 90075-25513 |
| 81127 | No. 1 headlight support | 81128-22630 |
| 81135 | Right headlight assembly | 81130-33010 · 81130-33162 |
| 81150 | Left headlight assembly | 81150-33010 · 81150-33011 · 81150-33162 |
| 81175 | Left headlight assembly | 81170-33010 · 81170-33162 |
