Toyota CAMRY 前门板和前门玻璃 — Figure 6701

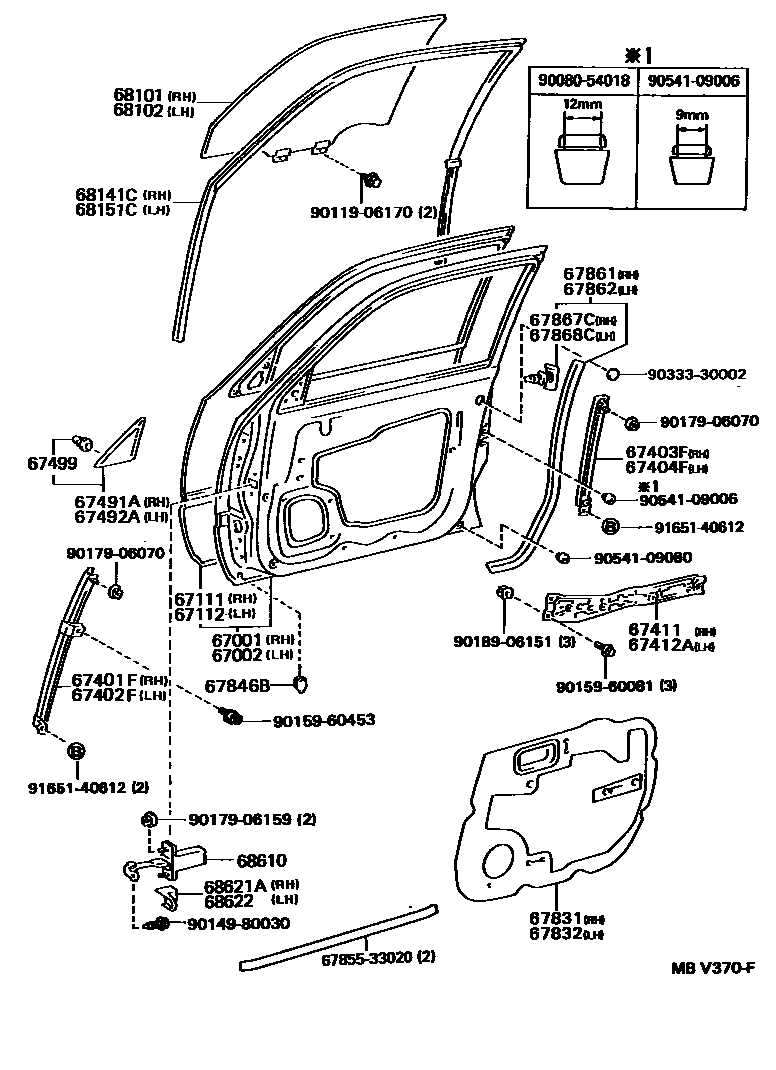

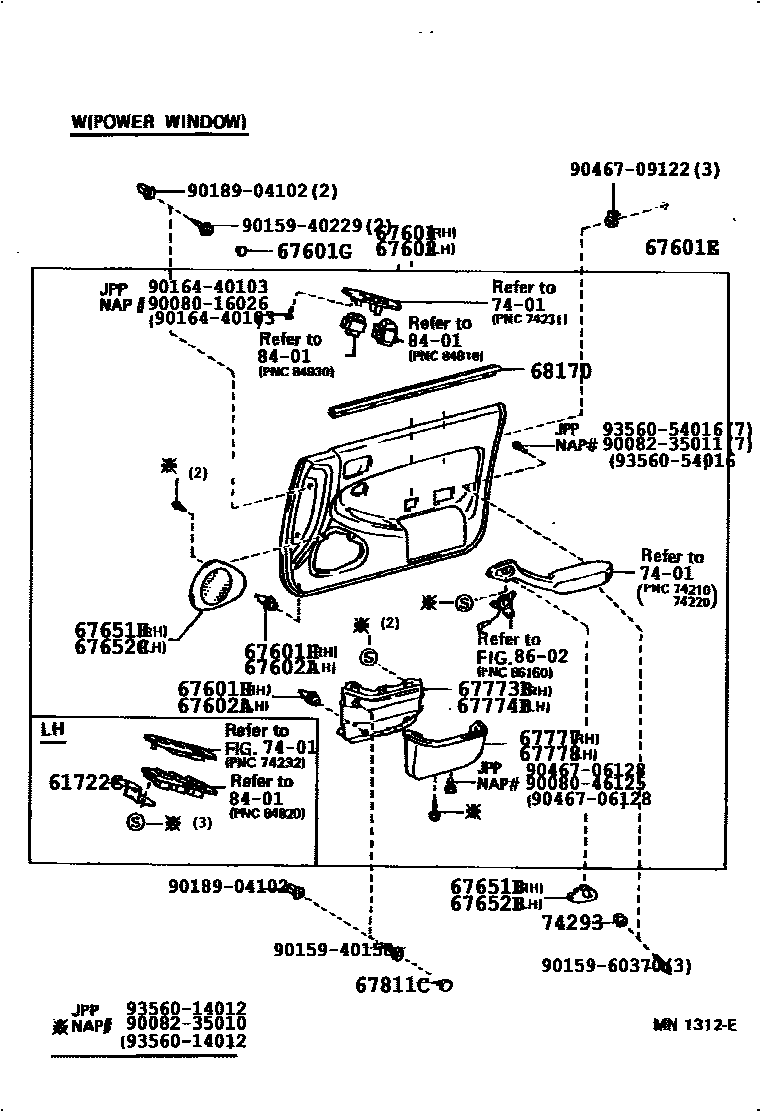

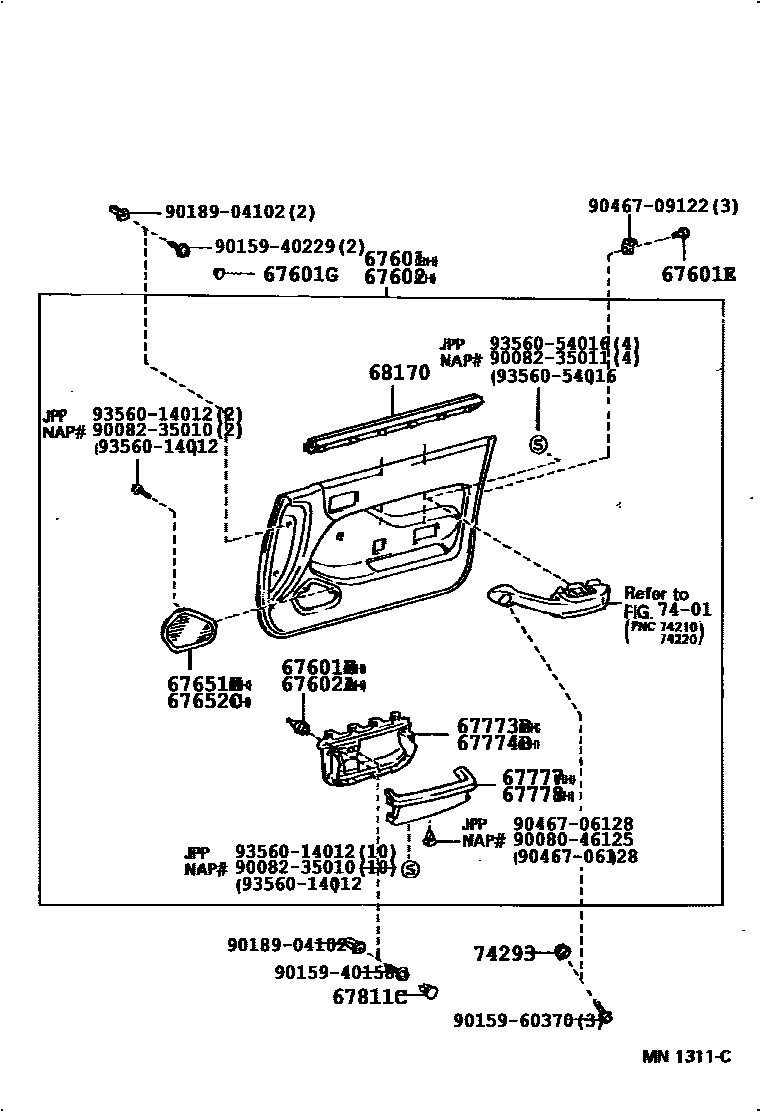

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61722C | switch board bracket | 61722-32010 |
| 67001 | Right front door panel sub-assembly | 67001-33011 · 67001-33031 · 67001-33032 |
| 67002 | Left front door panel sub-assembly | 67002-33011 · 67002-33031 · 67002-33032 |
| 67111 | Outer right front door panel | 67111-32090 · 67111-32091 |
| 67112 | Outer left front door panel | 67112-32090 · 67112-32091 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-32110 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-32110 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-32060 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-32060 |
| 67411 | Right front door window upper frame | 67411-32040 |
| 67412A | Left front door upper window frame | 67412-32040 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-32100 · 67491-33010 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-32100 · 67492-33010 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-30020 |
| 67601H | Right door trim panel fixing | 67771-32140 |
| 67602A | Left door trim panel fixing | 67771-32140 |
| 67831 | Right front door access hole cover | 67831-32080 · 67831-32100 · 67831-32130 |
| 67832 | Left front door access hole cover | 67832-32060 · 67832-32080 · 67832-32110 |
| 67846B | Rear door access hole auxiliary hole cover | 67845-32010 |
| 67861 | Right front door seal | 67861-32130 |
| 67862 | Left front door seal | 67862-32130 |
| 67867C | Right front door seal strip fixing | 67867-12150 · 67868-22020 |
| 67868C | Left front door seal strip fixing | 67867-12150 · 67868-22020 |
| 68101 | Right front door glass sub-assembly | 68101-32080 · 68101-32090 |
| 68102 | Left front door glass sub-assembly | 68102-32080 · 68102-32090 |
| 68141C | Right front door glass lift channel | 68141-32090 |
| 68151C | Left front door glass lift channel | 68151-32030 |
| 68170 | Front door glass inner sealing strip assembly | 68170-33020 · 68220-33020 |
| 68610 | Front door opening limiter assembly | 68610-32060 · 68610-33011 · 68620-32040 · 68620-33011 |
| 68621A | Right front door opening limiter cover | 68621-32010 |
| 68622 | Left front door opening limiter cover | 68622-32010 |
| 74293 | No. 1 front door armrest panel | 74293-32010 |
