Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

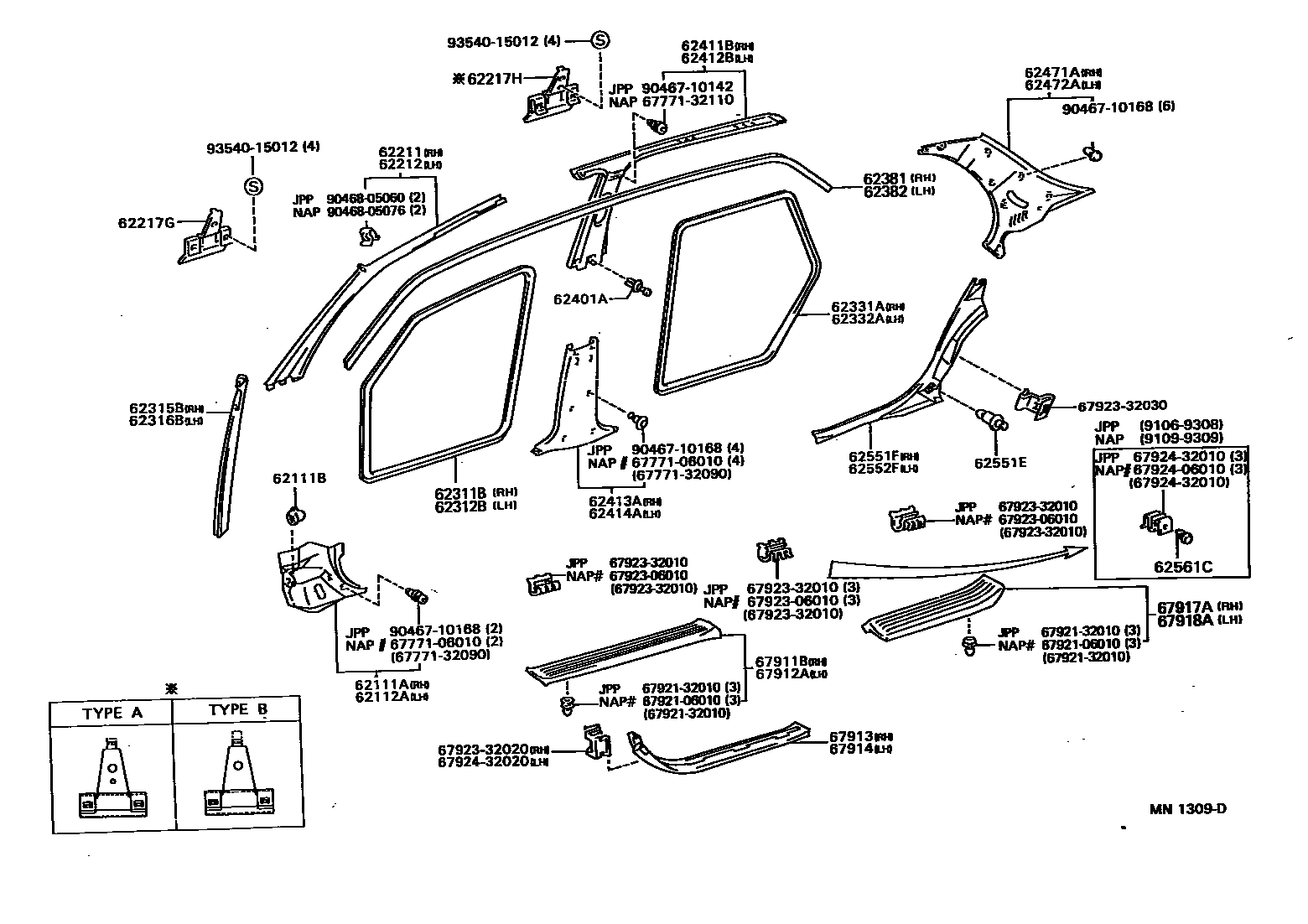

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-08161 |
| 62217G | Front pillar decorative plate clip | 62217-32030 |
| 62217H | Center pillar decorative plate clip | 62217-32030 · 62217-33020 |
| 62311B | Right front door opening waterproof tape | 62311-32071 · 62311-33020 |
| 62312B | Left front door opening waterproof tape | 62312-32041 · 62312-33020 |
| 62331A | Right rear door opening waterproof tape | 62331-32031 · 62331-33020 |
| 62332A | Left rear door opening waterproof tape | 62332-32021 · 62332-33020 |
| 62381 | Right front roof rail sealing strip | 62381-32040 |
| 62382 | Left front roof rail sealing strip | 62382-32040 |
| 62551E | Clips (for rear seat side trim panels) | 90467-07108 |
| 67911B | Right front door outer wear plate | 67911-32010 |
| 67912A | Left front door outer wear plate | 67912-32010 |
| 67917A | Right rear door wear plate | 67915-32010 |
| 67918A | Left rear door wear plate | 67916-32010 |
