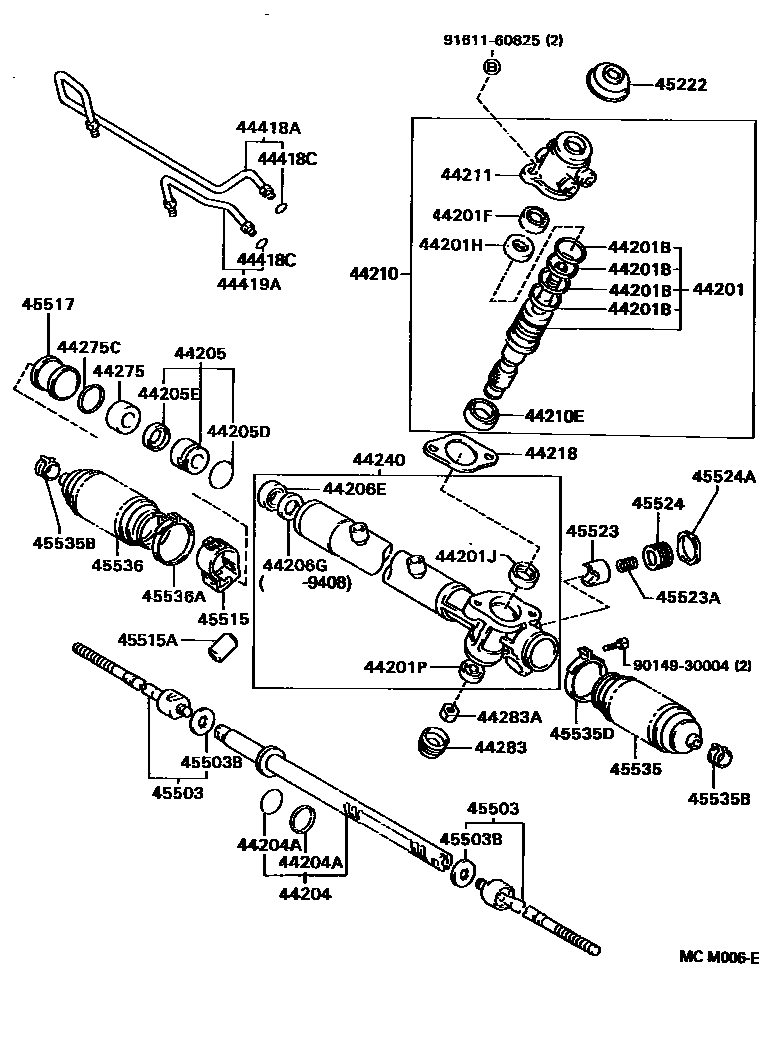

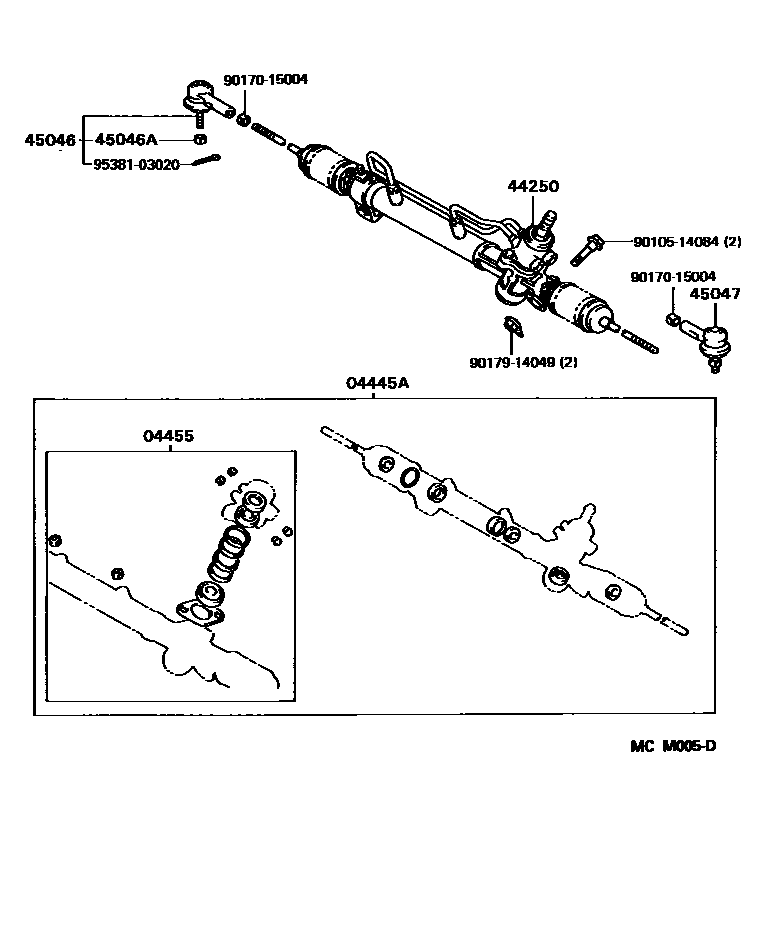

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-06012 · 04445-07010 · 04445-33010 · 04445-33011 · 04445-33012 · 04445-33030 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06011 · 04455-33020 |
| 44201 | Power steering control valve sub-assembly | 44201-33010 · 44201-33011 · 44201-33022 · 44201-33030 · 44201-33031 |
| 44201B | Spacer (for power steering control valve) | 90560-33003 |
| 44201F | Oil seal (for power steering control valve) | 90080-31016 · 90311-19005 |
| 44201H | Bearing (for upper power steering control valve) | 90080-36031 · 90365-19001 |
| 44201J | Bearing (for central power steering control valve) | 90080-36044 · 90364-25014 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12013 |
| 44204 | Power steering rack sub-assembly | 44204-06020 · 44204-33010 · 44204-33020 · 44204-33030 |
| 44204A | Ring (for steering rack piston) | 90080-30022 · 90080-56013 · 90301-36008 · 90562-39002 · 90562-40003 |
| 44205 | Cylinder end stopper sub-assembly | 44205-06010 · 44205-33010 |
| 44205D | O-ring (for power steering rack bushing) | 90080-30025 · 90301-36009 |
| 44205E | Oil seal (for power steering rack bushing) | 90080-31010 · 90311-27001 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31011 · 90080-31038 · 90311-27002 · 90311-27005 · 90311-27006 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90080-56024 · 90561-28003 |
| 44210 | Power steering control valve assembly | 44210-06011 · 44210-33010 · 44210-33011 · 44210-33022 · 44210-33030 · 44210-33031 |
| 44210E | Oil seal (for power steering control valve) | 90080-31015 · 90311-26003 |
| 44211 | control valve housing | 44211-06010 · 44211-33010 |
| 44218 | valve housing gasket | 44218-06010 · 44218-12020 |
| 44240 | Power steering rack housing assembly | 44240-07010 · 44240-07020 · 44240-33010 · 44240-33011 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06022 · 44250-06023 · 44250-33011 · 44250-33012 · 44250-33013 · 44250-33014 · 44250-33031 · 44250-33032 · 44250-33033 · 44250-33034 · 44250-33041 · 44250-33042 · 44250-33043 · 44250-33132 · 44250-33133 |
| 44275 | Cylinder end stop | 44275-06010 · 44275-33010 · 44275-33011 |
| 44275C | Coil (for cylinder end stop) | 90080-58079 · 90580-20238 |
| 44283 | Rack housing cover | 44283-06010 · 44283-33010 |
| 44283A | Nut (for rack housing cover) | 90080-17078 · 90179-10048 |
| 44418A | Right steering pressure oil pipe | 44418-06010 · 44418-33010 |
| 44418C | O-ring (for steering pressure oil pipe) | 90080-30023 · 90301-03001 |
| 44419A | Left steering pressure oil pipe | 44419-06010 · 44419-33010 |
| 45046 | Right tie rod end sub-assembly | 45046-09020 · 45046-29255 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09020 · 45046-29255 |
| 45222 | Steering gear dust cover | 45222-06010 · 45222-33010 |
| 45503 | Steering rack end sub-assembly | 45503-09040 · 45503-29355 · 45503-39055 · 45503-39135 |
| 45503B | Jaw washer (for steering rack end) | 90080-21005 · 90214-14002 · 90214-14007 |
| 45515 | No. 2 steering rack housing bracket | 45515-06011 · 45515-33011 |
| 45515A | Steering rack housing bracket collar | 90080-38062 · 90386-15004 |
| 45517 | No. 2 steering rack housing seal | 45517-06010 · 45517-33010 · 45517-33021 |
| 45523 | Rack guide block (for steering gear) | 45504-06010 · 45504-33010 |
| 45523A | Spring (for steering gear rack guide block) | 90080-50116 · 90501-23075 · 90501-26075 |
| 45524 | Steering rack guide block spring cover | 45524-06010 · 45524-33010 |
| 45524A | Nut (for steering rack guide spring cover) | 44142-06010 · 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-06010 · 45535-06020 · 45535-33010 · 45535-33020 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46153 · 90467-19017 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90080-46152 · 90461-08688 |
| 45536 | No. 2 steering rack dust cover | 45535-06010 · 45535-06020 · 45535-33010 · 45535-33020 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46152 · 90461-08688 |
