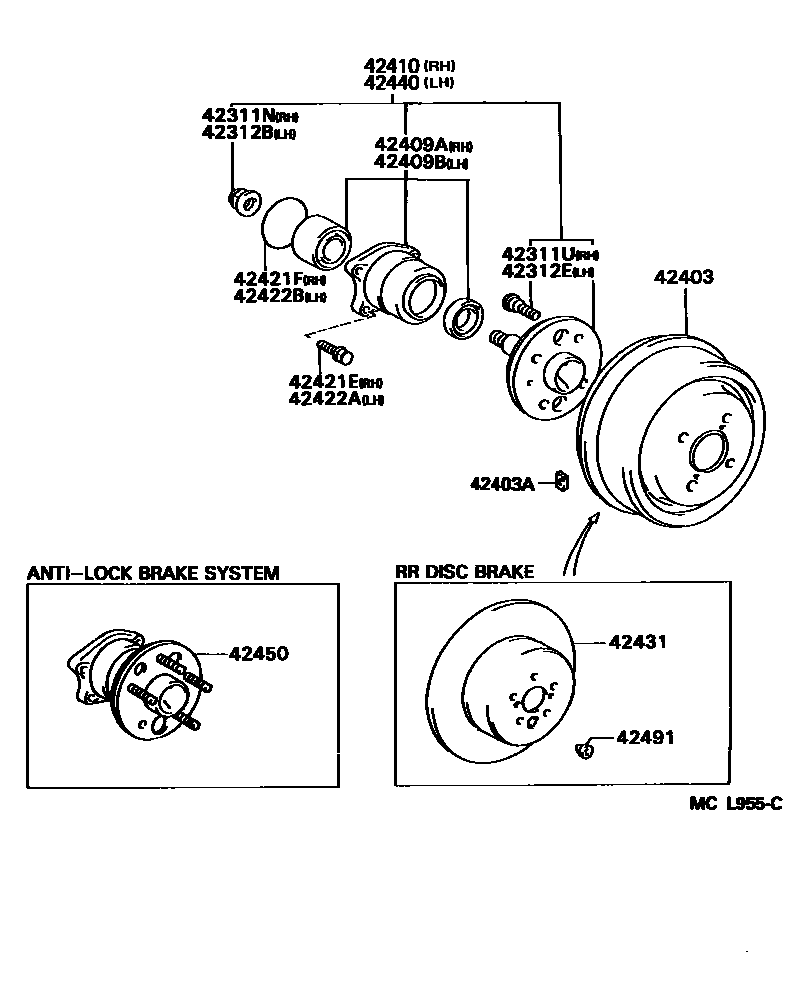

Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102
Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311N | Nut (for rear axle right half shaft) | 90179-20017 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 |
| 42312B | Nut (for rear axle left half shaft) | 90179-20017 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 |
| 42403 | Rear brake drum sub-assembly | 42431-33020 |
| 42403A | Balance weight (for rear brake drum) | 90937-01287 · 90937-01288 · 90937-01289 |
| 42409A | Rear axle right bearing sub-assembly | 42409-33010 · 42409-33020 |
| 42409B | Rear axle left bearing sub-assembly | 42409-33010 · 42409-33020 |
| 42410 | Rear axle right hub and bearing assembly | 42410-33010 · 42410-33020 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-10124 |
| 42421F | O-ring (for rear axle right bearing housing) | 90301-63003 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-10124 |
| 42422B | O-ring (for rear axle left bearing housing) | 90301-63003 |
| 42431 | rear brake disc | 42431-33010 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-33010 · 42410-33020 |
| 42450 | Rear axle hub and bearing assembly | 42450-33010 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-14010 · 47491-22020 |
