Toyota CAMRY Exhaust Pipe — Figure 1702

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 5 images and 26 PNC and OE references.

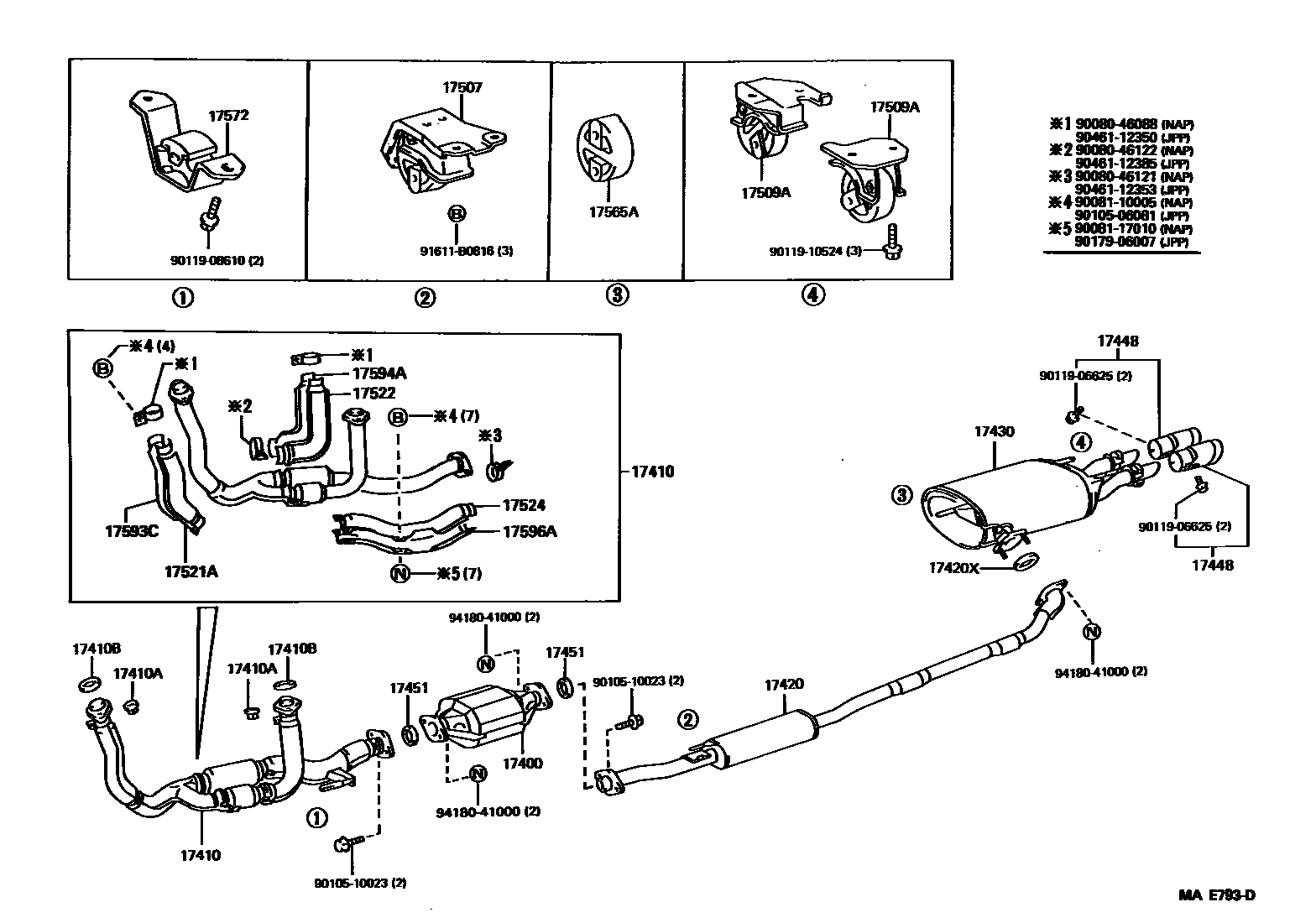

Toyota CAMRY Exhaust Pipe EPC diagram — MAE793D — Exhaust Pipe — MAE793D (199106 – 199308)

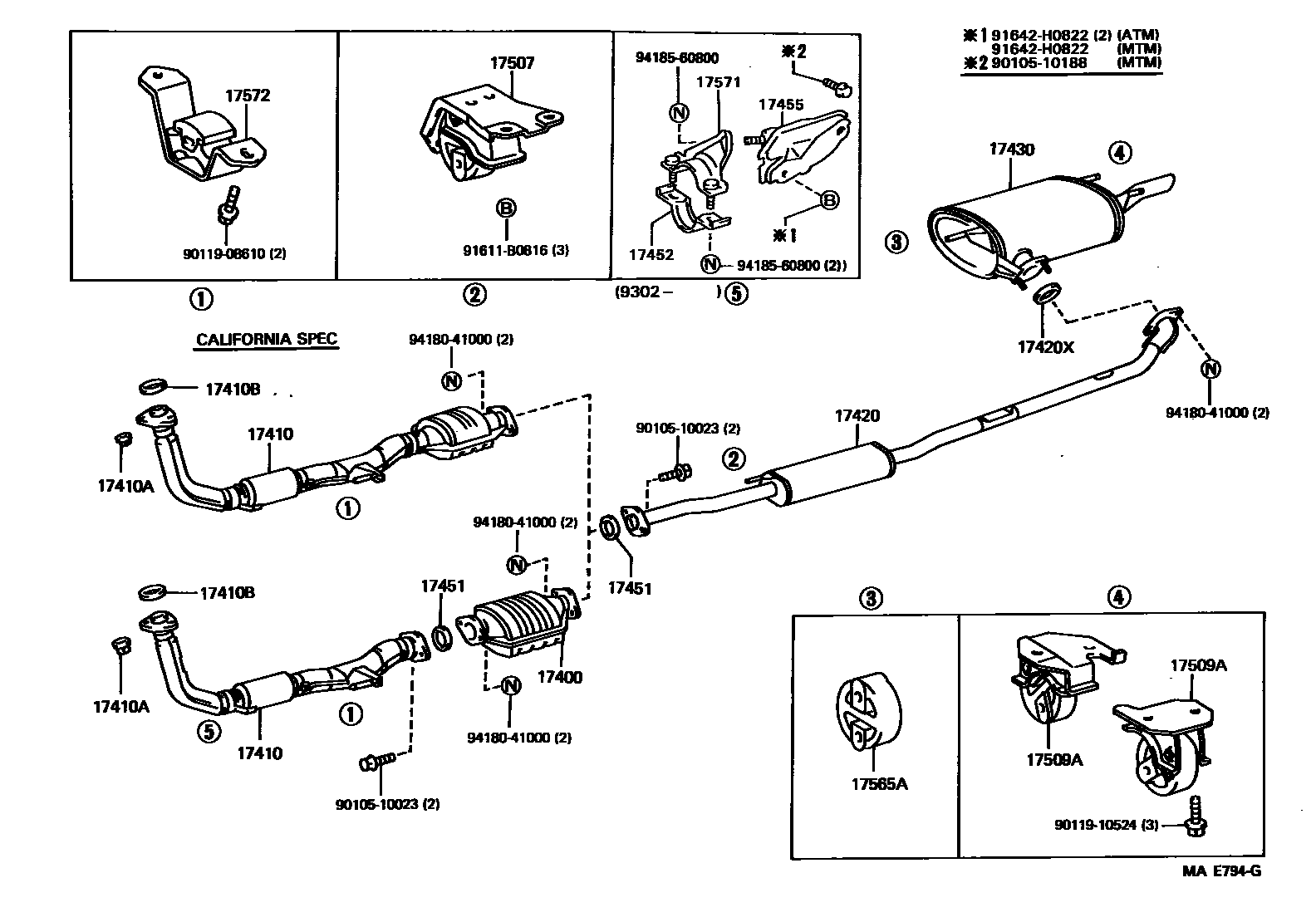

Toyota CAMRY Exhaust Pipe EPC diagram — MAE794G — Exhaust Pipe — MAE794G (199106 – 199308)

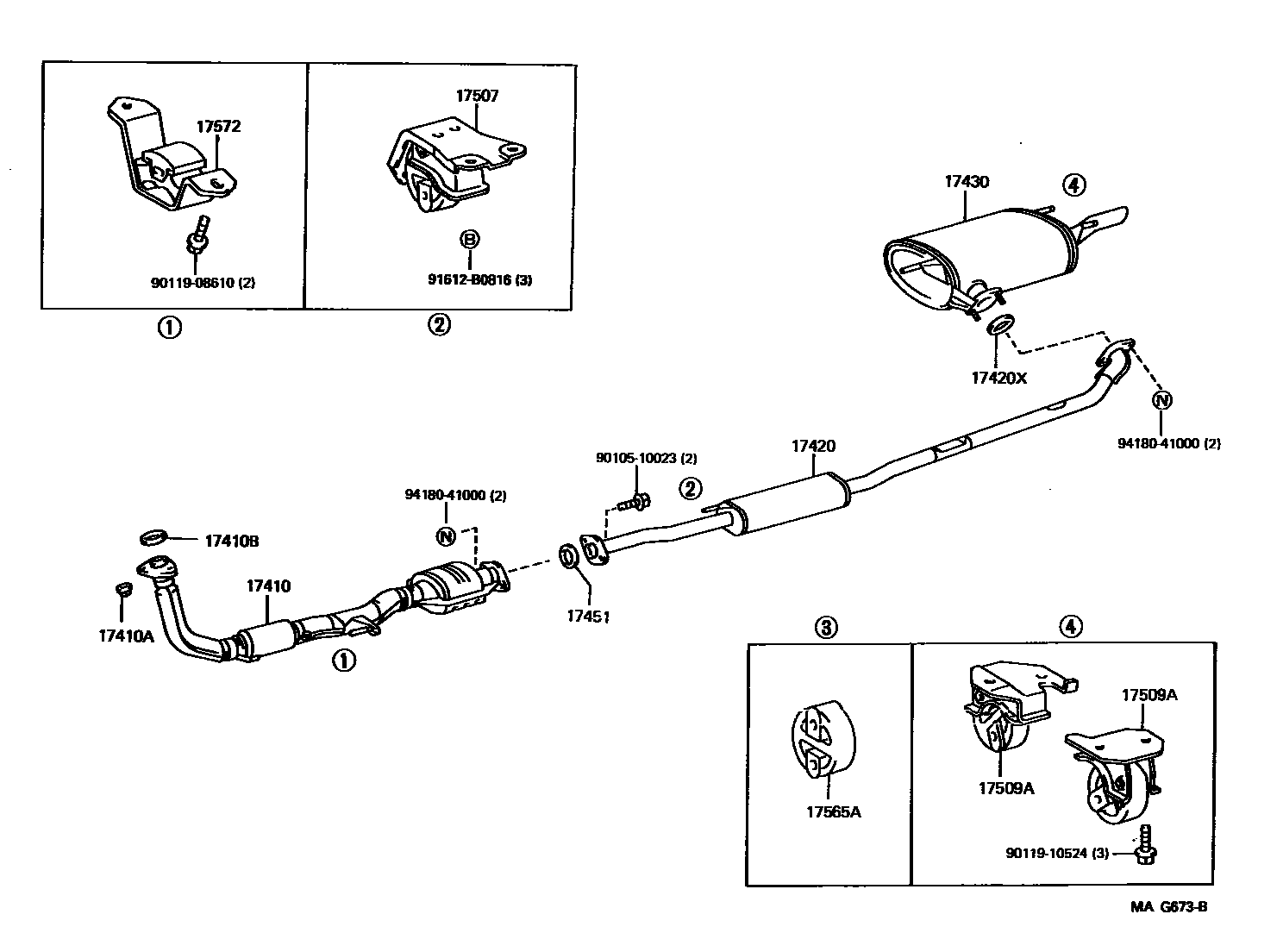

Toyota CAMRY Exhaust Pipe EPC diagram — MAG673B — Exhaust Pipe — MAG673B (199308 – 999999)

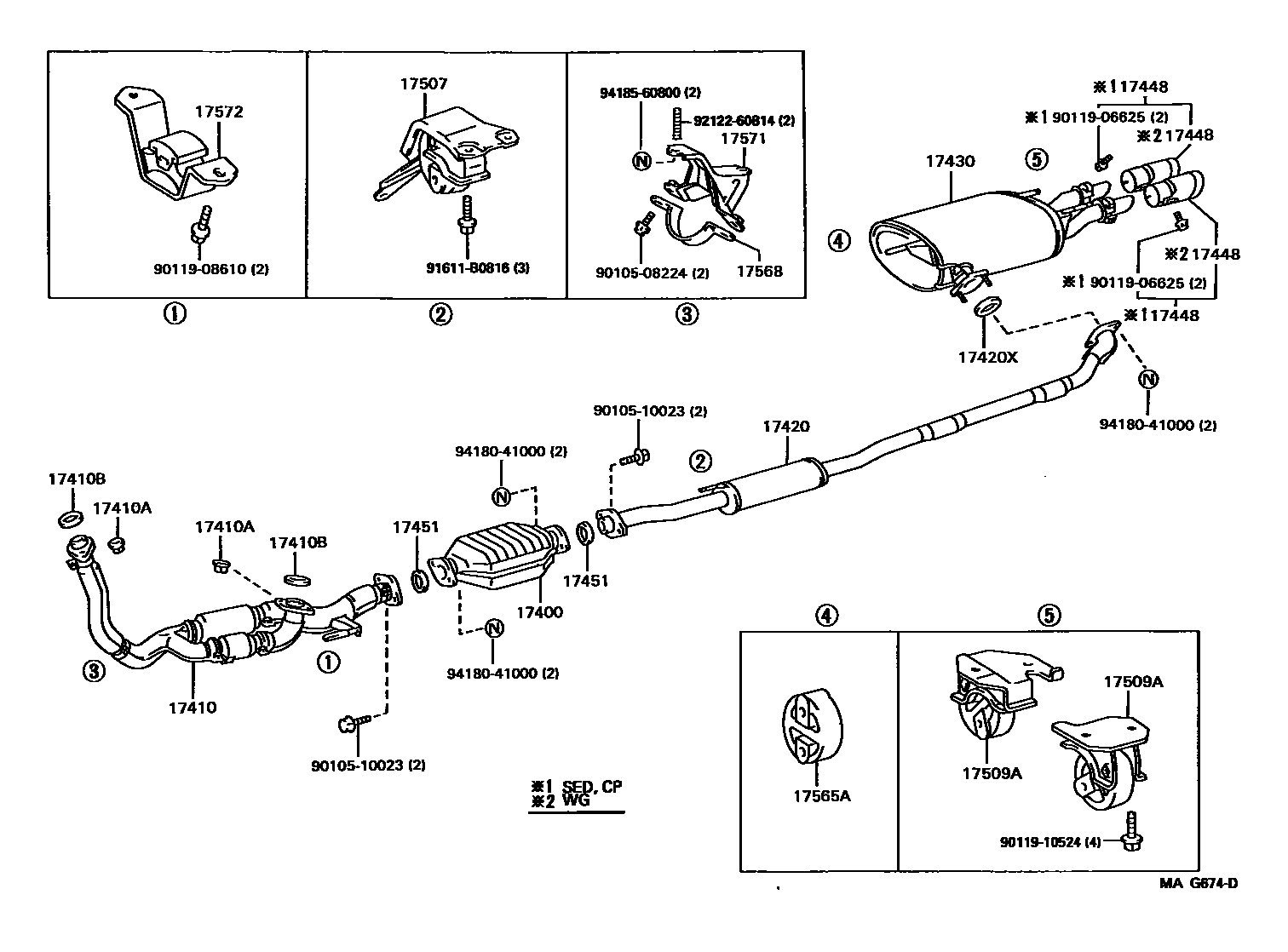

Toyota CAMRY Exhaust Pipe EPC diagram — MAG674D — Exhaust Pipe — MAG674D (199308 – 199408)

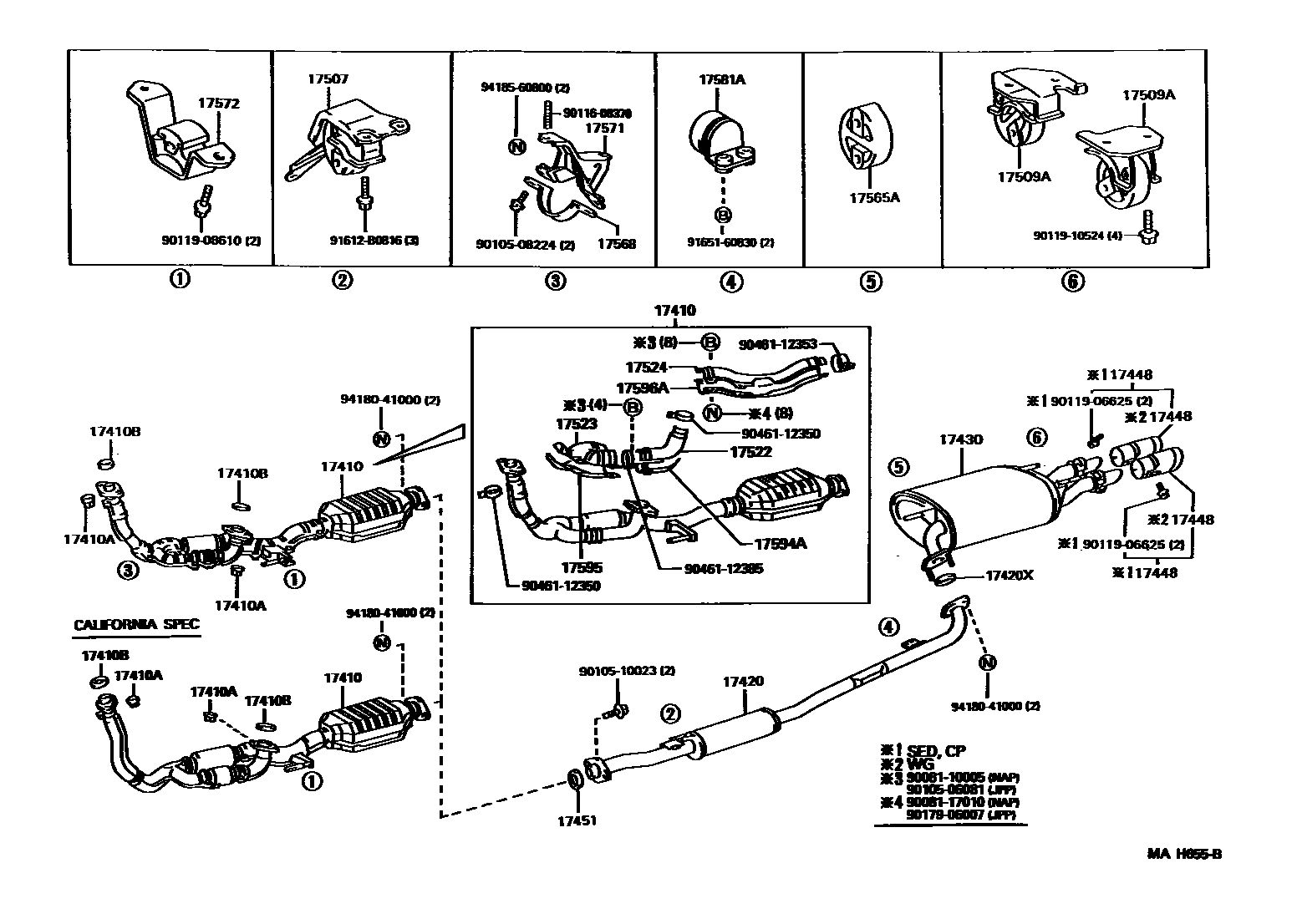

Toyota CAMRY Exhaust Pipe EPC diagram — MAH655B — Exhaust Pipe — MAH655B (199408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	18450-03030 · 18450-62080 · 18450-76060
17410	Front exhaust pipe assembly	17410-20020 · 17410-20030 · 17410-20040 · 17410-62060 · 17410-62061 · 17410-74860 · 17410-74870 · 17410-7A170 · 17410-7A180
17410A	Exhaust pipe fixing studs and nuts	90179-10070
17410B	Exhaust pipe gasket	90917-06042 · 90917-06045 · 90917-06065 · 90917-06066
17420	Central exhaust pipe assembly	17420-0A030 · 17420-20020 · 17420-20030 · 17420-62080 · 17420-62090 · 17420-74610 · 17420-74620
17420X	Center exhaust pipe liner	90917-06046 · 90917-06073
17430	Exhaust tailpipe assembly	17430-20020 · 17430-20030 · 17430-62090 · 17430-62091 · 17430-7A140 · 17430-7A141 · 17430-7A460 · 17430-7A580
17448	Exhaust pipe tail throat	17448-79035 · 17448-79036
17451	Exhaust pipe gasket	90917-06043 · 90917-06045 · 90917-06054
17452	Exhaust pipe clamp	17452-74080
17455	Exhaust pipe bracket	17455-74080
17507	No. 2 exhaust pipe bracket sub-assembly	17507-20010 · 17507-20020 · 17507-62020 · 17507-62030 · 17507-62050 · 17507-74090
17509A	No. 4 exhaust pipe bracket sub-assembly	17509-62020 · 17509-62030 · 17509-74170
17521A	No. 1 upper exhaust pipe protection device	17521-62040
17522	No. 2 upper exhaust pipe protection device	17522-20010 · 17522-62050
17523	No. 3 upper exhaust pipe protection device	17523-20010
17524	No. 4 upper exhaust pipe protection device	17524-62020
17565A	No. 4 exhaust pipe lifting lug	17565-74280
17568	Exhaust pipe bracket stay	17568-20020
17571	No. 1 exhaust pipe bracket	17571-20040 · 17571-74370
17572	No. 1 exhaust pipe bracket	17572-20020 · 17572-62020 · 17572-62040
17581A	Exhaust pipe damper	17581-20010
17593C	No. 1 lower exhaust pipe protection device	17593-62040
17594A	No. 2 lower exhaust pipe protection device	17594-20010 · 17594-62050
17595	No. 3 lower exhaust pipe protection device	17595-20010
17596A	No. 4 lower exhaust pipe protection device	17596-62020
