Toyota CAMRY Engine Mounting — Figure 1107

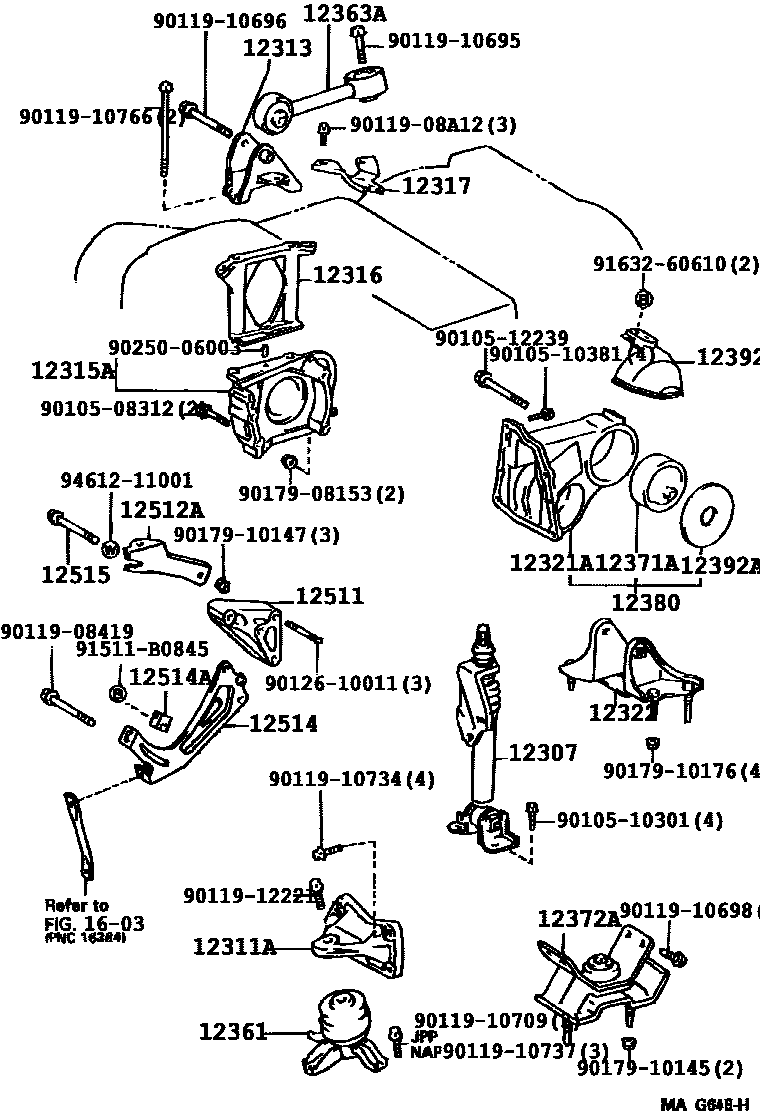

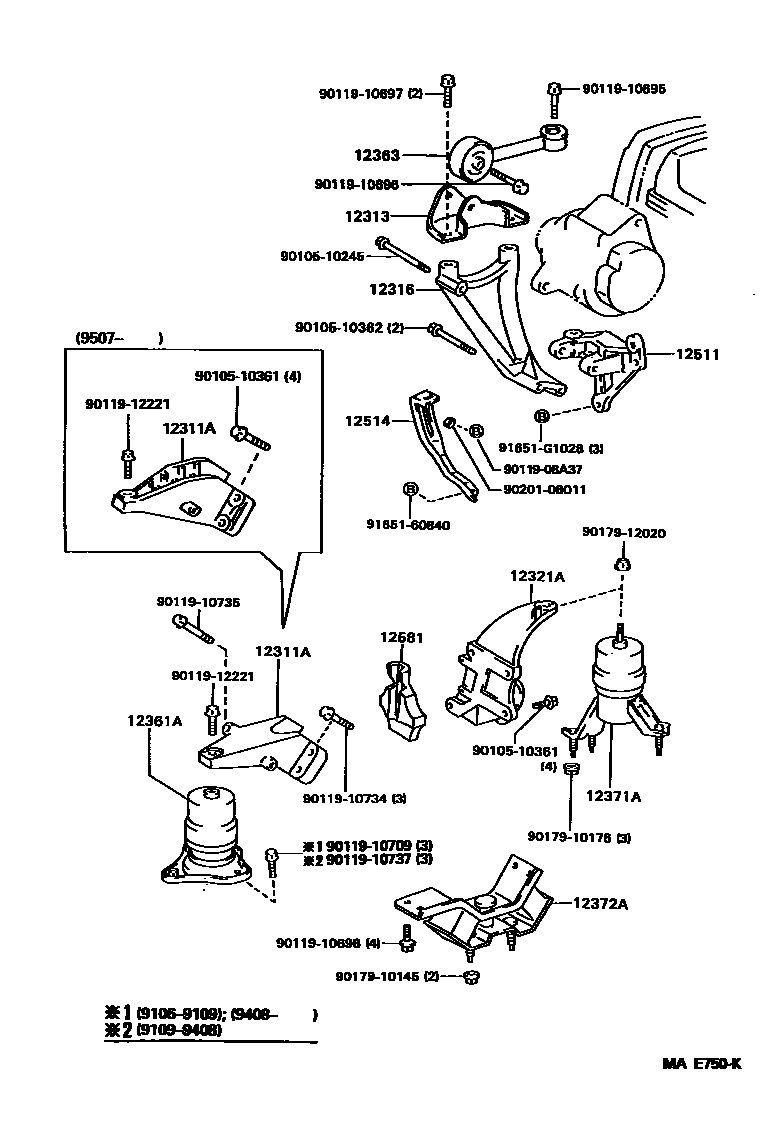

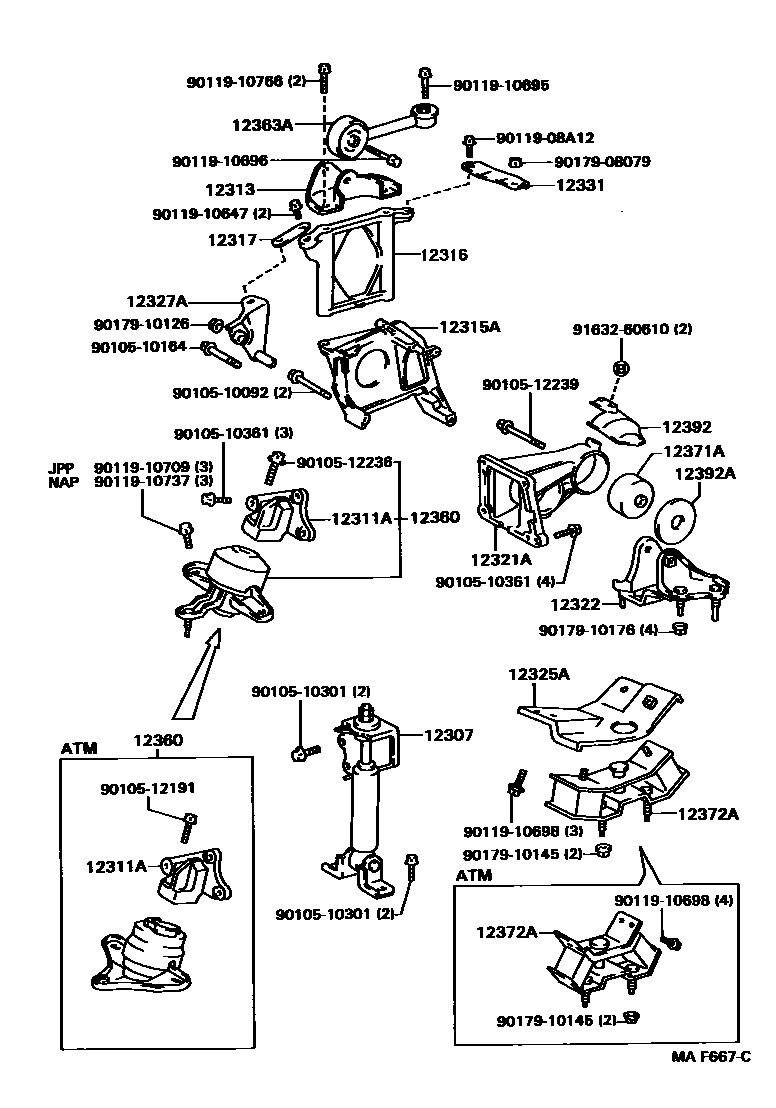

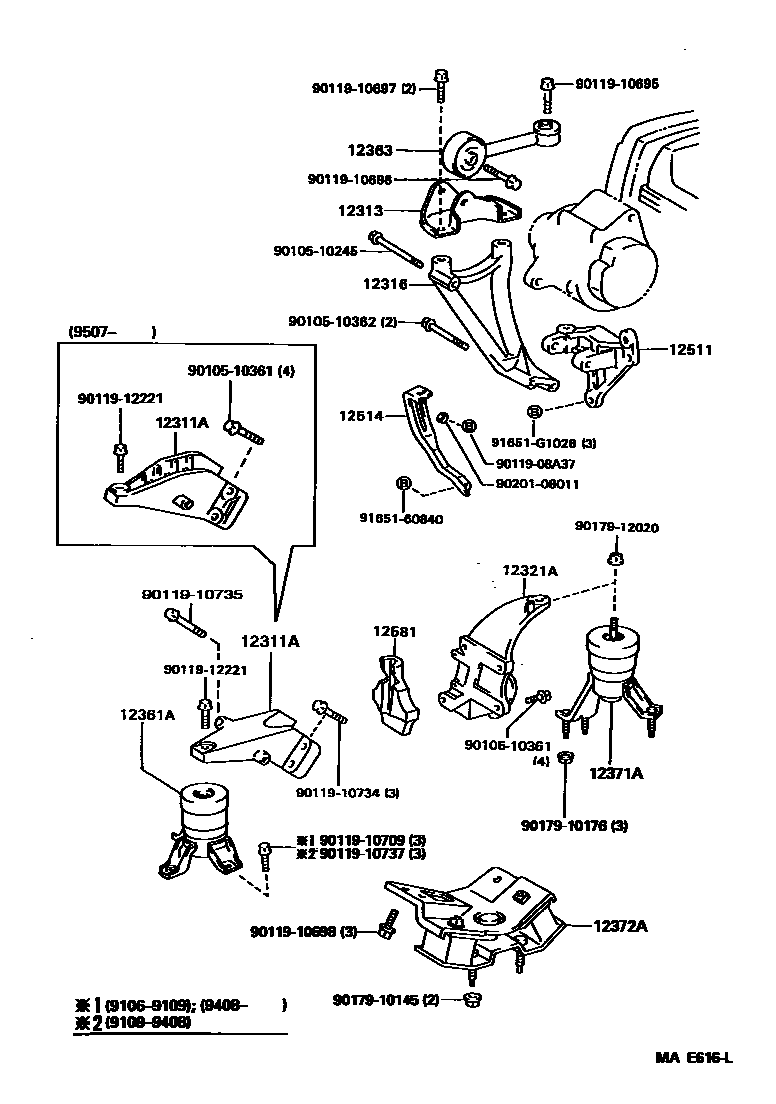

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12307 | Engine mount damper sub-assembly | 12307-62010 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-20020 · 12311-20030 · 12311-62020 · 12311-74130 · 12311-74210 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-20010 · 12313-62020 · 12313-74040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-20020 · 12315-62030 · 12315-62031 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-62020 · 12316-74030 |
| 12317 | Engine right mounting bracket | 12317-20010 · 12317-62030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-20020 · 12321-62060 · 12321-62070 · 12321-74250 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-20020 · 12322-62010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-62030 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-62030 · 12327-62031 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-62010 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-62010 · 12360-62020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-20020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-74241 · 12361-74251 · 12361-74252 |
| 12363 | Engine center mount vibration isolation pad | 12363-74110 · 12363-74120 |
| 12363A | Engine movement control lever | 12363-62010 · 12363-62020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-62050 · 12371-62060 · 12371-74301 · 12371-74311 · 12371-74312 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-03040 · 12372-62070 · 12372-62080 · 12372-74370 · 12372-74380 |
| 12380 | Engine rear mount vibration isolation pad assembly | 12380-20010 |
| 12392 | Engine left front mounting heat insulation pad | 12392-62010 |
| 12392A | Engine rear mounting heat insulation pad | 12392-62020 · 12392-62030 |
| 12511 | No. 1 generator bracket | 12511-20020 · 12511-74100 |
| 12512A | No. 2 generator bracket | 12512-20010 |
| 12514 | Generator belt adjustment lever | 12514-20010 · 12514-74011 · 12514-74050 |
| 12514A | Fan belt adjustment slider | 16385-20010 |
| 12515 | Generator through bolts | 12515-20010 |
| 12581 | No. 1 cylinder block vibration isolation pad | 12581-74010 |
