Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

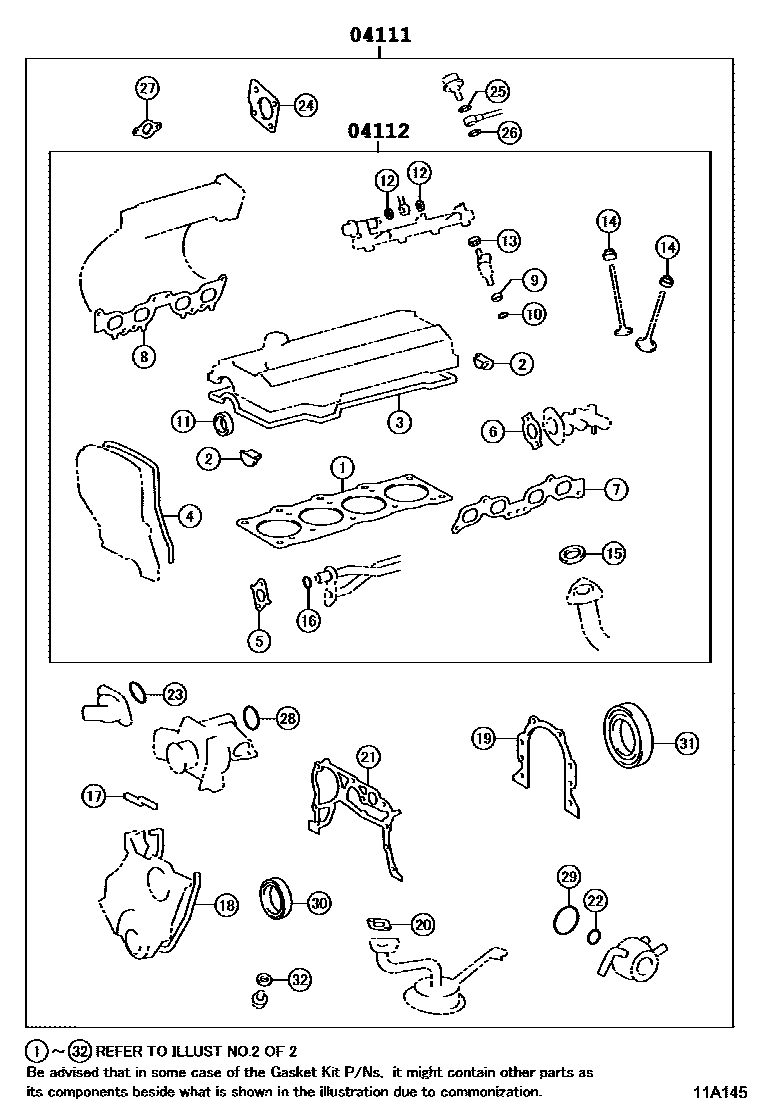

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A145
Engine Overhaul Gasket Kit — 11A145 (199106 – 199508)

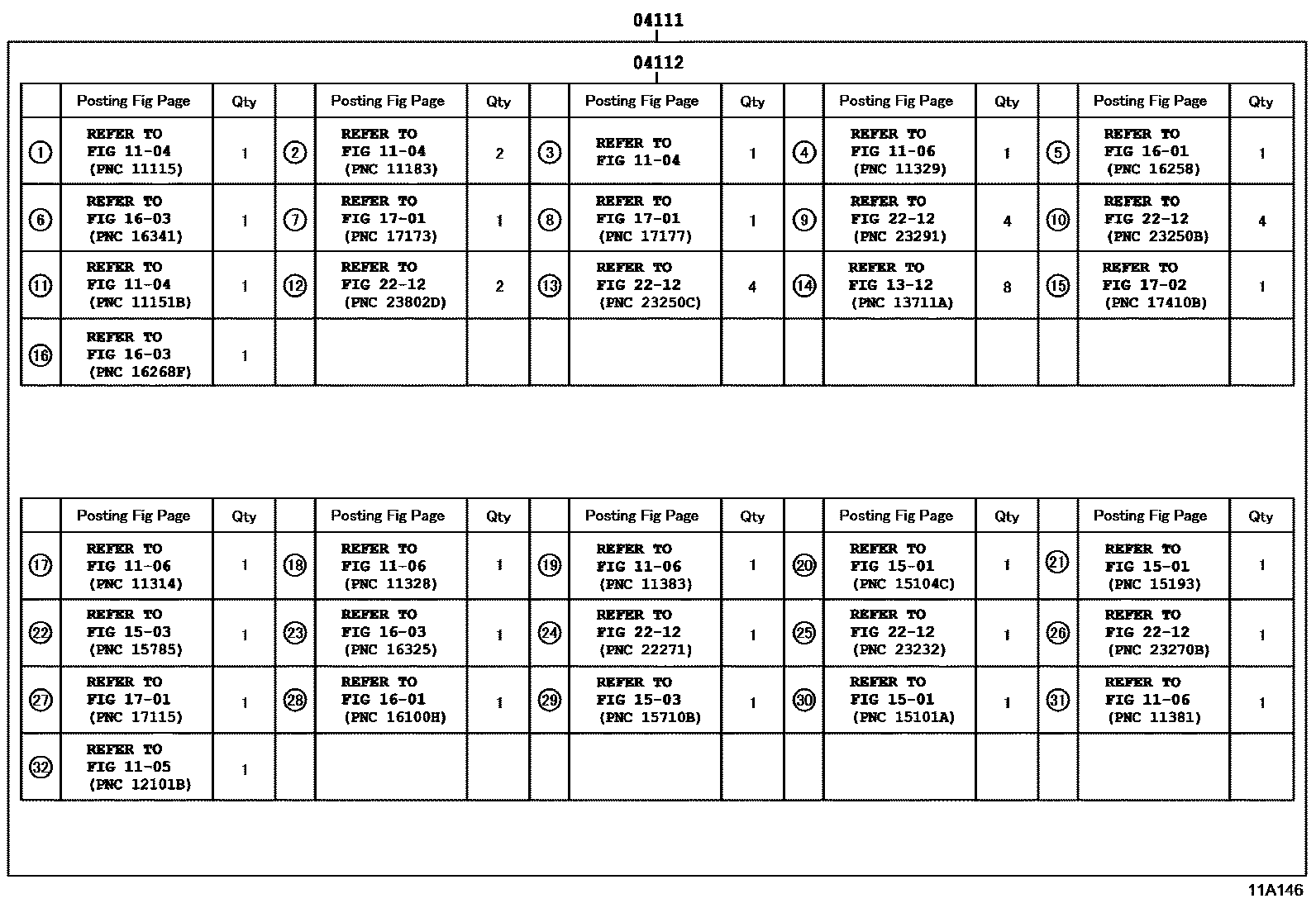

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A146
Engine Overhaul Gasket Kit — 11A146 (199508 – 999999)

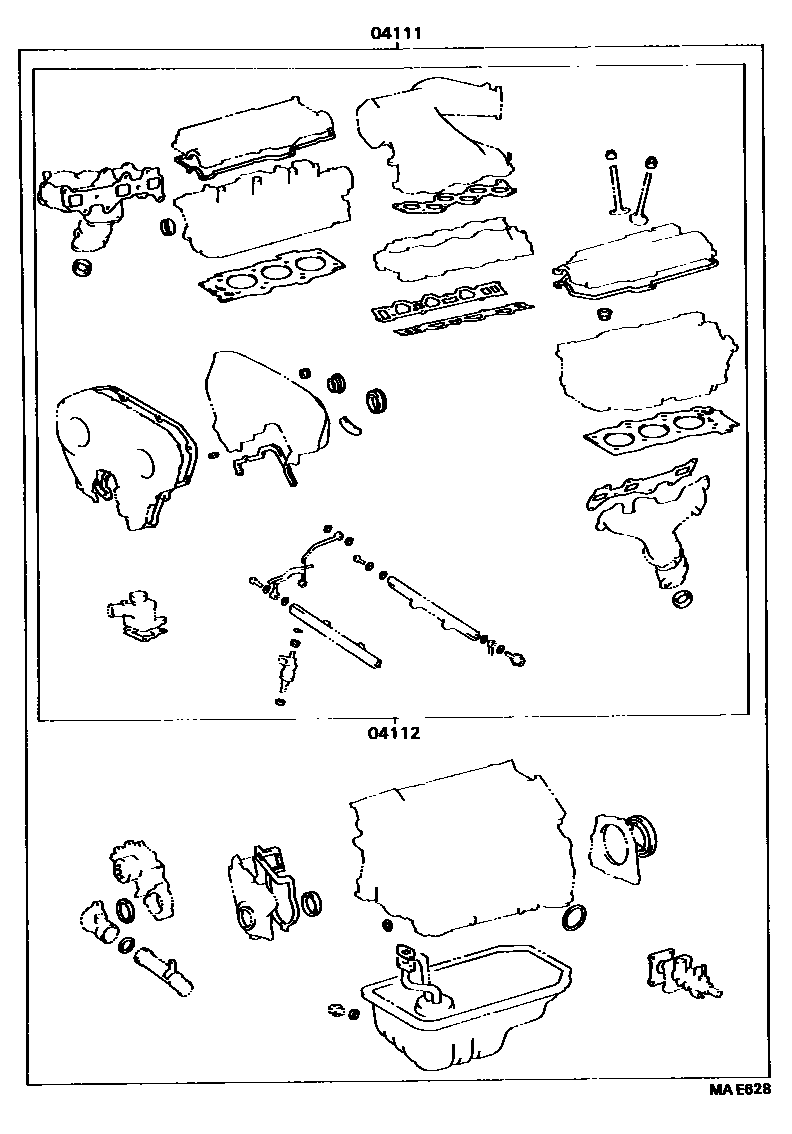

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAE628
Engine Overhaul Gasket Kit — MAE628 (199106 – 199308)

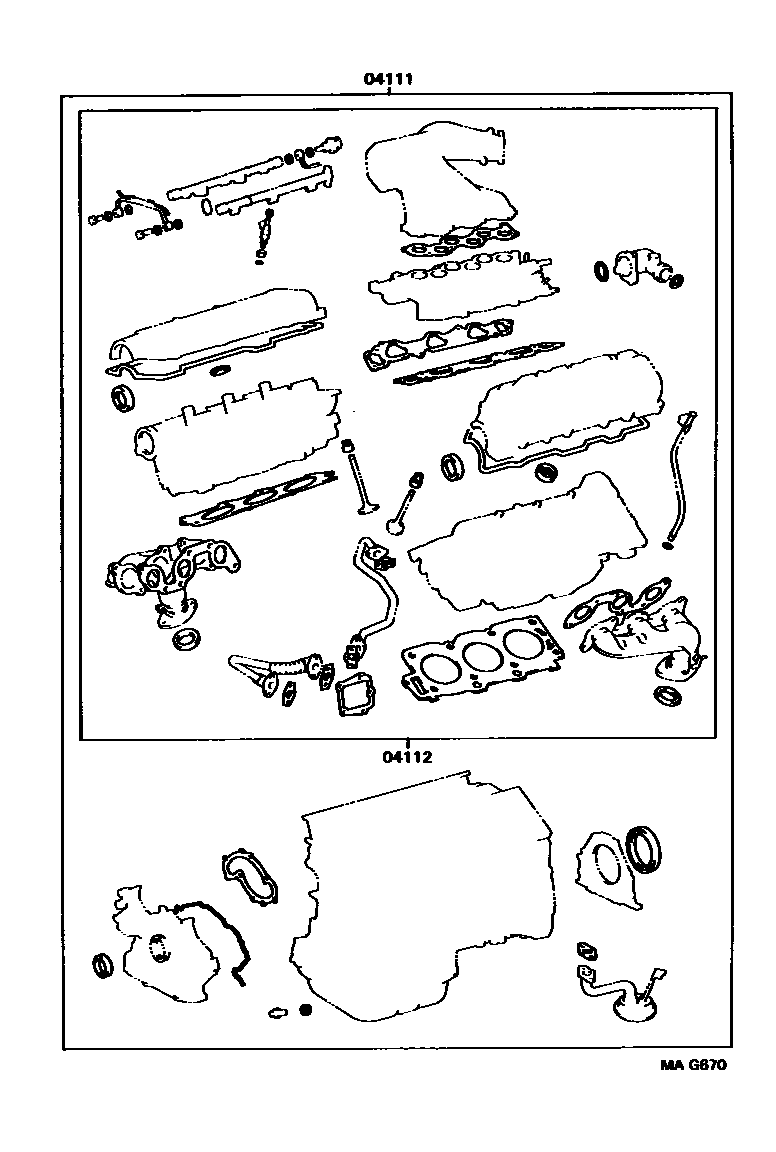

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAG670
Engine Overhaul Gasket Kit — MAG670 (199308 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-20040 · 04111-62050 · 04111-74300 · 04111-74301 · 04111-74620
04112Engine valve grinding pad assembly04112-20030 · 04112-62040 · 04112-74290 · 04112-74580
