Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717

Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 3 PNC and OE references.

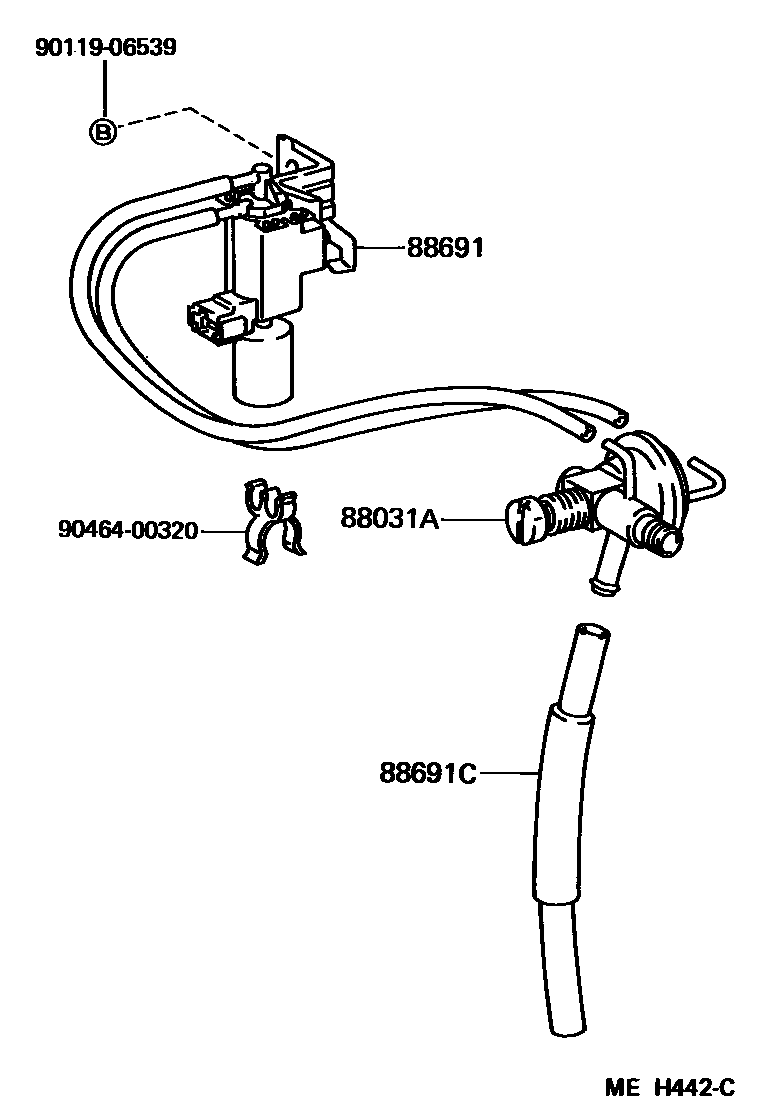

Toyota CAMRY 暖风和空调系统 - 真空管 EPC diagram — MEH442C
暖风和空调系统 - 真空管 — MEH442C (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
88031AIdle speed lift actuator diaphragm sub-assembly88606-32010
88691Solenoid valve (for idle speed lifting device)88690-32280
88691CVacuum hose No. 1 (for idle lift)88689-32050
