Toyota CAMRY 后视镜 — Figure 8701

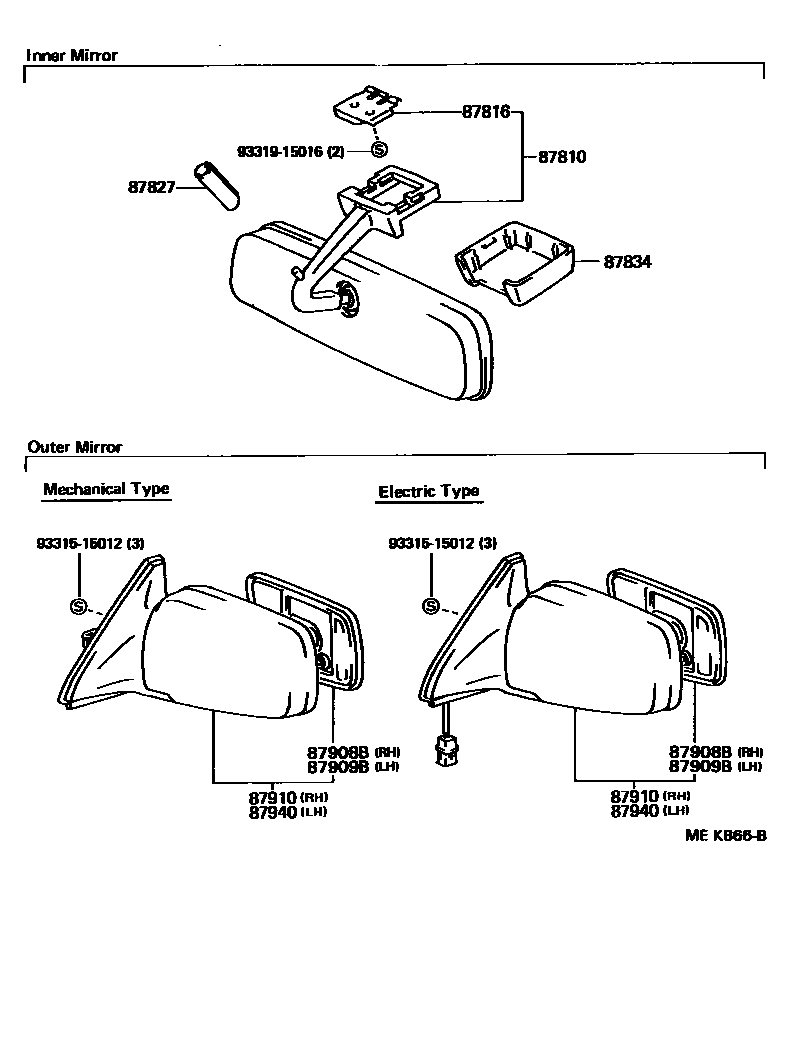

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-87003 · 87828-87005 |
| 87908B | Right rearview mirror sub-assembly | 87931-32370 |
| 87909B | Left rearview mirror sub-assembly | 87961-32400 |
| 87910 | Right exterior rearview mirror assembly | 87910-32211 |
| 87940 | Left exterior rearview mirror assembly | 87940-32201 · 87940-32221 |
