Toyota CAMRY 后刮水器 — Figure 8502

Toyota CAMRY EPC diagram 8502, 后刮水器, with 1 images and 9 PNC and OE references.

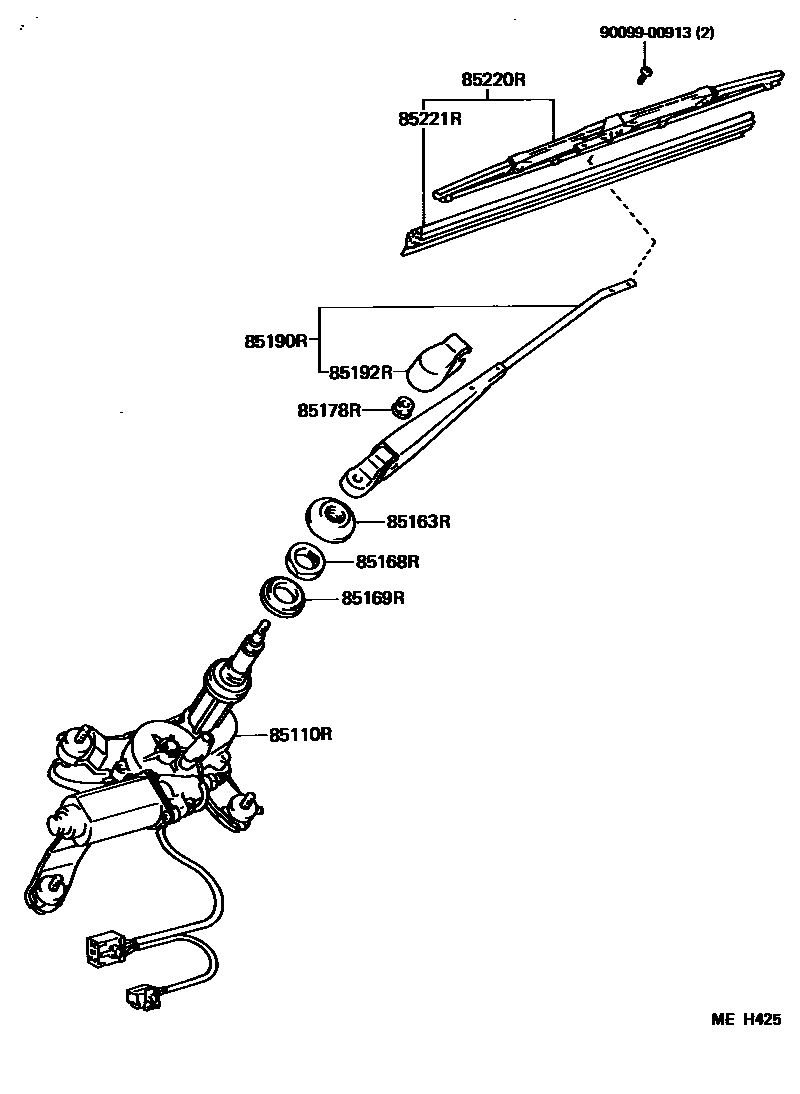

Toyota CAMRY 后刮水器 EPC diagram — MEH425
后刮水器 — MEH425 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110RRear wiper motor assembly85110-32160 · 85110-32161
85163RNo. 1 rear wiper pivot seal85134-32260 · 85134-32261
85168RNo. 1 rear wiper link pivot nut90099-05157
85169RNo. 1 rear wiper link pivot washer85179-32260 · 85179-32261
85178RNut (for securing rear wiper arm)90179-06158
85190RRear wiper arm assembly85190-32210 · 85190-32211
85192RRear wiper arm cover85192-13060
85220RRear wiper blade assembly85220-22660 · 85220-22661
85221RRear wiper blade85221-10060
