Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

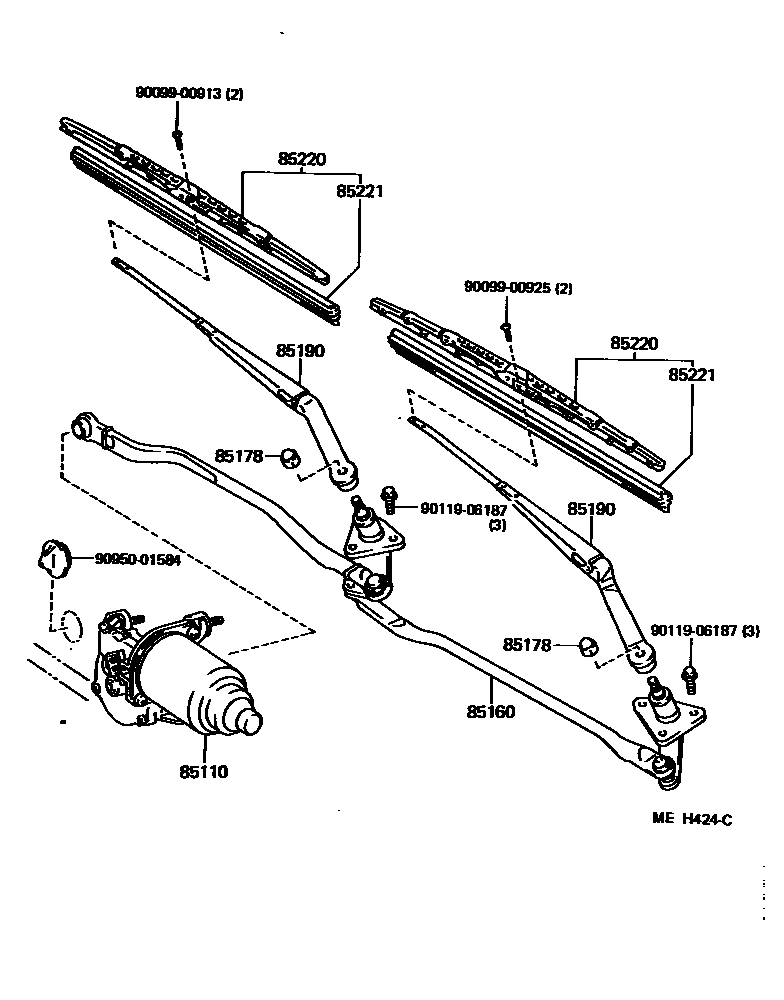

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-32242 |
| 85160 | Windshield wiper connecting rod assembly | 85160-32130 |
| 85178 | Nut (for securing front wiper arm) | 90176-08040 |
| 85190 | Windshield wiper arm assembly | 85190-32281 · 85210-32211 |
| 85220 | Windshield wiper blade assembly | 85212-32250 · 85220-16880 · 85220-32860 |
| 85221 | Windshield wiper blade | 85221-30100 · 85221-32050 |
