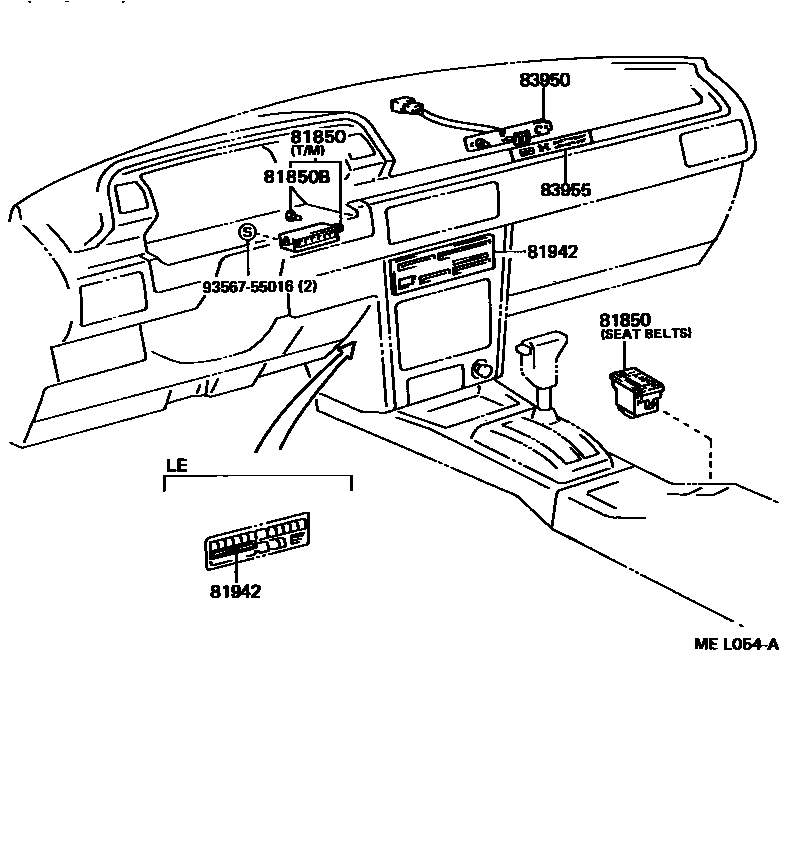

Toyota CAMRY indicator light — Figure 8302
Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850 | Indicator light assembly | 81850-22252 · 81850-32130 · 81850-32140 · 81850-32170 |
| 81850B | pilot light bulb | 84999-20010 · 84999-20090 · 84999-20100 · 84999-50180 · 84999-50190 |
| 81942 | Heater control nameplate | 81942-32041 · 81942-32060 |
| 83950 | Warning light assembly | 83950-32010 |
| 83955 | warning light shade | 83955-32030 · 83955-32060 · 83955-32061 |
